1ef8
CRYSTAL STRUCTURE OF METHYLMALONYL COA DECARBOXYLASE
SAXS Profile

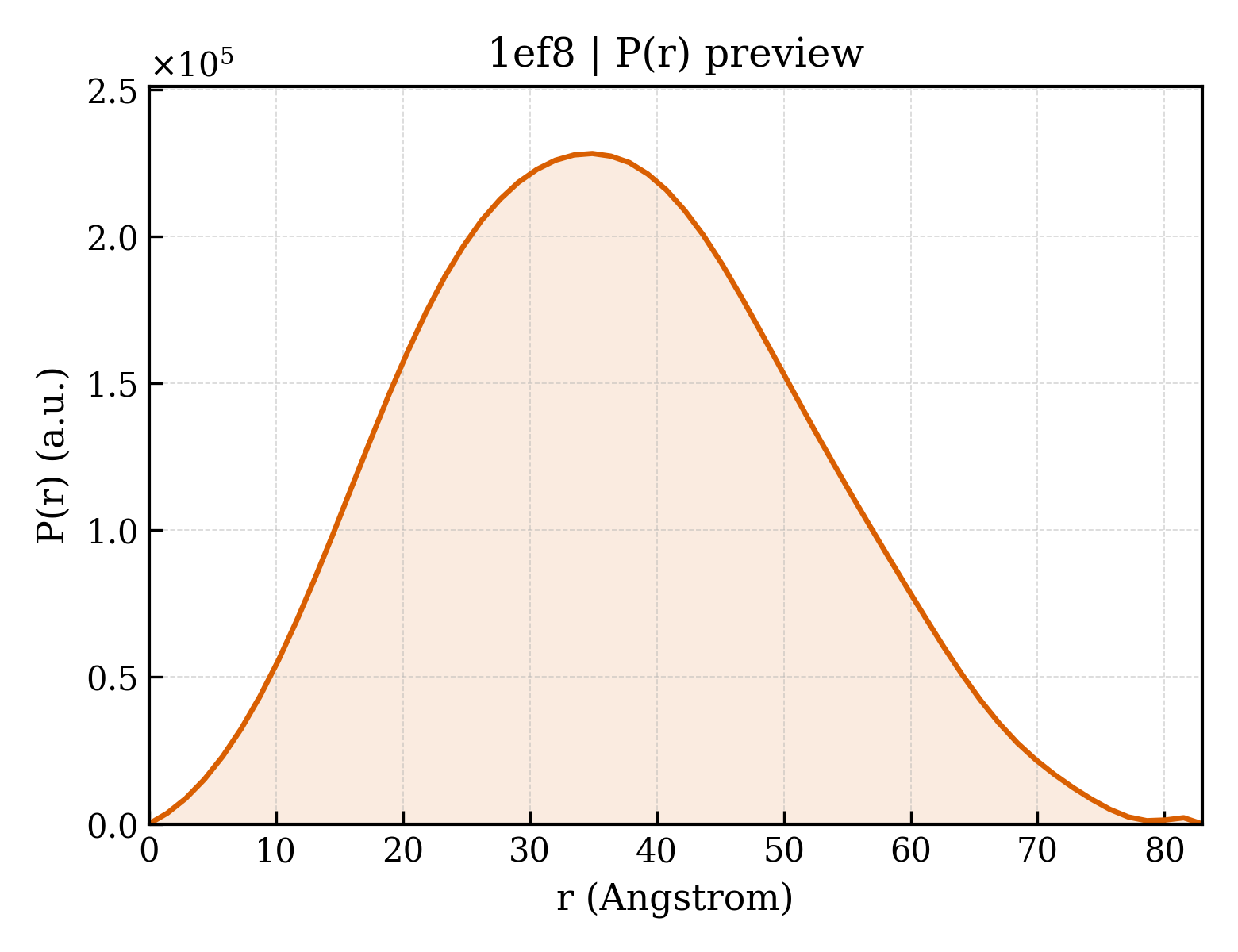

P(r) Distribution
1. Structure Basics
| entry_id | 1ef8 |
| deposition_date | 2000-02-07 |
| title | CRYSTAL STRUCTURE OF METHYLMALONYL COA DECARBOXYLASE |
| keywords | methylmalonyl coa, decarboxylase, LYASE; LYASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 27.88 Å |
| rg_electron | 26.58 Å |
| i0 | 113930000.00 |
| molecular_weight | 84964.0 kDa |
| excluded_volume | 106880 ų |
| envelope_volume | 126220 ų |
| shell_volume | 38027 ų |
| envelope_diameter | 86.9 Å |
| shell_rg | 35.33 Å |
| envelope_rg | 26.70 Å |
| shape_rg | 26.59 Å |
| total_rg | 27.44 Å |
| total_atoms | 5967 |
| n_residues | 759 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 83.0 Å |
| rg_real | 27.71 Å |
| rg_real_error | 0.43 Å |
| i0_real | 1.1390e+08 |
| i0_real_error | 1.5870e+06 |
| rg_reciprocal | 27.77 Å |
| i0_reciprocal | 113900000.0000 |
| total_estimate | 0.9060 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 34.9 Å |
| skewness | 0.175 |
| kurtosis | -0.496 |
| angular_range | — – 0.2850 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 31020000.0000 |
| n_real_points | 58 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.962; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.902 |
