1efq
Q38D mutant of LEN
SAXS Profile

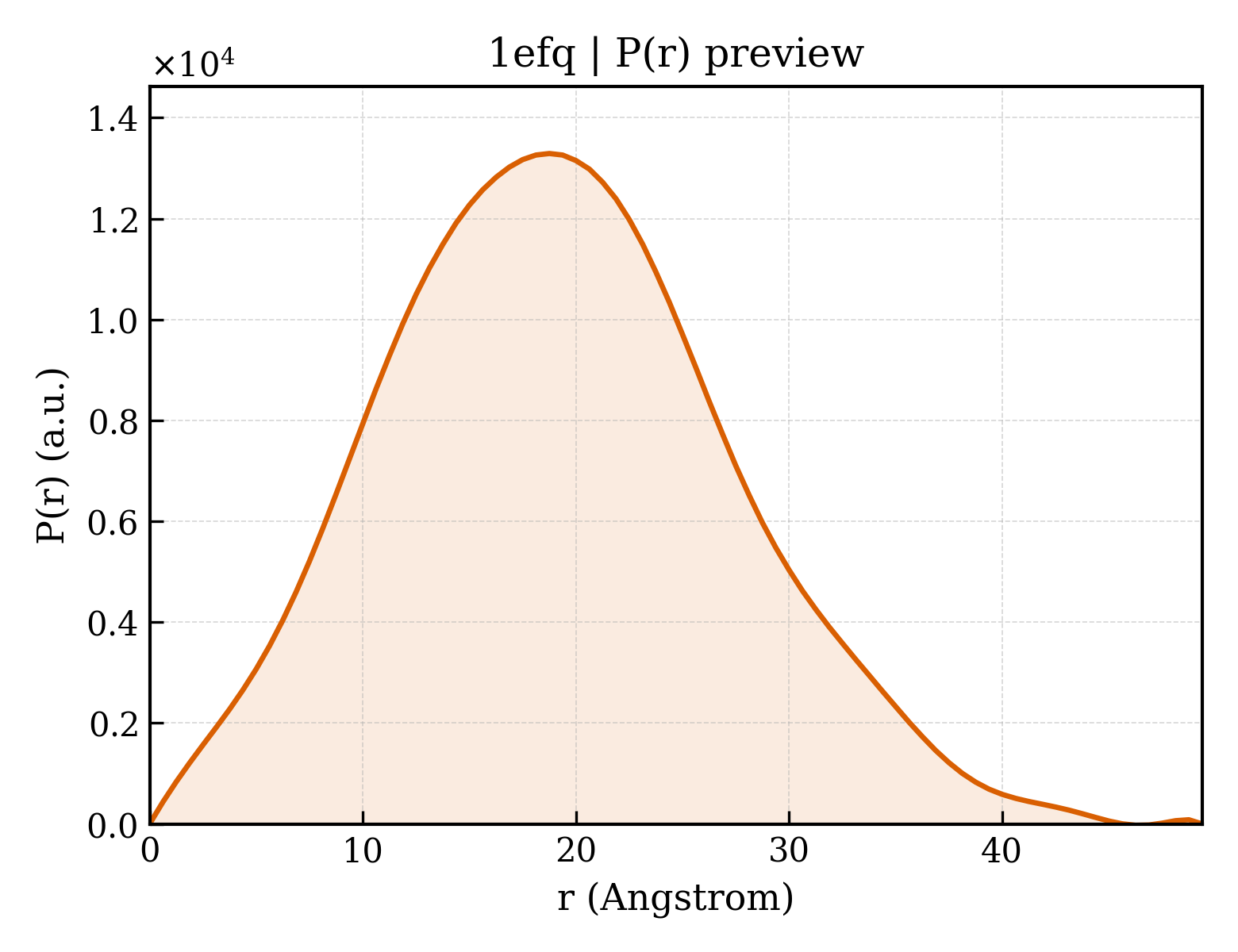

P(r) Distribution
1. Structure Basics
| entry_id | 1efq |
| deposition_date | 2000-02-09 |
| title | Q38D mutant of LEN |
| keywords | ;Human Kappa-4 Immunoglobulin Light Chain, Mutant, Monomer, Uranyl ion in crystal contact, Aspartic Acid in beta-sheet, Protein Stability, IMMUNE SYSTEM ;; IMMUNE SYSTEM |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.74 Å |
| rg_electron | 13.63 Å |
| i0 | 3424070.00 |
| molecular_weight | 12474.0 kDa |
| excluded_volume | 15189 ų |
| envelope_volume | 16775 ų |
| shell_volume | 10804 ų |
| envelope_diameter | 48.8 Å |
| shell_rg | 18.95 Å |
| envelope_rg | 13.97 Å |
| shape_rg | 13.57 Å |
| total_rg | 14.84 Å |
| total_atoms | 861 |
| n_residues | 113 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 49.4 Å |
| rg_real | 14.69 Å |
| rg_real_error | 0.28 Å |
| i0_real | 3.4240e+06 |
| i0_real_error | 3.8270e+04 |
| rg_reciprocal | 14.69 Å |
| i0_reciprocal | 3424000.0000 |
| total_estimate | 0.7982 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 18.8 Å |
| skewness | 0.251 |
| kurtosis | -0.213 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 362900.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.792; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.000 |
