SAXSdb — 1eg2

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MODIFICATION METHYLASE RSRI

Rhodobacter sphaeroides

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	5'-DEOXY-5'-METHYLTHIOADENOSINE × 1 water × 1	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	5'-DEOXY-5'-METHYLTHIOADENOSINE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MTR1_RHOSH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–319； UniProt 1–319

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1eg2
Deposition date deposition_date	2000-02-11
Structure title title	CRYSTAL STRUCTURE OF RHODOBACTER SPHEROIDES (N6 ADENOSINE) METHYLTRANSFERASE (M.RSRI)
Keywords keywords	;Rossmann Fold, exocyclic amino DNA methyltransferase RsrI, DNA binding, DNA modification, DNA methylation, Structural Genomics, PSI, Protein Structure Initiative, Midwest Center for Structural Genomics, MCSG, TRANSFERASE ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1eg2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

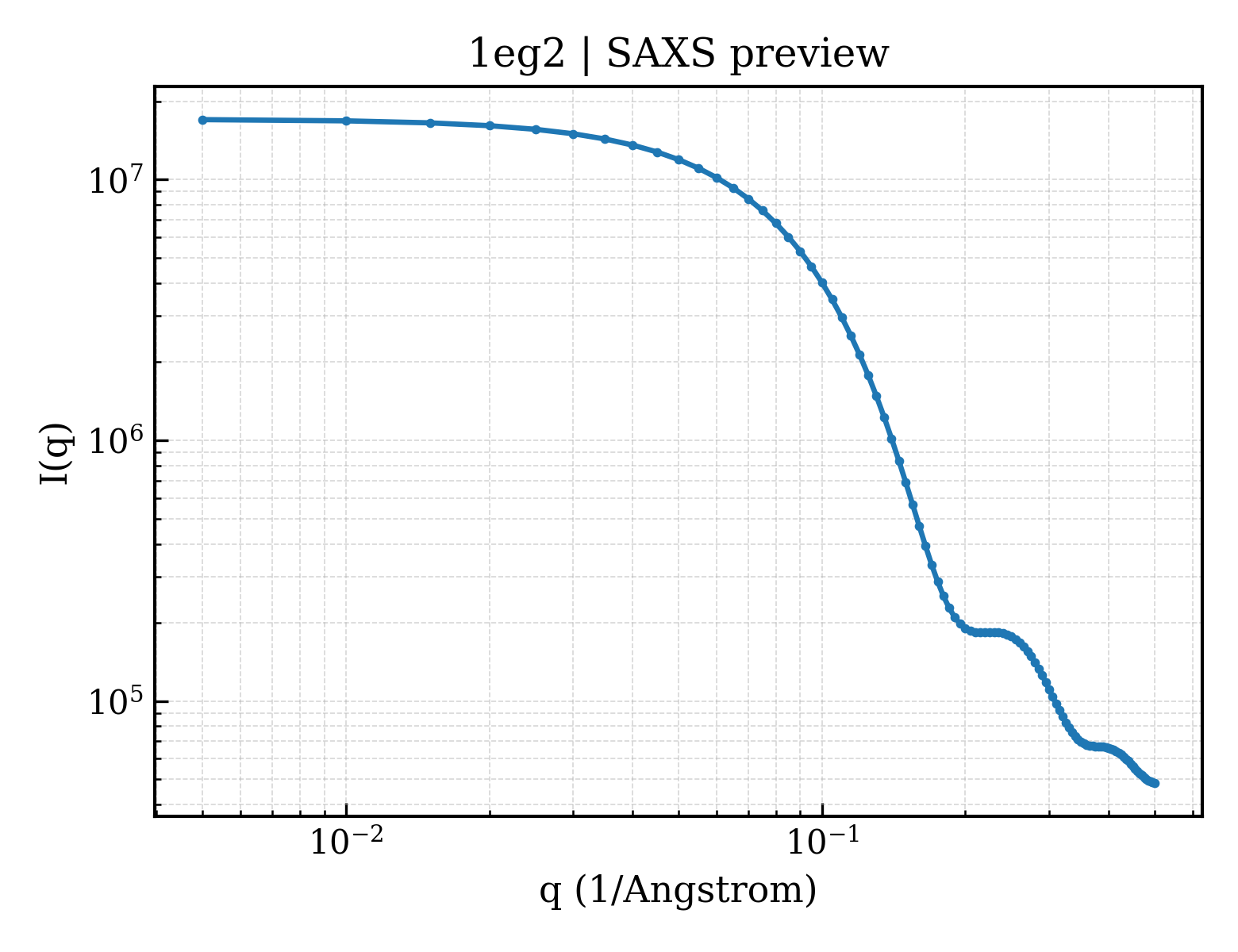

1eg2__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

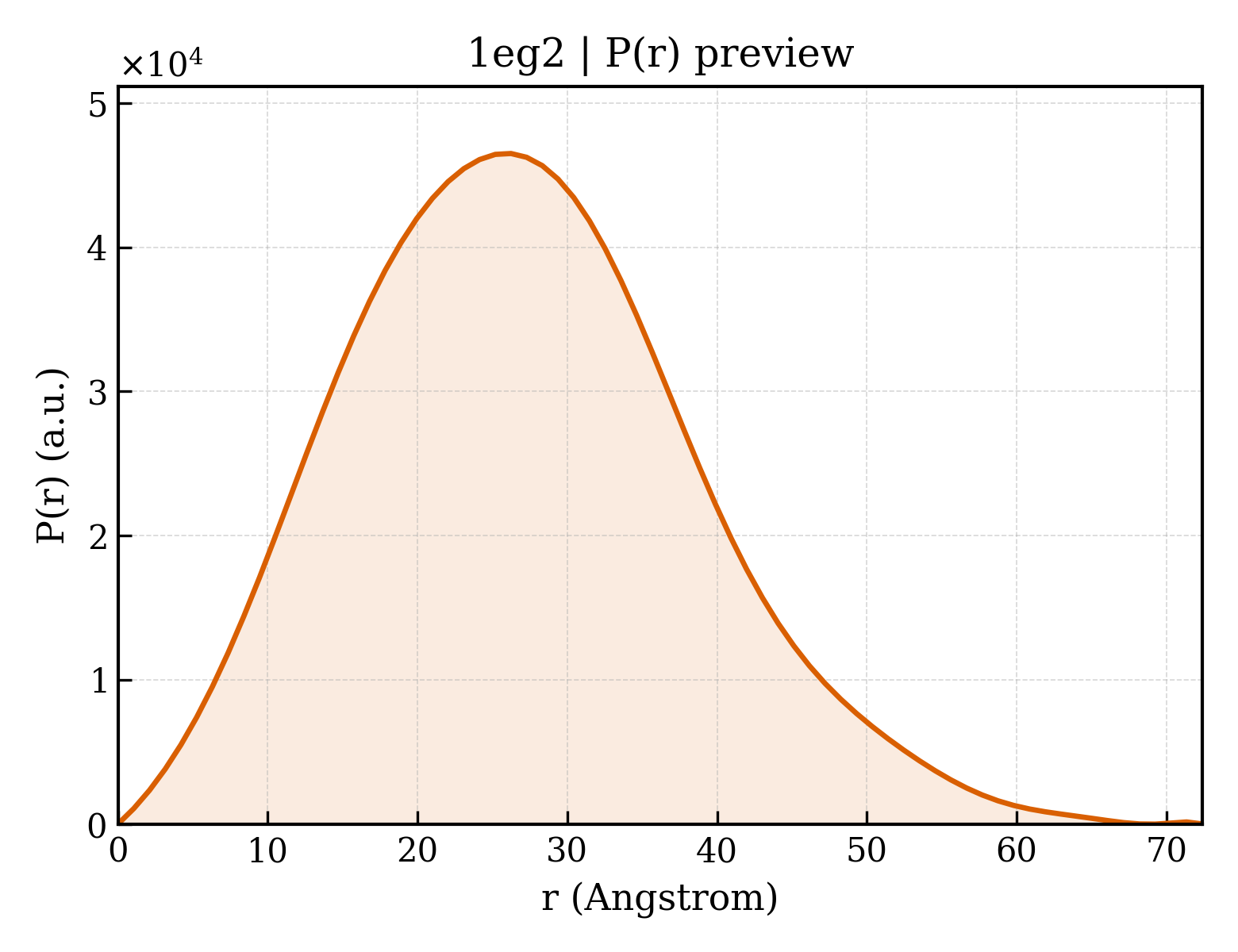

1eg2__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.69 Å
Rg (electron density)	19.56 Å
Total Rg	20.51 Å
Atom count	2166
Residues	270
Excluded volume	38293 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1eg2__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1eg2__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	MODIFICATION METHYLASE RSRI
Molecular weight formula_weight	35702.2 kDa
EC 编号 ec_number	2.1.1.72
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2471

MANRSHHNAGHRAMNALRKSGQKHSSESQLGSSEIGTTRHVYDVCDCLDTLAKLPDDSVQLIICDPPYNIMLADWDDHMDYIGWAKRWLAEAERVLSPTGSIAIFGGLQYQGEAGSGDLISIISHMRQNSKMLLANLIIWNYPNGMSAQRFFANRHEEIAWFAKTKKYFFDLDAVREPYDEETKAAYMKDKRLNPESVEKGRNPTNVWRMSRLNGNSLERVGHPTQKPAAVIERLVRALSHPGSTVLDFFAGSGVTARVAIQEGRNSICTDAAPVFKEYYQKQLTFLQDDGLIDKARSYEIVEGAANFGAALQRGDVAS

Source Source

Source organism organism	Rhodobacter sphaeroides
NCBI taxonomy ID ncbi_taxonomy_id	1063

Entity 2 Entity 2 non-polymer

Description description	5'-DEOXY-5'-METHYLTHIOADENOSINE
Molecular weight formula_weight	297.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	227

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1eg2a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.11 — Type II DNA methylase

CATH v4.4 (1 domains)

Domain ID domain_id	1eg2A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

▶

Unit-cell length a length_a	70.420 Å
Unit-cell length b length_b	130.253 Å
Unit-cell length c length_c	67.284 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	1.750 Å
Low-resolution limit resolution_low	35.210 Å
R factor r_factor	—
R_work r_work	0.2140
R_free r_free	0.2500

CRYSTAL STRUCTURE OF RHODOBACTER SPHEROIDES (N6 ADENOSINE) METHYLTRANSFERASE (M.RSRI)
