SAXSdb — 1eh4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CASEIN KINASE-1

Schizosaccharomyces pombe

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–298	Fragment：CATALYTIC CORE RESIDUES 1 - 298	SO4 SULFATE ION × 6 IC1 3-[(2,4,6-TRIMETHOXY-PHENYL)-METHYLENE]-INDOLIN-2-ONE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 4.2；289 K；Ammonium Sulfate, Sodium Acetate, MPD , pH 4.2, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.80 Å R-free 0.304
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 1–298	Fragment：CATALYTIC CORE RESIDUES 1 - 298	SO4 SULFATE ION × 5 IC1 3-[(2,4,6-TRIMETHOXY-PHENYL)-METHYLENE]-INDOLIN-2-ONE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 4.2；289 K；Ammonium Sulfate, Sodium Acetate, MPD , pH 4.2, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.80 Å R-free 0.304

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1EH4	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CSN BINARY COMPLEX OF CASEIN KINASE-1 WITH MGATP Deposited 1995-04-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–298（298 aa）	Not recorded	MG MAGNESIUM ION × 2 SO4 SULFATE ION × 4 ATP ADENOSINE-5'-TRIPHOSPHATE × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
2CSN BINARY COMPLEX OF CASEIN KINASE-1 WITH CKI7 Deposited 1995-10-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–298（297 aa） Fragment：CATALYTIC CORE RESIDUES 2 - 298	Not recorded	SO4 SULFATE ION × 4 CKI N-(2-AMINOETHYL)-5-CHLOROISOQUINOLINE-8-SULFONAMIDE × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CKI1_SCHPO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–298； UniProt 1–298 Author chain B； PDBConstruct 1–298； UniProt 1–298

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1eh4
Deposition date deposition_date	2000-02-18
Structure title title	BINARY COMPLEX OF CASEIN KINASE-1 FROM S. POMBE WITH AN ATP COMPETITIVE INHIBITOR, IC261
Keywords keywords	PROTEIN KINASE, CASEIN KINASE-1, PROTEIN-INHIBITOR BINARY COMPLEX, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.29 Å
Radius of gyration Rg (electron density) rg_electron	33.38 Å
Forward intensity I(0) i0	77114800.00
Molecular weight molecular_weight	69283.0 kDa
Excluded volume excluded_volume	86392 Å³
Envelope volume envelope_volume	108430 Å³
Hydration-shell volume shell_volume	28811 Å³
Envelope diameter envelope_diameter	115.0 Å
Shell Rg shell_rg	37.18 Å
Envelope Rg envelope_rg	33.34 Å
Shape Rg shape_rg	33.37 Å
Total Rg total_rg	33.71 Å
Total atoms total_atoms	4871
Residues n_residues	586
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	109.0 Å
Rg (real space) rg_real	33.75 Å
Rg uncertainty (real space) rg_real_error	0.95 Å
I(0) (real space) i0_real	7.7110e+07
I(0) uncertainty (real space) i0_real_error	1.1140e+06
Rg (reciprocal space) rg_reciprocal	33.56 Å
I(0) (reciprocal space) i0_reciprocal	77100000.0000
Solution quality estimate total_estimate	0.7787
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	27.2 Å
Skewness Skewness skewness	0.511
Kurtosis Kurtosis kurtosis	-0.552
Angular range angular_range	— – 0.2400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	13950000.0000
Real-space data points n_real_points	49
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.670; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.645; Smooth: 0.465

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CASEIN KINASE-1
Molecular weight formula_weight	34377.2 kDa
EC 编号 ec_number	2.7.1.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4918

MSGQNNVVGVHYKVGRRIGEGSFGVIFEGTNLLNNQQVAIKFEPRRSDAPQLRDEYRTYKLLAGCTGIPNVYYFGQEGLHNVLVIDLLGPSLEDLLDLCGRKFSVKTVAMAAKQMLARVQSIHEKSLVYRDIKPDNFLIGRPNSKNANMIYVVDFGMVKFYRDPVTKQHIPYREKKNLSGTARYMSINTHLGREQSRRDDLEALGHVFMYFLRGSLPWQGLKAATNKQKYERIGEKKQSTPLRELCAGFPEEFYKYMHYARNLAFDATPDYDYLQGLFSKVLERLNTTEDENFDWNLL

来源 Source

来源生物 organism	Schizosaccharomyces pombe
通用名 common_name	fission yeast
NCBI Class编号 ncbi_taxonomy_id	4896
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	11

Entity 3 Entity 3 non-polymer

Description description	3-[(2,4,6-TRIMETHOXY-PHENYL)-METHYLENE]-INDOLIN-2-ONE
Molecular weight formula_weight	311.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	47

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1eh4a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

Domain ID domain_id	d1eh4b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

CATH v4.4 (4 domains)

Domain ID domain_id	1eh4A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	1eh4A02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	1eh4B01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	1eh4B02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

▶

8. Citations (3)

▶

Unit-cell length a length_a	113.500 Å
Unit-cell length b length_b	113.500 Å
Unit-cell length c length_c	110.400 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 61
Space-group number int_tables_number	169
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2240
R_work r_work	0.2240
R_free r_free	0.3040

fit	/app/data/saxs_computation/eh/1eh4/1eh4.fit
pddf	/app/data/pr_computation/eh/1eh4/1eh4.pr.out
profile	/app/data/saxs_computation/eh/1eh4/1eh4.dat

BINARY COMPLEX OF CASEIN KINASE-1 FROM S. POMBE WITH AN ATP COMPETITIVE INHIBITOR, IC261

1. Protein Identity and Related Structures Protein Identity & Related Structures

CASEIN KINASE-1

State in the Current Structure

Other States of the Same Protein in the Database

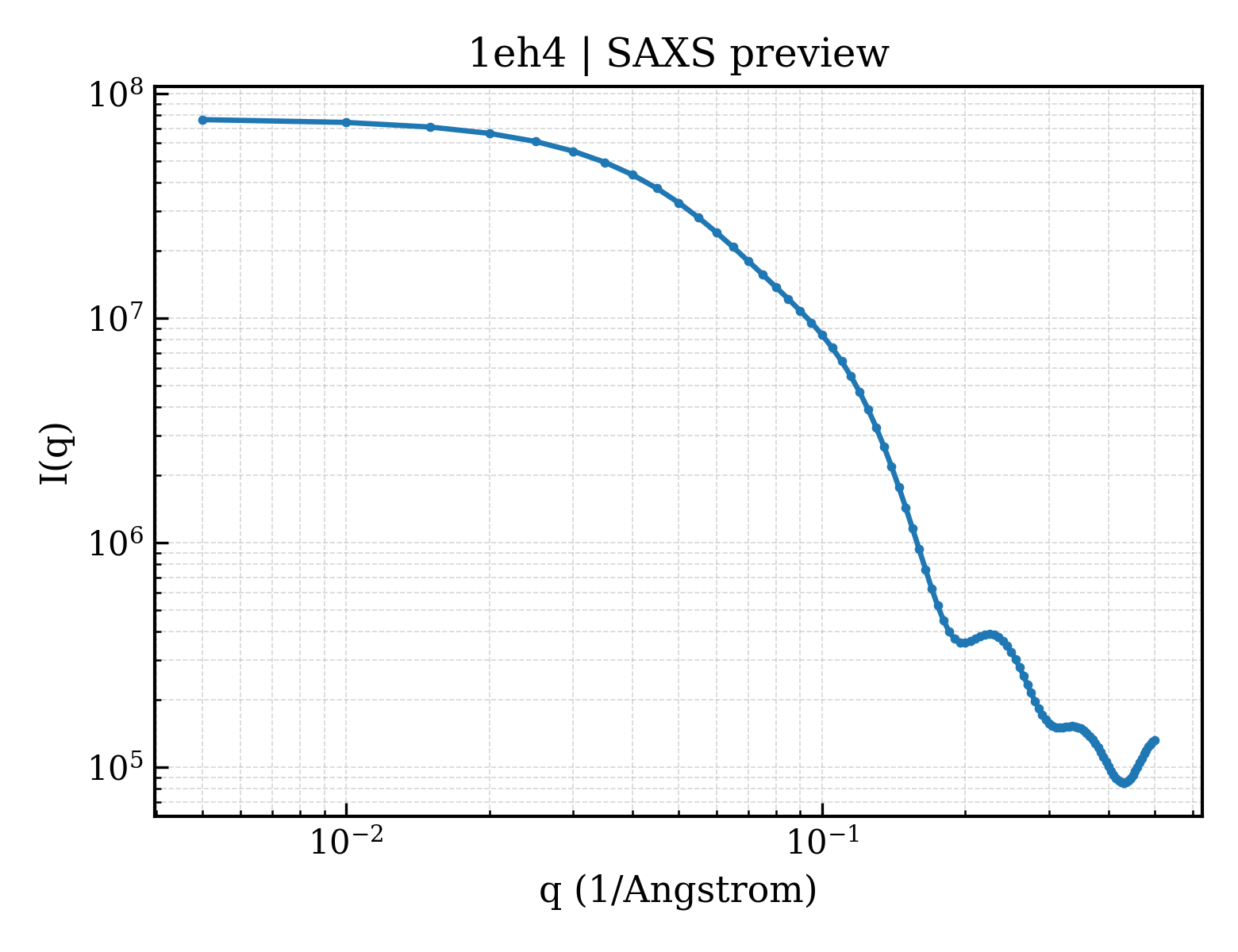

SAXS scattering curve SAXS Profile

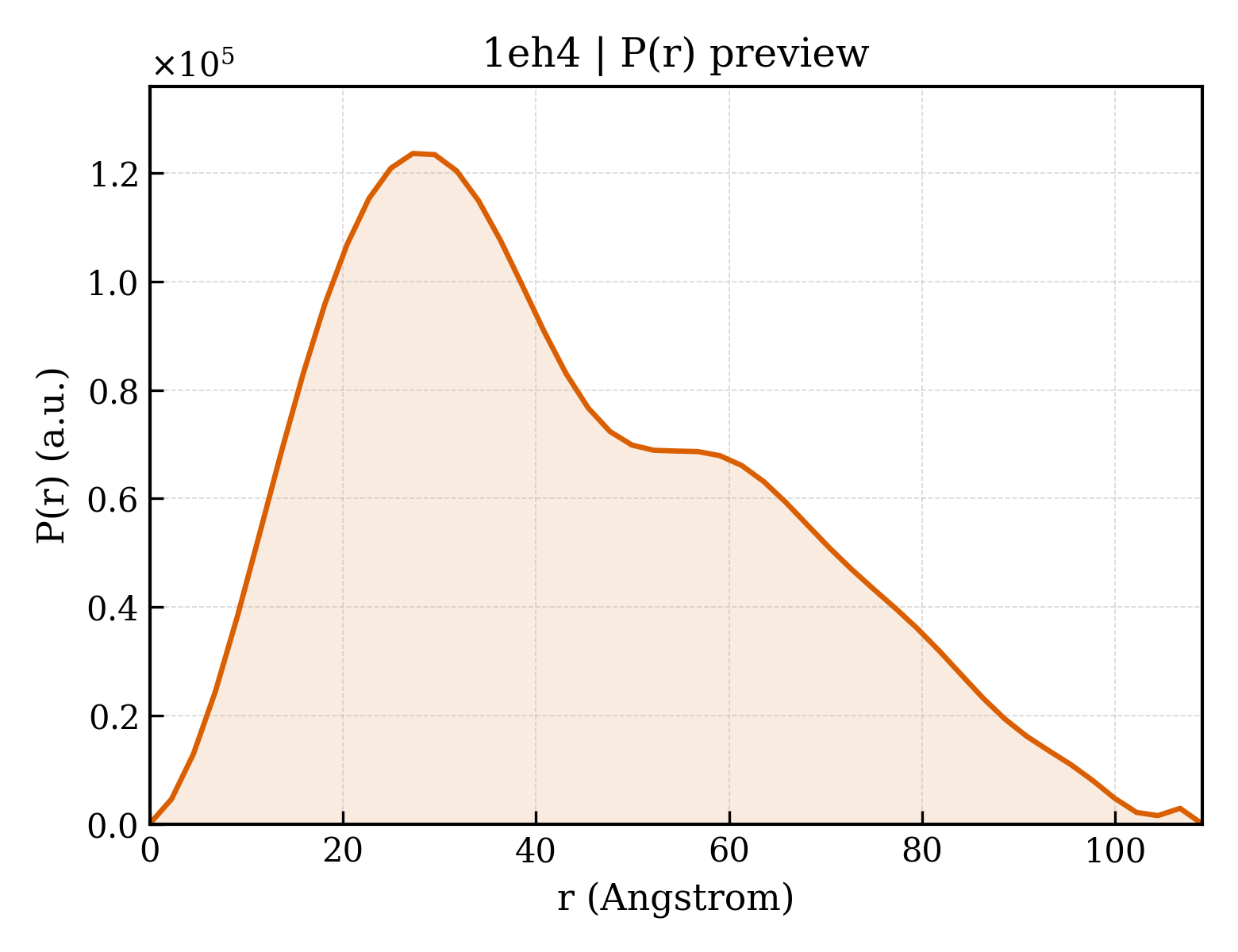

P(r) Distance Distribution P(r) Distribution
