1ehx
NMR SOLUTION STRUCTURE OF THE LAST UNKNOWN MODULE OF THE CELLULOSOMAL SCAFFOLDIN PROTEIN CIPC OF CLOSTRIDUM CELLULOLYTICUM

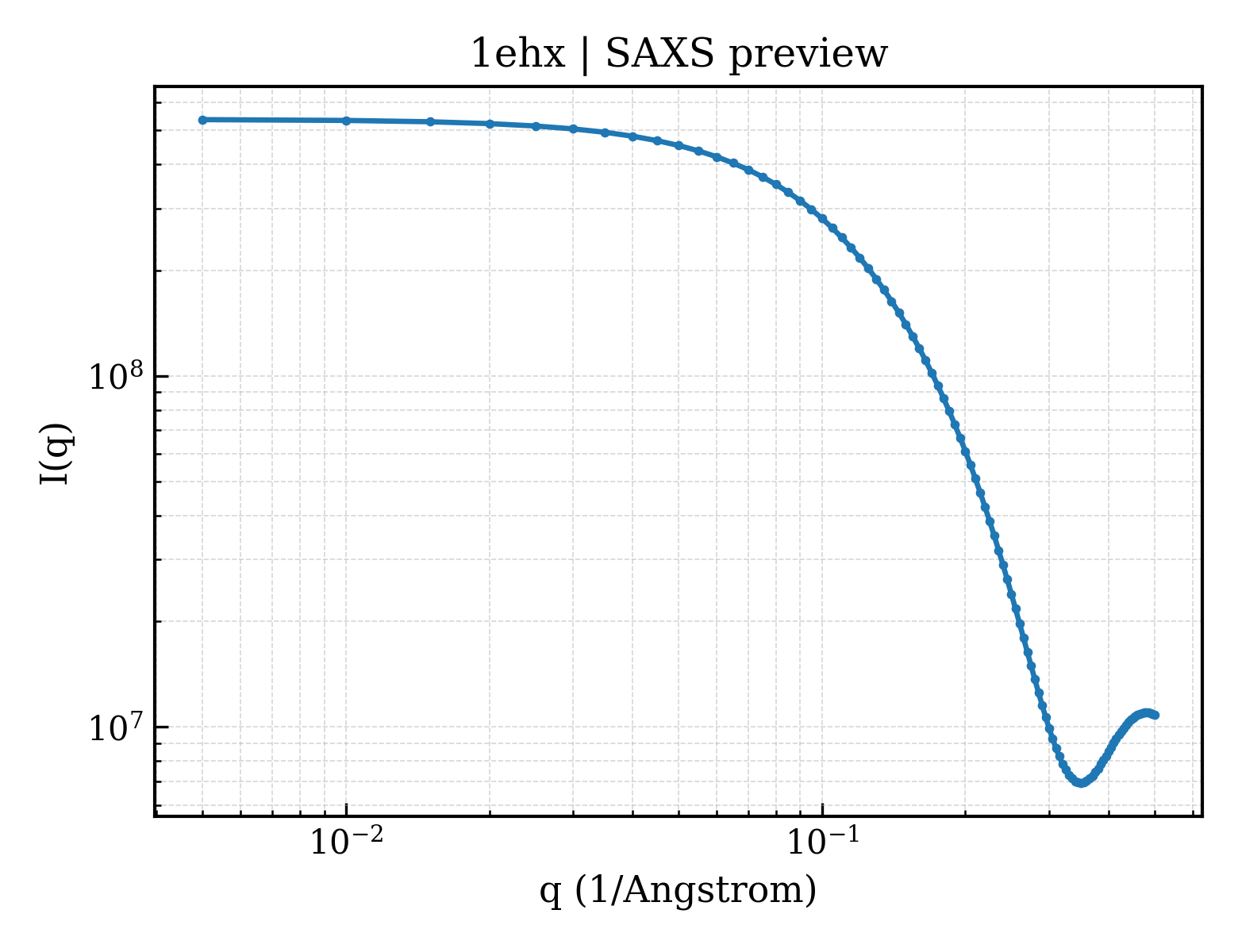

SAXS Profile

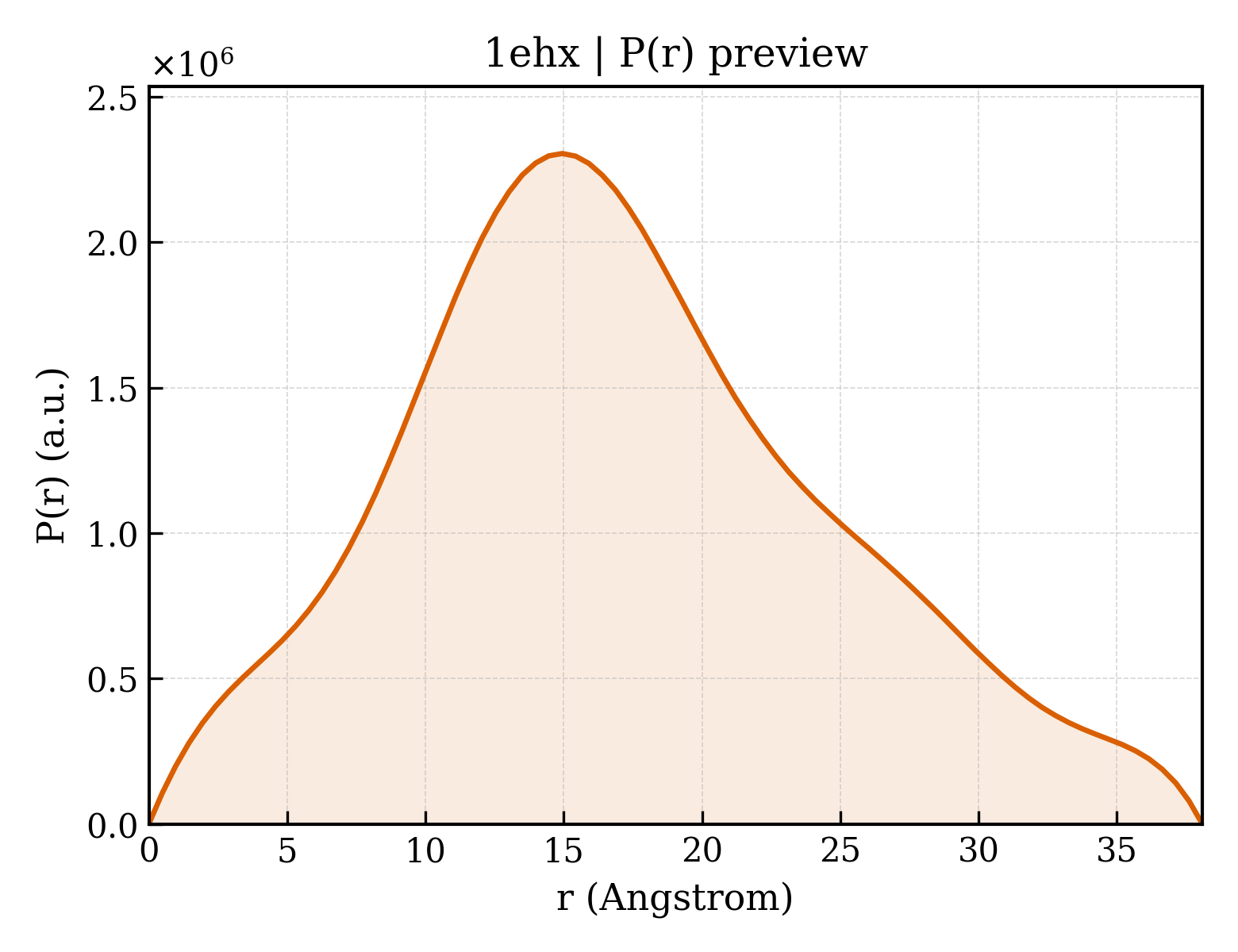

P(r) Distribution
1. Structure Basics
| entry_id | 1ehx |
| deposition_date | 2000-02-23 |
| title | NMR SOLUTION STRUCTURE OF THE LAST UNKNOWN MODULE OF THE CELLULOSOMAL SCAFFOLDIN PROTEIN CIPC OF CLOSTRIDUM CELLULOLYTICUM |
| keywords | beta-beta-barrels, 3.10 helix, UNKNOWN FUNCTION; UNKNOWN FUNCTION |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.22 Å |
| rg_electron | 14.02 Å |
| i0 | 537574000.00 |
| molecular_weight | 200690.0 kDa |
| excluded_volume | 253140 ų |
| envelope_volume | 27936 ų |
| shell_volume | 13525 ų |
| envelope_diameter | 67.7 Å |
| shell_rg | 24.25 Å |
| envelope_rg | 20.33 Å |
| shape_rg | 13.98 Å |
| total_rg | 14.41 Å |
| total_atoms | 28420 |
| n_residues | 1880 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 38.1 Å |
| rg_real | 13.22 Å |
| rg_real_error | 0.07 Å |
| i0_real | 5.1220e+08 |
| i0_real_error | 4.0480e+06 |
| rg_reciprocal | 14.44 Å |
| i0_reciprocal | 537600000.0000 |
| total_estimate | 0.6700 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 14.9 Å |
| skewness | 0.330 |
| kurtosis | -0.315 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 3.1030 |
| highest_alpha | 119700.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.006; Oscil: 0.922; Stabil: 0.982; Sysdev: 0.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000 |
