1ehy
X-ray structure of the epoxide hydrolase from agrobacterium radiobacter ad1
SAXS Profile

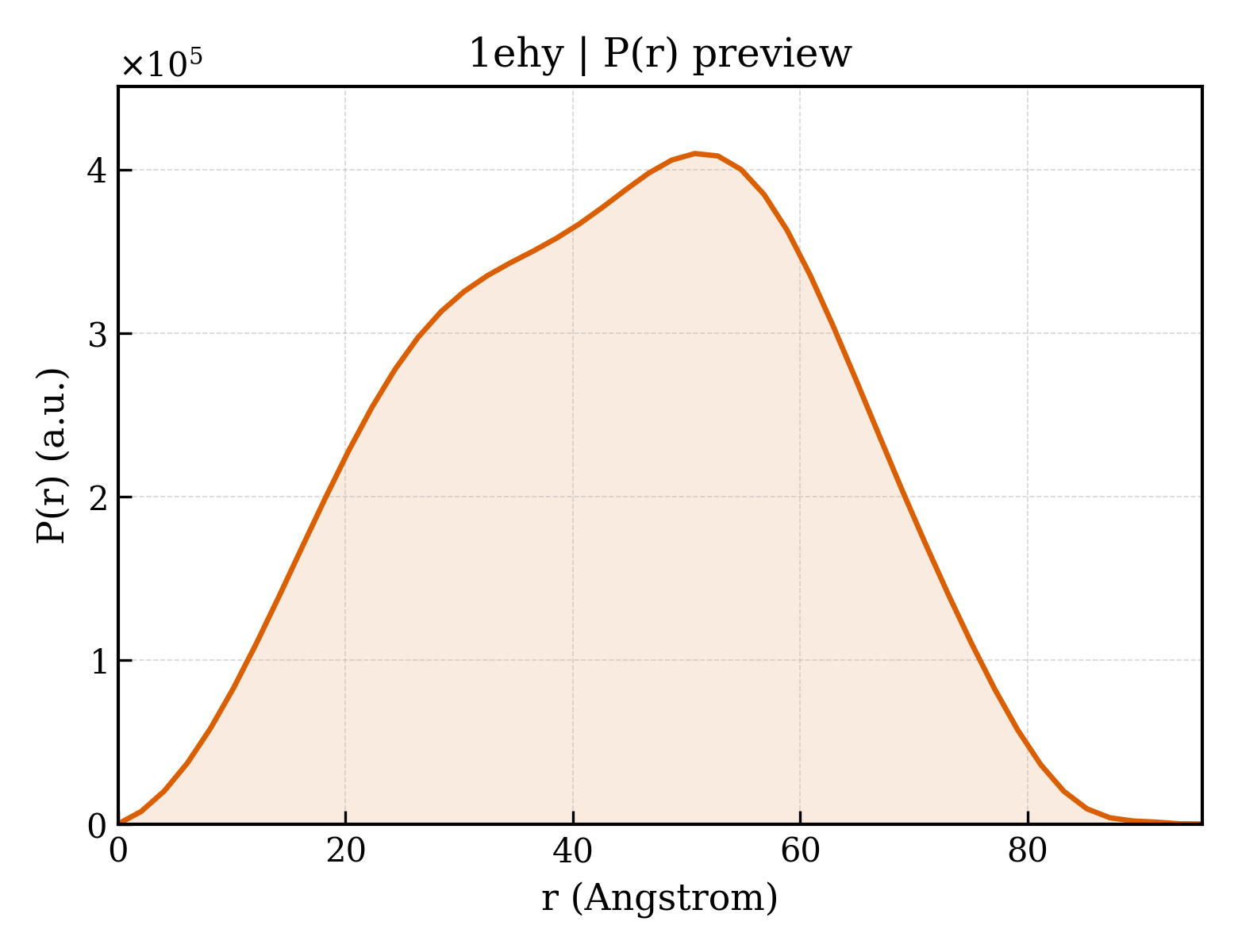

P(r) Distribution
1. Structure Basics
| entry_id | 1ehy |
| deposition_date | 1998-10-17 |
| title | X-ray structure of the epoxide hydrolase from agrobacterium radiobacter ad1 |
| keywords | HYDROLASE, ALPHA/BETA HYDROLASE FOLD, EPOXIDE DEGRADATION, EPICHLOROHYDRIN; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 33.80 Å |
| rg_electron | 32.86 Å |
| i0 | 249693000.00 |
| molecular_weight | 130940.0 kDa |
| excluded_volume | 165030 ų |
| envelope_volume | 200850 ų |
| shell_volume | 50197 ų |
| envelope_diameter | 95.5 Å |
| shell_rg | 40.57 Å |
| envelope_rg | 31.98 Å |
| shape_rg | 32.83 Å |
| total_rg | 33.59 Å |
| total_atoms | 9266 |
| n_residues | 1128 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 95.4 Å |
| rg_real | 33.56 Å |
| rg_real_error | 0.38 Å |
| i0_real | 2.4970e+08 |
| i0_real_error | 3.2720e+06 |
| rg_reciprocal | 33.71 Å |
| i0_reciprocal | 249700000.0000 |
| total_estimate | 0.9046 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 1 |
| r_peak_primary | 50.7 Å |
| skewness | -0.066 |
| kurtosis | -0.732 |
| angular_range | — – 0.2350 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 362700000.0000 |
| n_real_points | 48 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.973; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.852 |
