SAXSdb — 1ei7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

COAT PROTEIN

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 68	water × 68	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count
4	Protein homooligomer	Homooligomer	Protein 34	water × 34	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	COAT_TMV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–158； UniProt 1–158 Author chain B； PDBConstruct 1–158； UniProt 1–158

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ei7
Deposition date deposition_date	2000-02-24
Structure title title	TMV COAT PROTEIN REFINED FROM THE 4-LAYER AGGREGATE
Keywords keywords	disordered loops, Viral protein, VIRUS; VIRUS
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ei7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ei7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

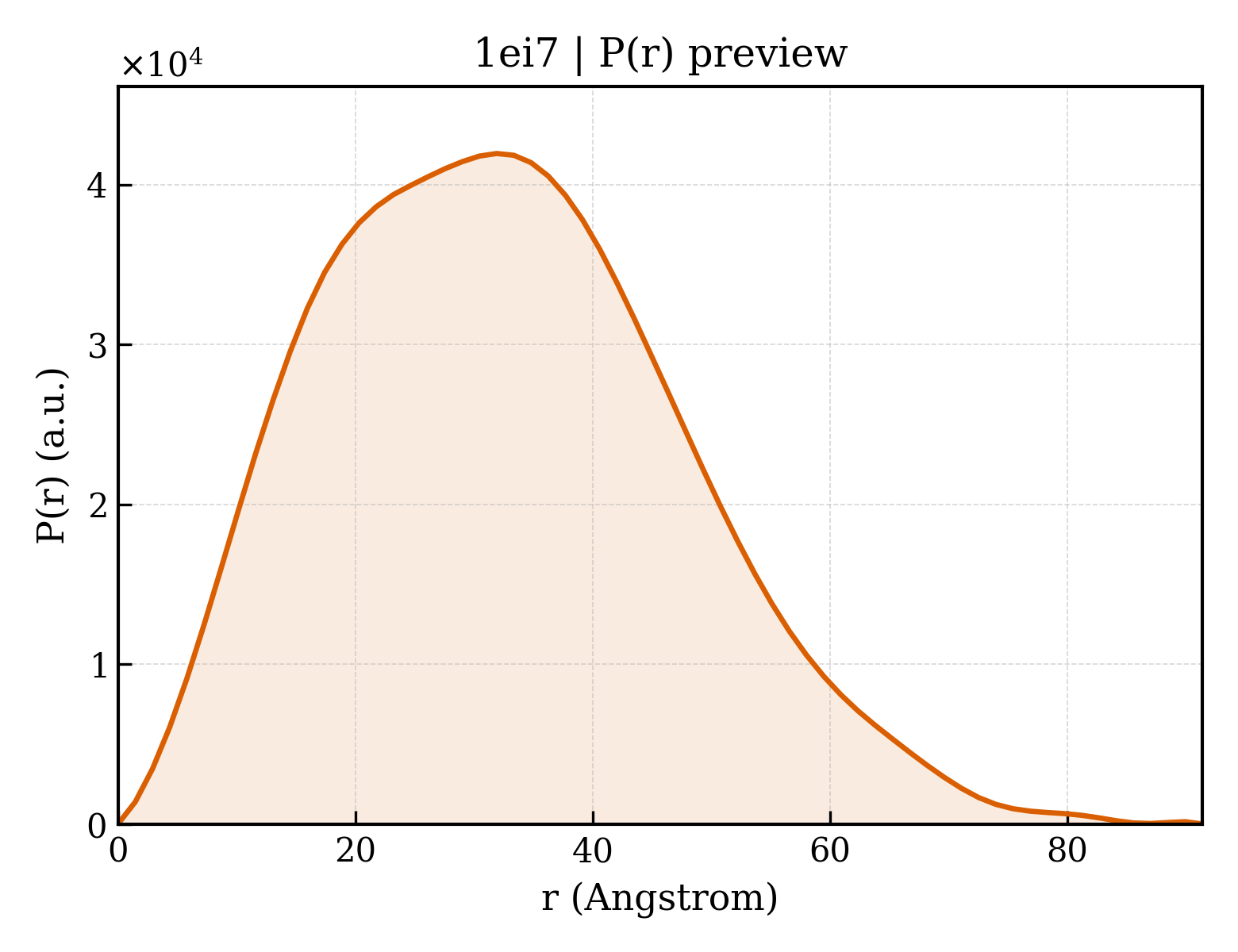

1ei7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	69.55 Å
Rg (electron density)	69.63 Å
Total Rg	69.59 Å
Atom count	83980
Residues	10744
Excluded volume	1482200 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ei7__assembly_1__model_1`	68-MERIC （68）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1ei7__assembly_2__model_1`	dimeric （2）	Excluded	—	—
	Exclusion reason： Auxiliary symmetry representation; not a complete or representative biological assembly.
3	1	`1ei7__assembly_3__model_1`	dimeric （2）	Excluded	—	—
	Exclusion reason： Auxiliary symmetry representation; not a complete or representative biological assembly.
4	1	`1ei7__assembly_4__model_1`	34-meric （34）	Excluded	—	—
	Exclusion reason： Auxiliary symmetry representation; not a complete or representative biological assembly.

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1ei7a_
Class class	a — All alpha proteins
Fold Fold fold	a.24 — Four-helical up-and-down bundle
Superfamily Superfamily superfamily	a.24.5 — TMV-like viral coat proteins
Family Family family	a.24.5.1 — TMV-like viral coat proteins

Domain ID domain_id	d1ei7b_
Class class	a — All alpha proteins
Fold Fold fold	a.24 — Four-helical up-and-down bundle
Superfamily Superfamily superfamily	a.24.5 — TMV-like viral coat proteins
Family Family family	a.24.5.1 — TMV-like viral coat proteins

CATH v4.4 (2 domains)

Domain ID domain_id	1ei7A00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	70 — Tobacco mosaic virus-like, coat protein

Domain ID domain_id	1ei7B00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	70 — Tobacco mosaic virus-like, coat protein

▶

Unit-cell length a length_a	220.845 Å
Unit-cell length b length_b	171.701 Å
Unit-cell length c length_c	226.175 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	136

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.450 Å
Low-resolution limit resolution_low	29.900 Å
R factor r_factor	—
R_work r_work	0.1950
R_free r_free	0.2250

Description description	COAT PROTEIN
Molecular weight formula_weight	17505.4 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2804

TMV COAT PROTEIN REFINED FROM THE 4-LAYER AGGREGATE

1. Protein Identity and Related Structures Protein Identity & Related Structures

COAT PROTEIN

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1ei7__assembly_1__model_1

1ei7__assembly_1__model_1 | I(q)

1ei7__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

CATH v4.4 (2 domains)

7. Citations (1)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	334
