1eig
SOLUTION STRUCTURE OF THE HUMAN CHEMOKINE EOTAXIN-2

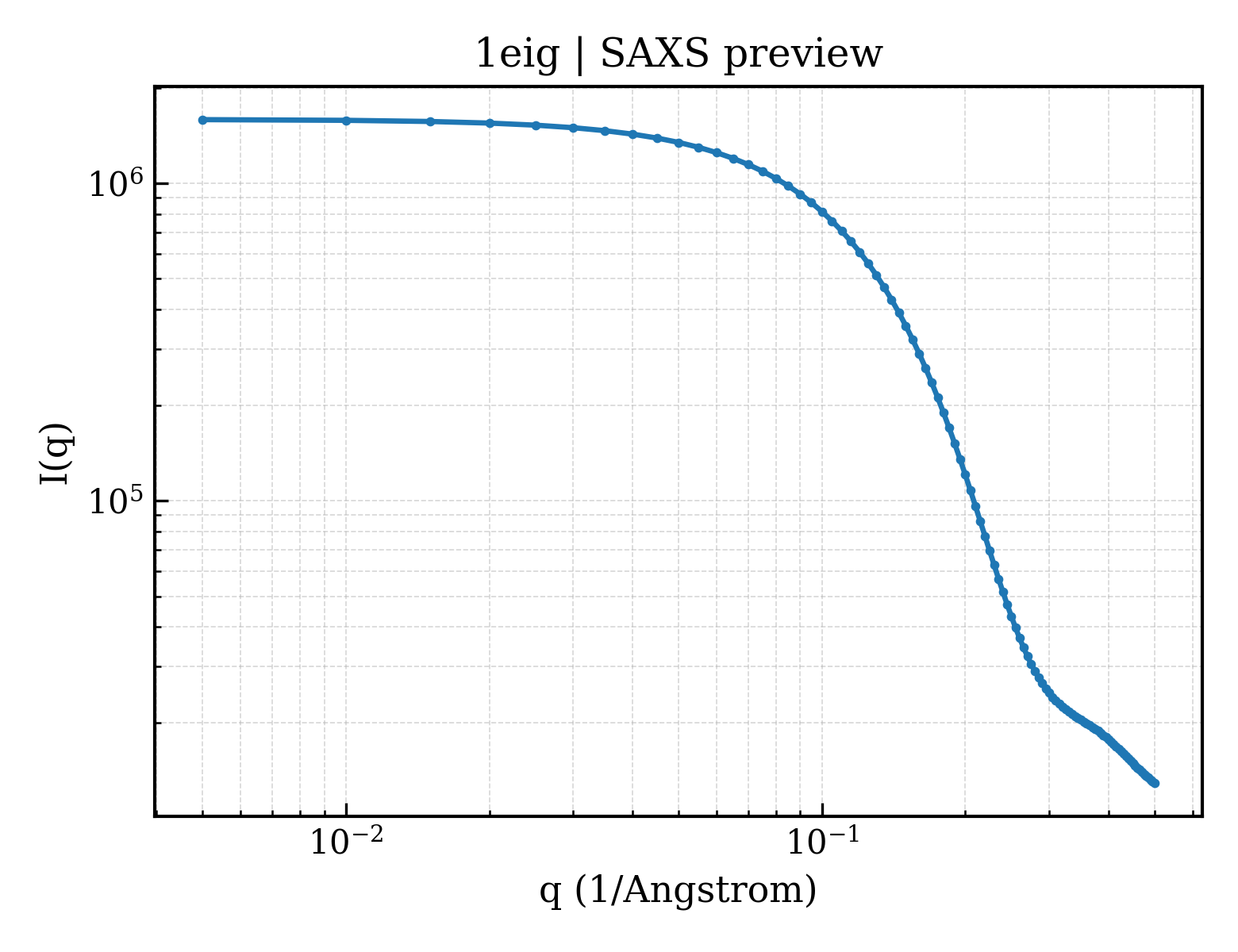

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1eig |
| deposition_date | 2000-02-25 |
| title | SOLUTION STRUCTURE OF THE HUMAN CHEMOKINE EOTAXIN-2 |
| keywords | chemokine, chemotactic cytokine, eosinophil chemoattractant, CYTOKINE; CYTOKINE |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.16 Å |
| rg_electron | 12.91 Å |
| i0 | 1589470.00 |
| molecular_weight | 8320.0 kDa |
| excluded_volume | 10443 ų |
| envelope_volume | 12753 ų |
| shell_volume | 8938 ų |
| envelope_diameter | 48.2 Å |
| shell_rg | 17.77 Å |
| envelope_rg | 13.53 Å |
| shape_rg | 12.83 Å |
| total_rg | 14.38 Å |
| total_atoms | 1182 |
| n_residues | 73 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 49.2 Å |
| rg_real | 14.14 Å |
| rg_real_error | 0.34 Å |
| i0_real | 1.5890e+06 |
| i0_real_error | 1.8430e+04 |
| rg_reciprocal | 14.15 Å |
| i0_reciprocal | 1589000.0000 |
| total_estimate | 0.8686 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 16.8 Å |
| skewness | 0.330 |
| kurtosis | -0.185 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 312500.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.782; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.952; Smooth: 0.989 |
