OrganismNot specified
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | No other associated polymer | Consistent with protein count |
| UniProt name | DNBP_METTH |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–80； UniProt 32–111 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1eij |
| Deposition date deposition_date | 2000-02-25 |
| Structure title title | NMR ENSEMBLE OF METHANOBACTERIUM THERMOAUTOTROPHICUM PROTEIN 1615 |
| Keywords keywords | ;beta-helix, STRUCTURAL GENOMICS, PSI, Protein Structure Initiative, Northeast Structural Genomics Consortium, NESG, DNA BINDING PROTEIN ;; DNA BINDING PROTEIN |
| Experimental Method method | SOLUTION NMR |

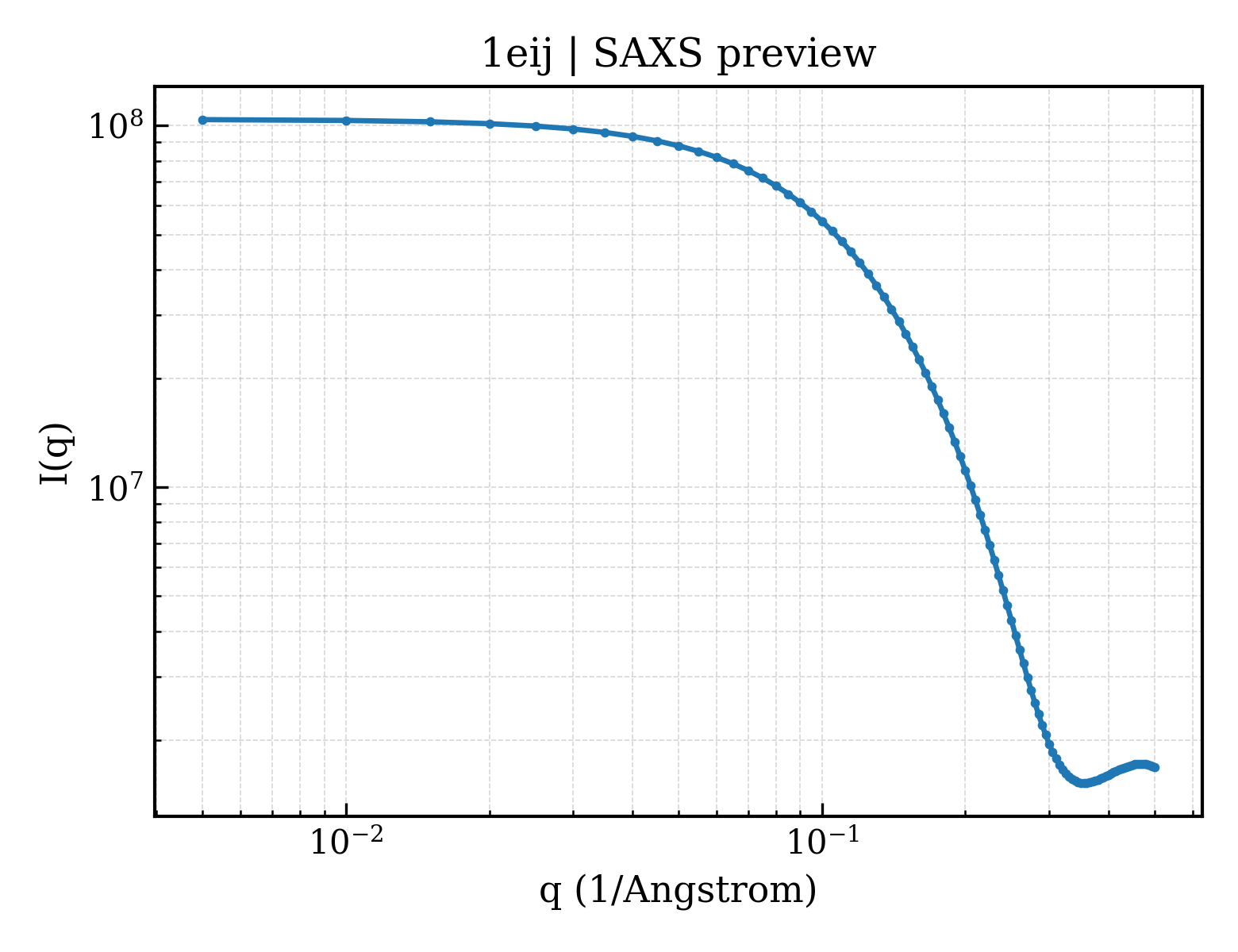

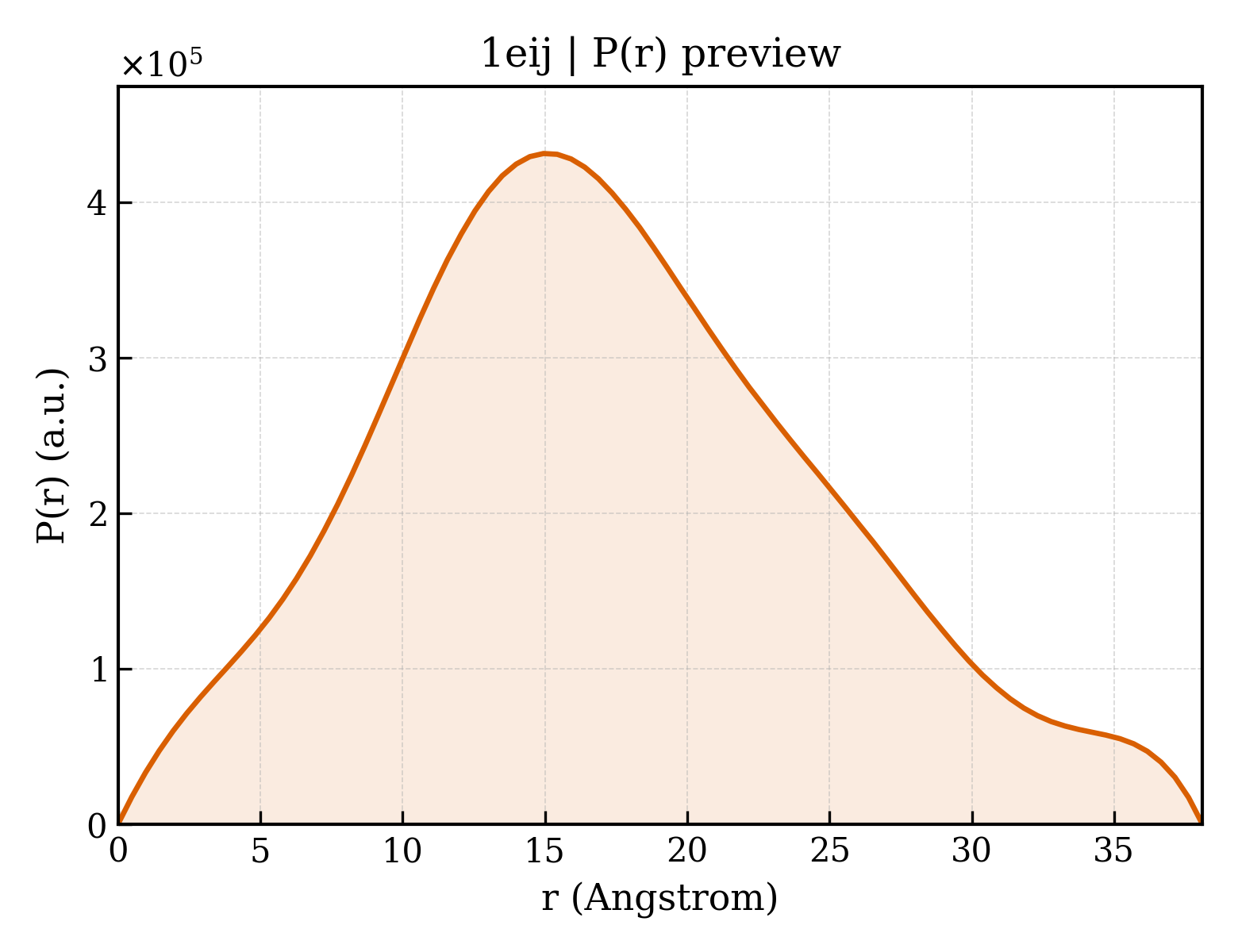

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 14.84 Å |
| Rg (electron density) | 13.63 Å |
| Total Rg | 15.13 Å |
| Atom count | 1249 |
| Residues | 72 |
| Excluded volume | 10800 ų |
| Maximum q | 0.500 Å⁻¹ |
| Assembly | Model | Structure unit | Oligomeric description | Status | CRYSOL | Actions |
|---|---|---|---|---|---|---|
| 1 | 1 | 1eij__assembly_1__model_1 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 2 | 1eij__assembly_1__model_2 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 3 | 1eij__assembly_1__model_3 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 4 | 1eij__assembly_1__model_4 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 5 | 1eij__assembly_1__model_5 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 6 | 1eij__assembly_1__model_6 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 7 | 1eij__assembly_1__model_7 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 8 | 1eij__assembly_1__model_8 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 9 | 1eij__assembly_1__model_9 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 10 | 1eij__assembly_1__model_10 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| Domain ID domain_id | d1eija_ |
| Class class | a — All alpha proteins |
| Fold Fold fold | a.5 — RuvA C-terminal domain-like |
| Superfamily Superfamily superfamily | a.5.6 — Double-stranded DNA-binding domain |
| Family Family family | a.5.6.1 — Double-stranded DNA-binding domain |
| Domain ID domain_id | 1eijA00 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 10 — Orthogonal Bundle |
| Topology topology | 8 — Helicase, Ruva Protein; domain 3 |
| Homologous superfamily homologous superfamily | 140 — PDCD5, DNA-binding domain |
