1eio
ILEAL LIPID BINDING PROTEIN IN COMPLEX WITH GLYCOCHOLATE

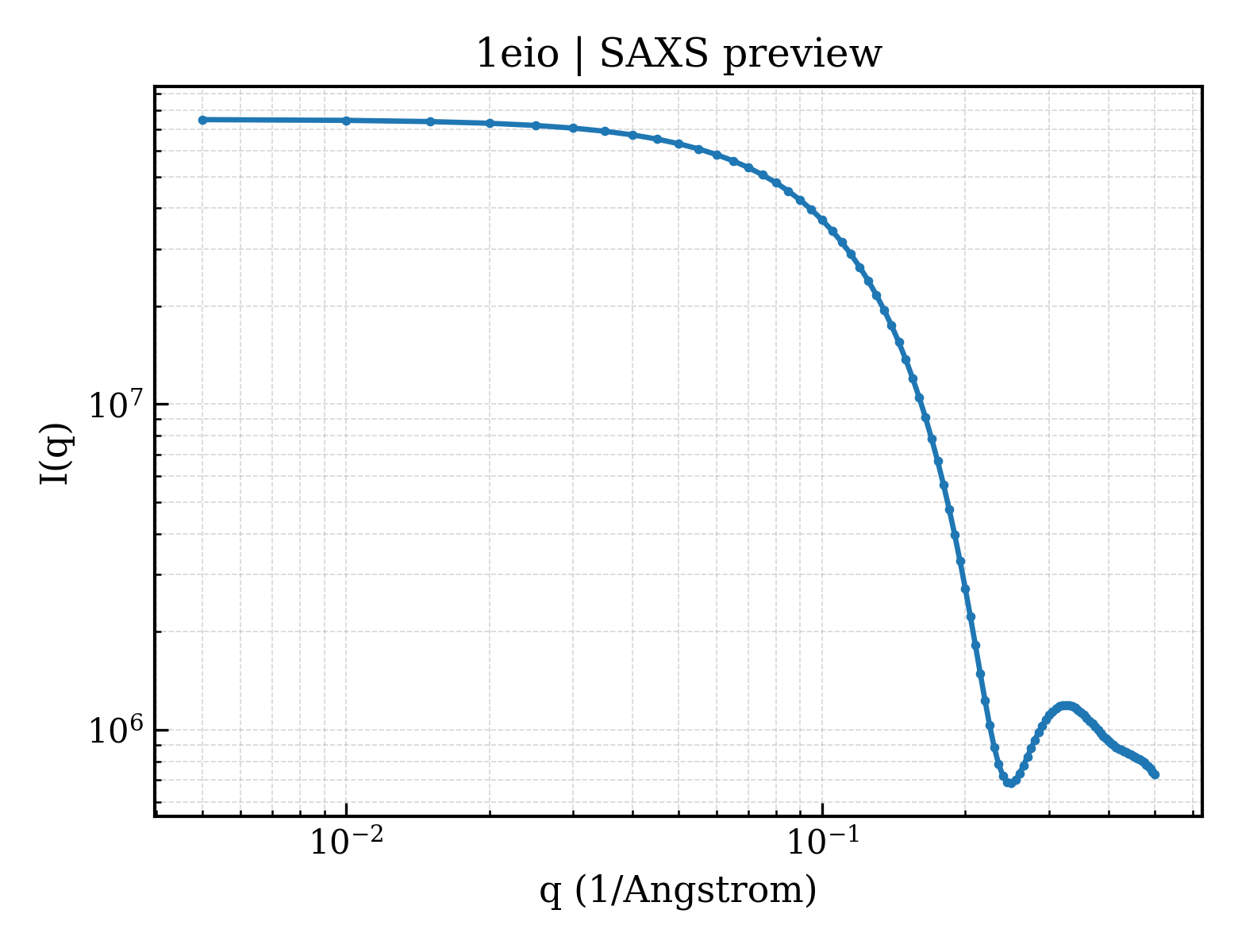

SAXS Profile

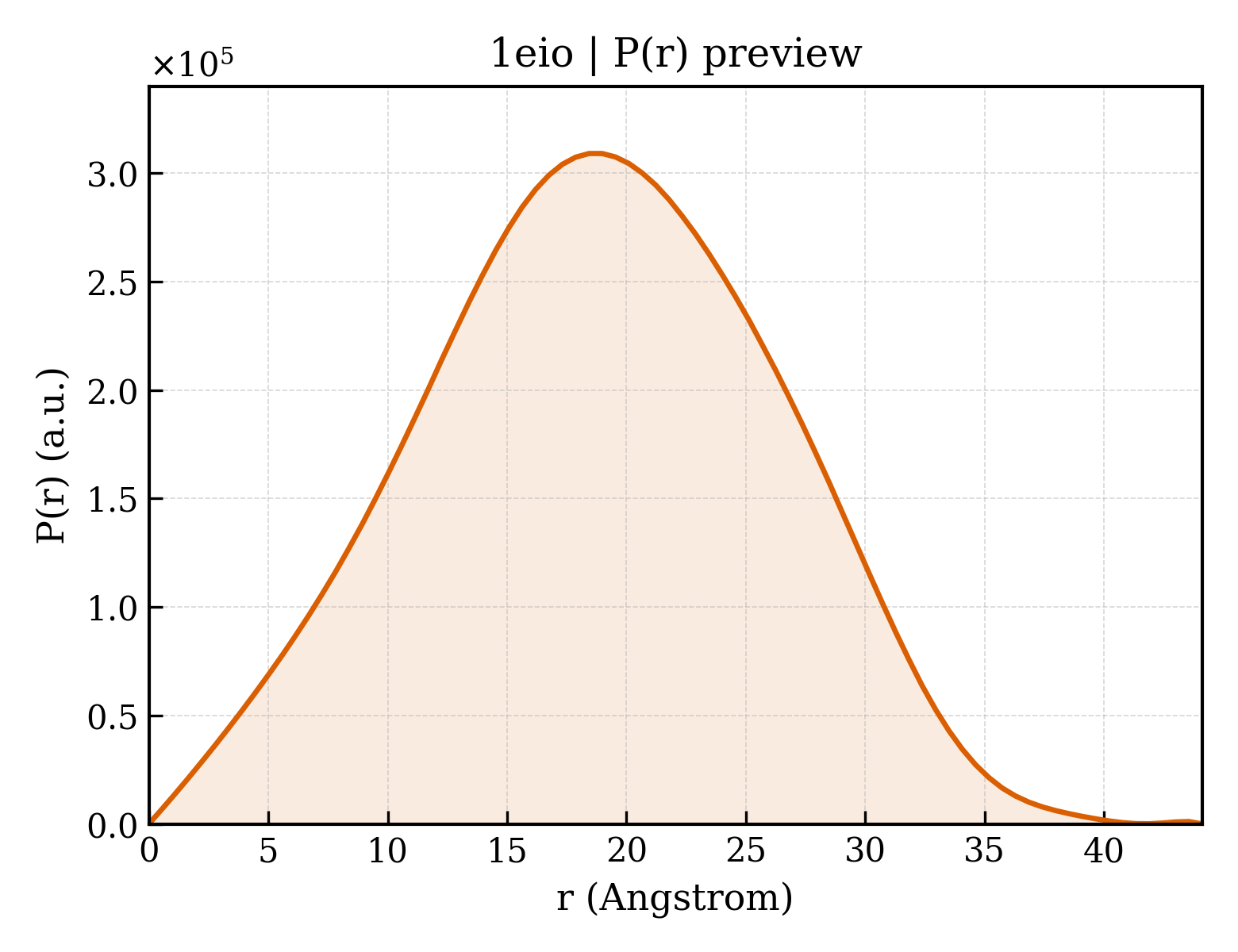

P(r) Distribution
1. Structure Basics
| entry_id | 1eio |
| deposition_date | 2000-02-27 |
| title | ILEAL LIPID BINDING PROTEIN IN COMPLEX WITH GLYCOCHOLATE |
| keywords | bile acid binding, protein-ligand interaction, LIPID-BINDING PROTEIN, LIPID BINDING PROTEIN; LIPID BINDING PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.42 Å |
| rg_electron | 13.87 Å |
| i0 | 74939500.00 |
| molecular_weight | 72698.0 kDa |
| excluded_volume | 91589 ų |
| envelope_volume | 24454 ų |
| shell_volume | 14076 ų |
| envelope_diameter | 46.4 Å |
| shell_rg | 20.68 Å |
| envelope_rg | 14.62 Å |
| shape_rg | 13.83 Å |
| total_rg | 14.37 Å |
| total_atoms | 10280 |
| n_residues | 635 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 44.1 Å |
| rg_real | 14.29 Å |
| rg_real_error | 0.21 Å |
| i0_real | 7.4940e+07 |
| i0_real_error | 7.3070e+05 |
| rg_reciprocal | 14.30 Å |
| i0_reciprocal | 74940000.0000 |
| total_estimate | 0.8958 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 43.5 Å |
| skewness | -0.017 |
| kurtosis | -0.461 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 345600.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.895; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.978; Smooth: 0.978 |
