SAXSdb — 1eis

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (AGGLUTININ ISOLECTIN VI/AGGLUTININ ISOLECTIN V)

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9SYR5_URTDI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–89； UniProt 24–112

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1eis
Deposition date deposition_date	2000-02-28
Structure title title	UDA UNCOMPLEXED FORM. CRYSTAL STRUCTURE OF URTICA DIOICA AGGLUTININ, A SUPERANTIGEN PRESENTED BY MHC MOLECULES OF CLASS I AND CLASS II
Keywords keywords	LECTIN, HEVEIN DOMAIN, UDA, SUPERANTIGEN, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1eis__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

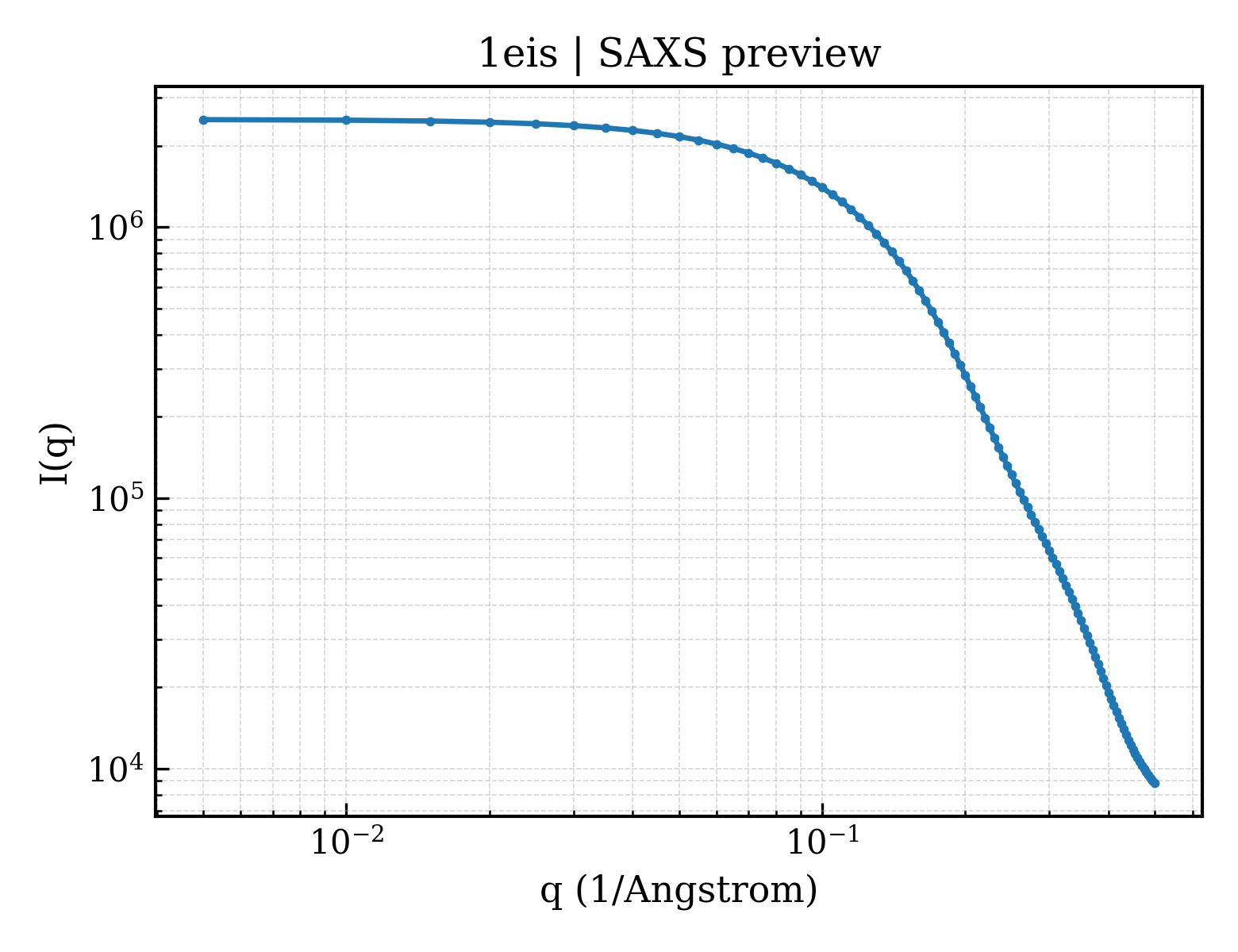

1eis__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1eis__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	13.20 Å
Rg (electron density)	12.46 Å
Total Rg	13.28 Å
Atom count	622
Residues	85
Excluded volume	10454 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1eis__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1eisa1
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.1 — Plant lectins/antimicrobial peptides
Family Family family	g.3.1.1 — Hevein-like agglutinin (lectin) domain

Domain ID domain_id	d1eisa2
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.1 — Plant lectins/antimicrobial peptides
Family Family family	g.3.1.1 — Hevein-like agglutinin (lectin) domain

▶

Unit-cell length a length_a	31.300 Å
Unit-cell length b length_b	41.600 Å
Unit-cell length c length_c	77.100 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.660 Å
Low-resolution limit resolution_low	18.000 Å
R factor r_factor	0.2070
R_work r_work	0.1910
R_free r_free	0.2490

Description description	PROTEIN (AGGLUTININ ISOLECTIN VI/AGGLUTININ ISOLECTIN V)
Molecular weight formula_weight	9350.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	680

UDA UNCOMPLEXED FORM. CRYSTAL STRUCTURE OF URTICA DIOICA AGGLUTININ, A SUPERANTIGEN PRESENTED BY MHC MOLECULES OF CLASS I AND CLASS II
