1eit

NMR STUDY OF MU-AGATOXIN

Method: SOLUTION NMR Dmax: 36.0 Å Quality: GOOD

SAXS Profile

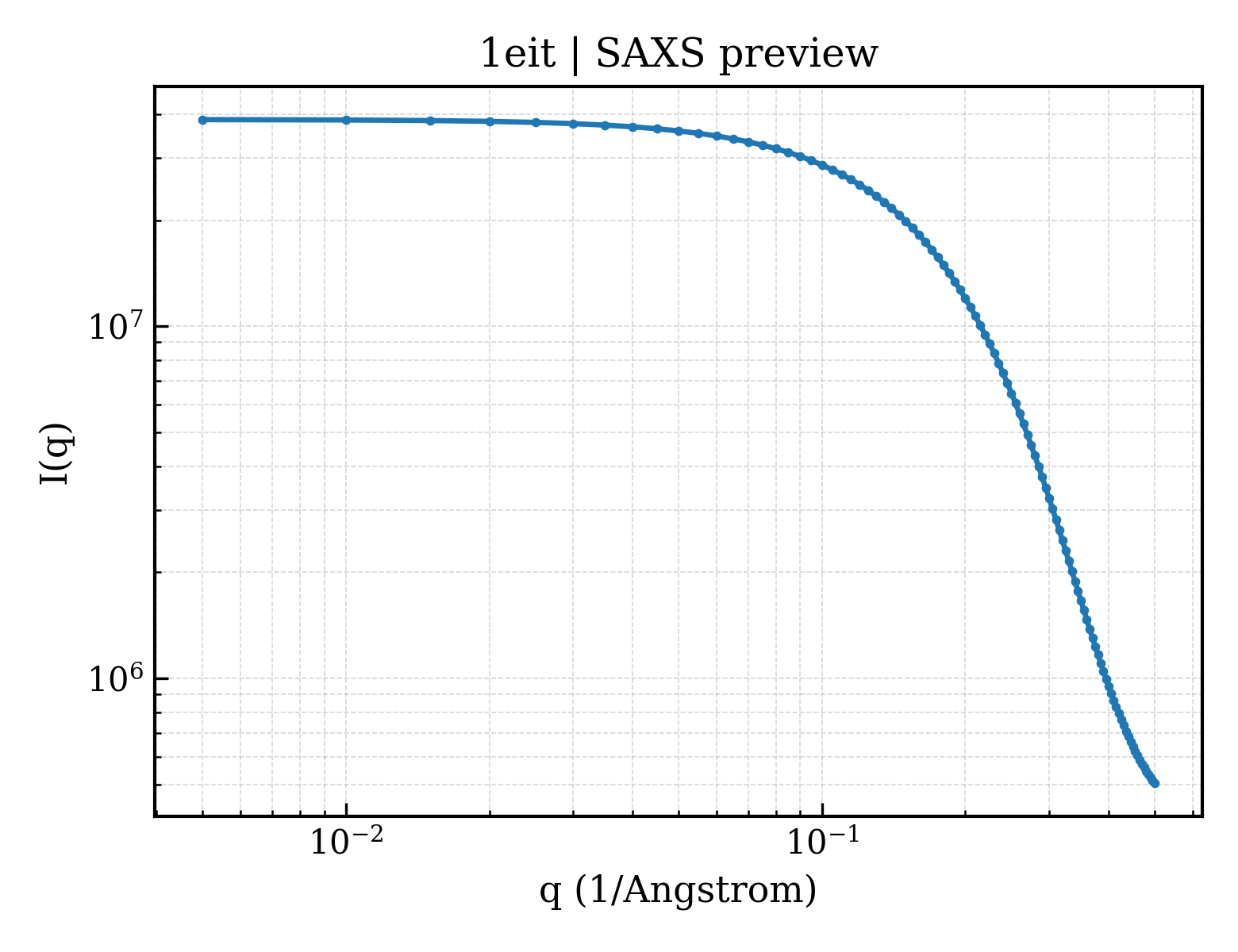

SAXS profile for 1eit

P(r) Distribution

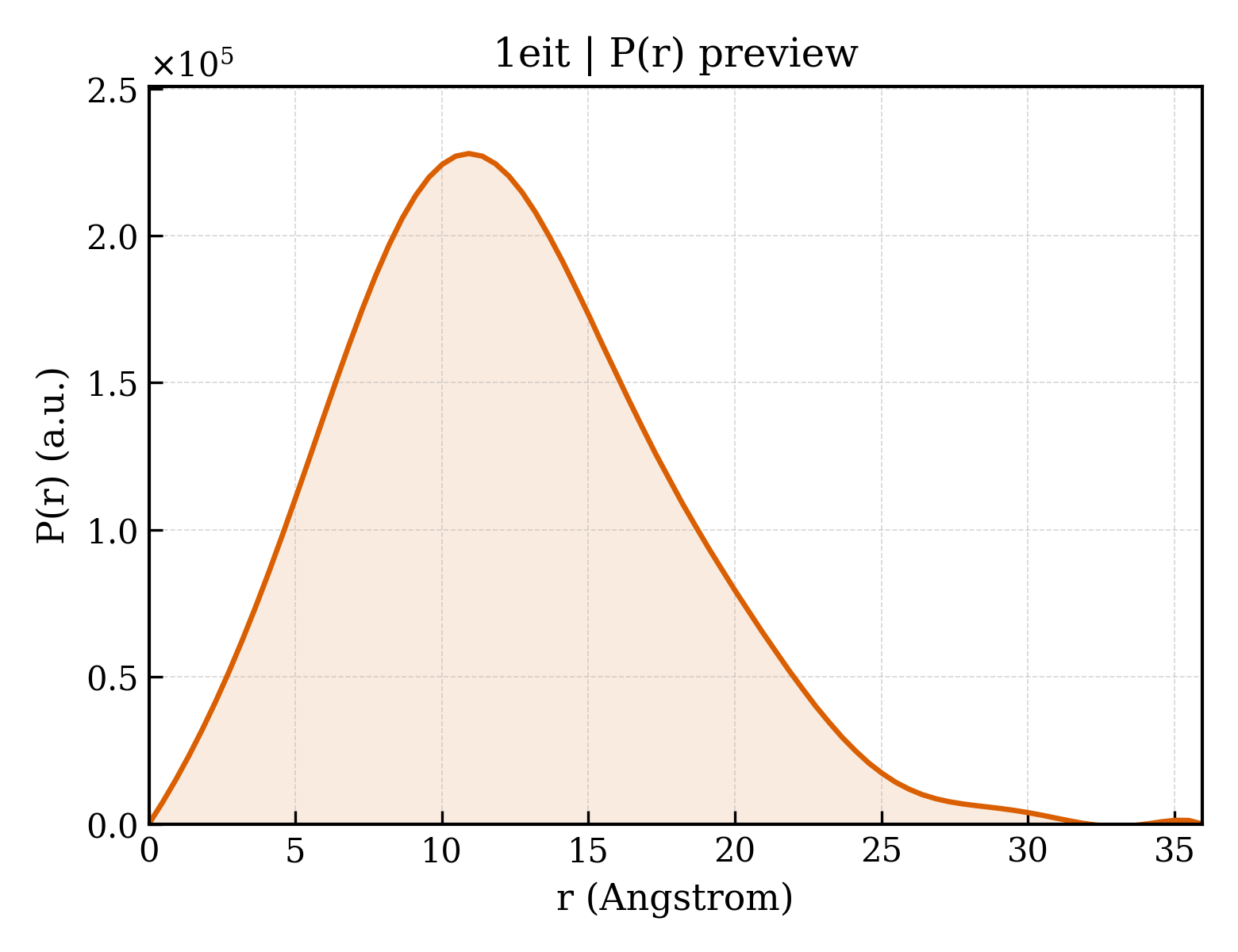

P(r) distribution for 1eit
▼

1. Structure Basics

entry_id1eit
deposition_date1995-12-14
titleNMR STUDY OF MU-AGATOXIN
keywordsNEUROTOXIN, EXCITATORY INSECT TOXIN; NEUROTOXIN
methodSOLUTION NMR
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier9.44 Å
rg_electron9.51 Å
i038614900.00
molecular_weight42698.0 kDa
excluded_volume49802 ų
envelope_volume10322 ų
shell_volume8131 ų
envelope_diameter37.7 Å
shell_rg16.47 Å
envelope_rg11.56 Å
shape_rg9.60 Å
total_rg9.67 Å
total_atoms5420
n_residues360
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax36.0 Å
rg_real9.46 Å
rg_real_error0.42 Å
i0_real3.8610e+07
i0_real_error3.9940e+05
rg_reciprocal9.45 Å
i0_reciprocal38610000.0000
total_estimate0.8069
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary10.9 Å
skewness0.417
kurtosis-0.037
angular_range— – 0.5000 Å−1
current_alpha0.0000
highest_alpha47470.0000
n_real_points80
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.597; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.759; Smooth: 0.936
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

▶

6. Citations (5)

▶

7. Files & Curves (10)
