1eiw
Solution structure of hypothetical protein MTH538 from Methanobacterium thermoautotrophicum

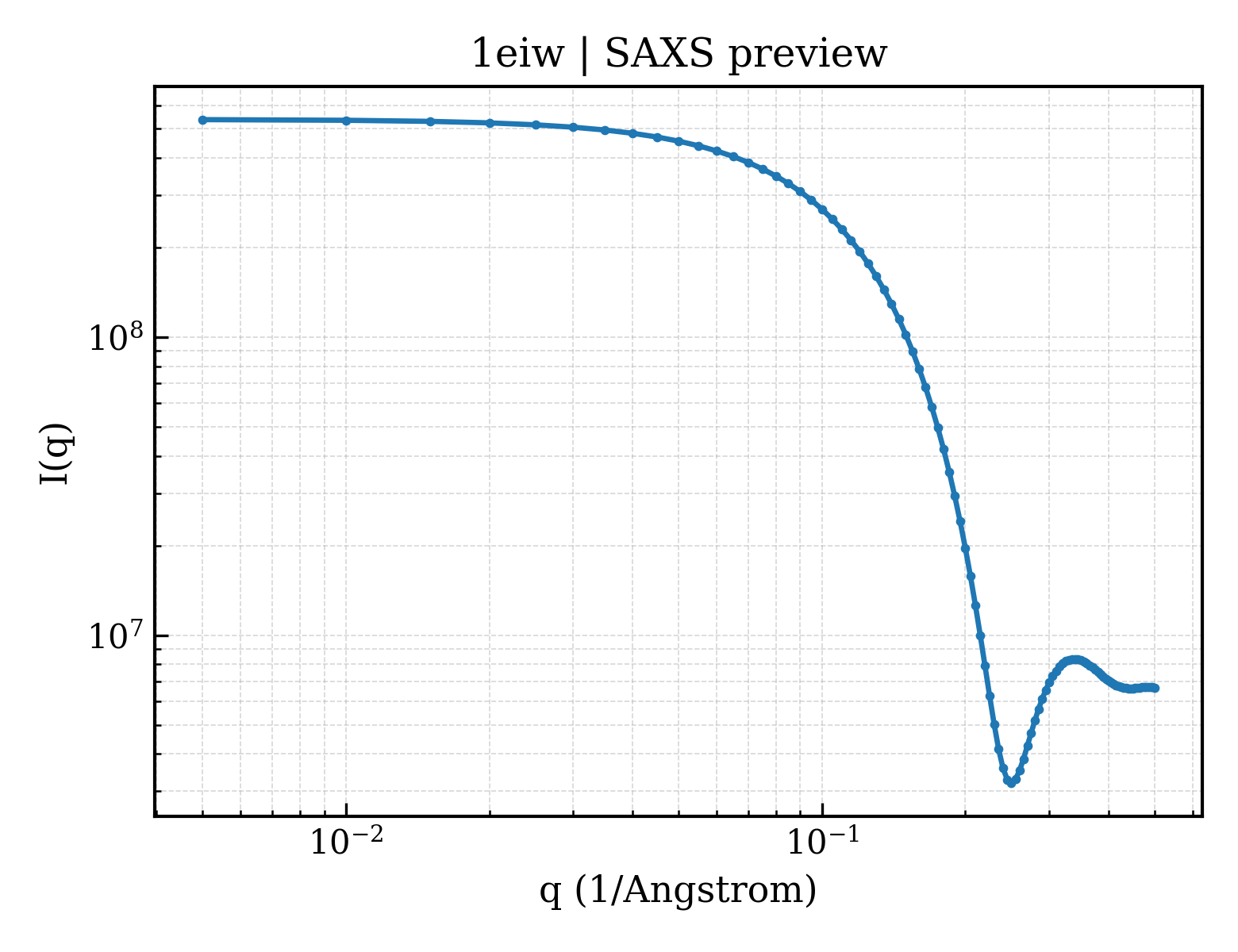

SAXS Profile

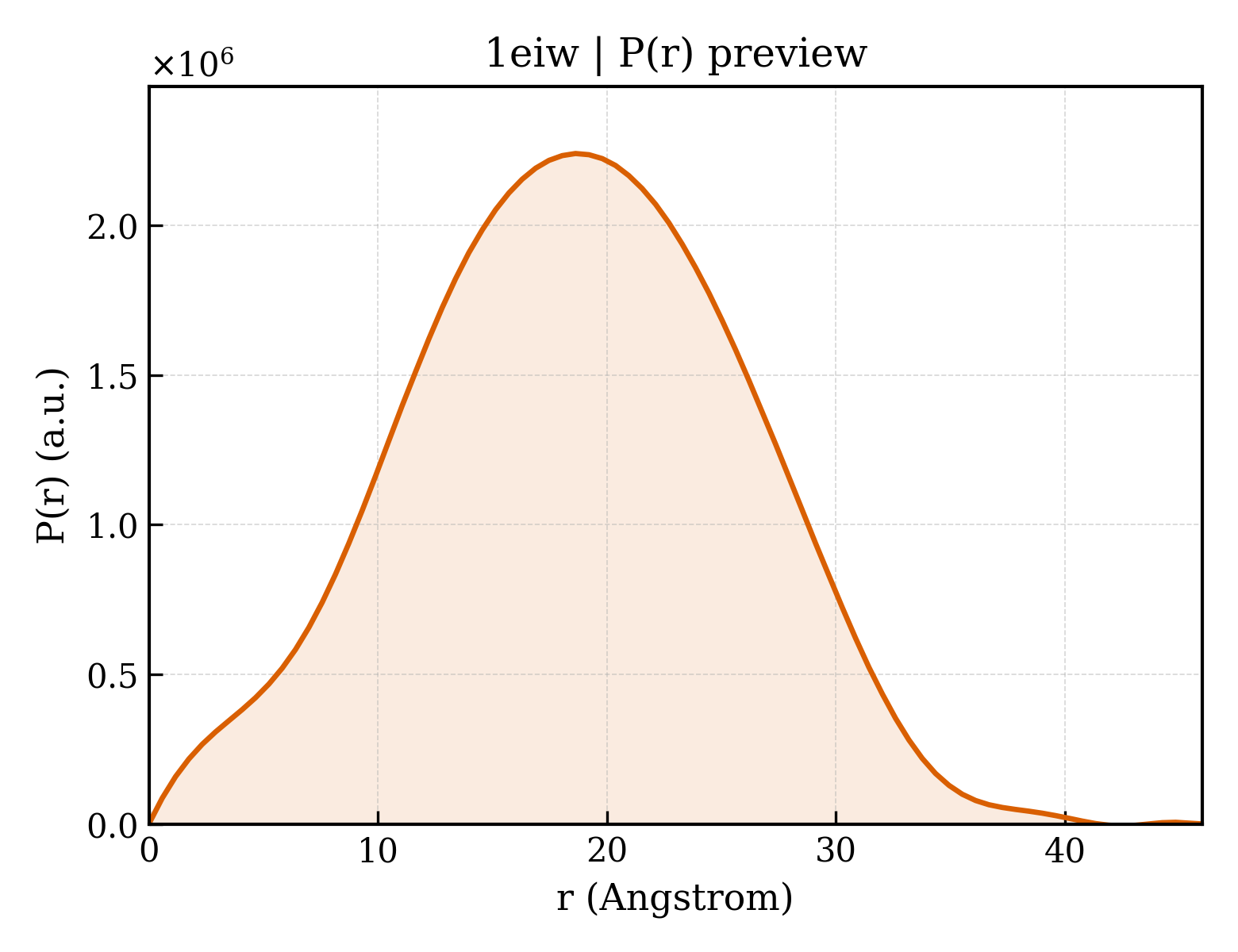

P(r) Distribution
1. Structure Basics
| entry_id | 1eiw |
| deposition_date | 2000-02-29 |
| title | Solution structure of hypothetical protein MTH538 from Methanobacterium thermoautotrophicum |
| keywords | ;CheY-like fold, flavodoxin-like fold, (a/b)5 doubly wound fold, parallel beta sheet, Structural Genomics, PSI, Protein Structure Initiative, Northeast Structural Genomics Consortium, NESG ;; STRUCTURAL GENOMICS |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.26 Å |
| rg_electron | 13.69 Å |
| i0 | 537851000.00 |
| molecular_weight | 197970.0 kDa |
| excluded_volume | 248500 ų |
| envelope_volume | 30238 ų |
| shell_volume | 15983 ų |
| envelope_diameter | 51.2 Å |
| shell_rg | 22.00 Å |
| envelope_rg | 15.88 Å |
| shape_rg | 13.67 Å |
| total_rg | 13.96 Å |
| total_atoms | 27856 |
| n_residues | 1776 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 46.0 Å |
| rg_real | 14.12 Å |
| rg_real_error | 0.30 Å |
| i0_real | 5.3790e+08 |
| i0_real_error | 5.7890e+06 |
| rg_reciprocal | 14.13 Å |
| i0_reciprocal | 537900000.0000 |
| total_estimate | 0.8678 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 18.6 Å |
| skewness | -0.027 |
| kurtosis | -0.381 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 484300.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.774; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.973 |
