1ejq
SOLUTION STRUCTURE OF THE SYNDECAN-4 WHOLE CYTOPLASMIC DOMAIN IN THE PRESENCE OF PHOSPHATIDYLINOSITOL 4,5-BISPHOSPHATE

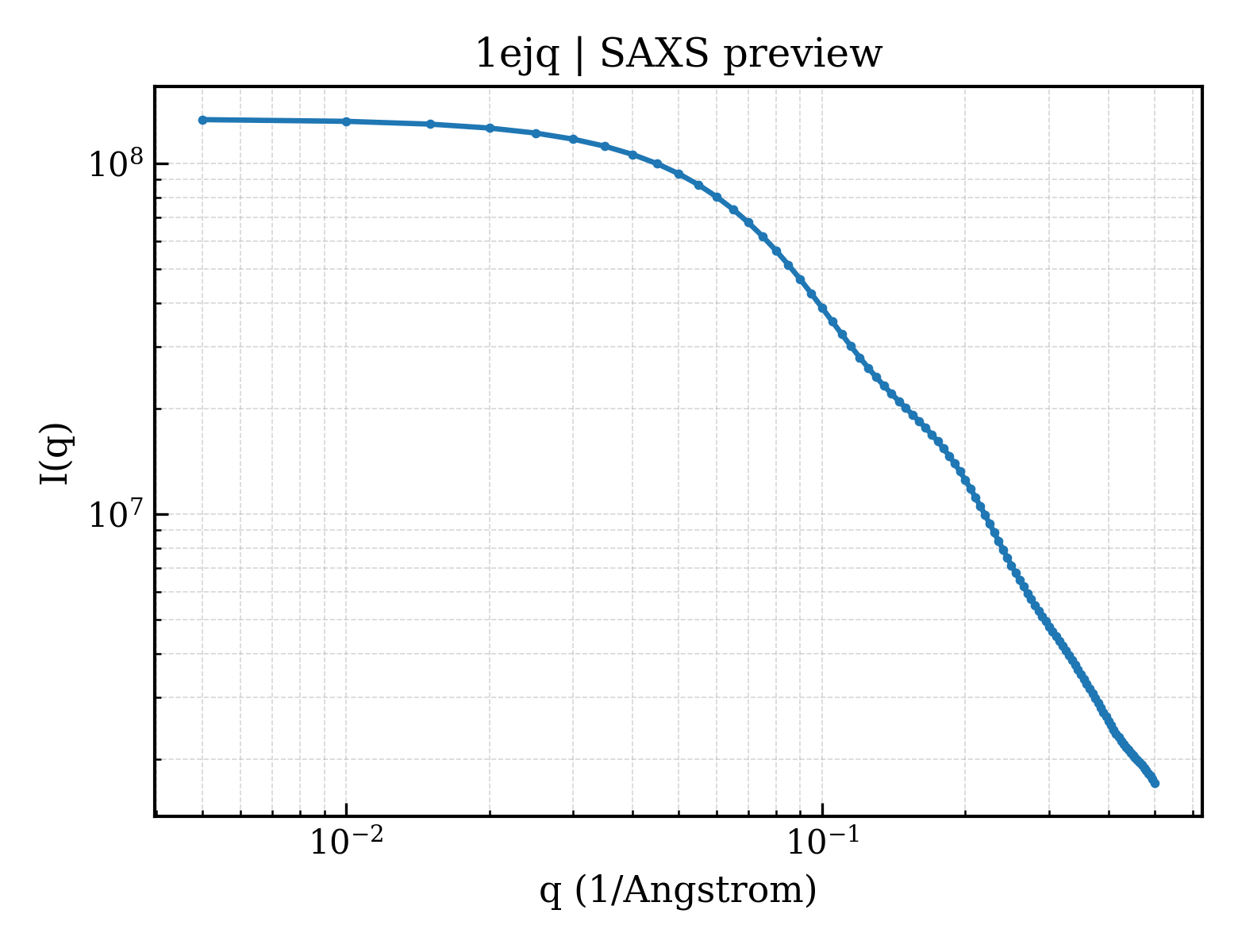

SAXS Profile

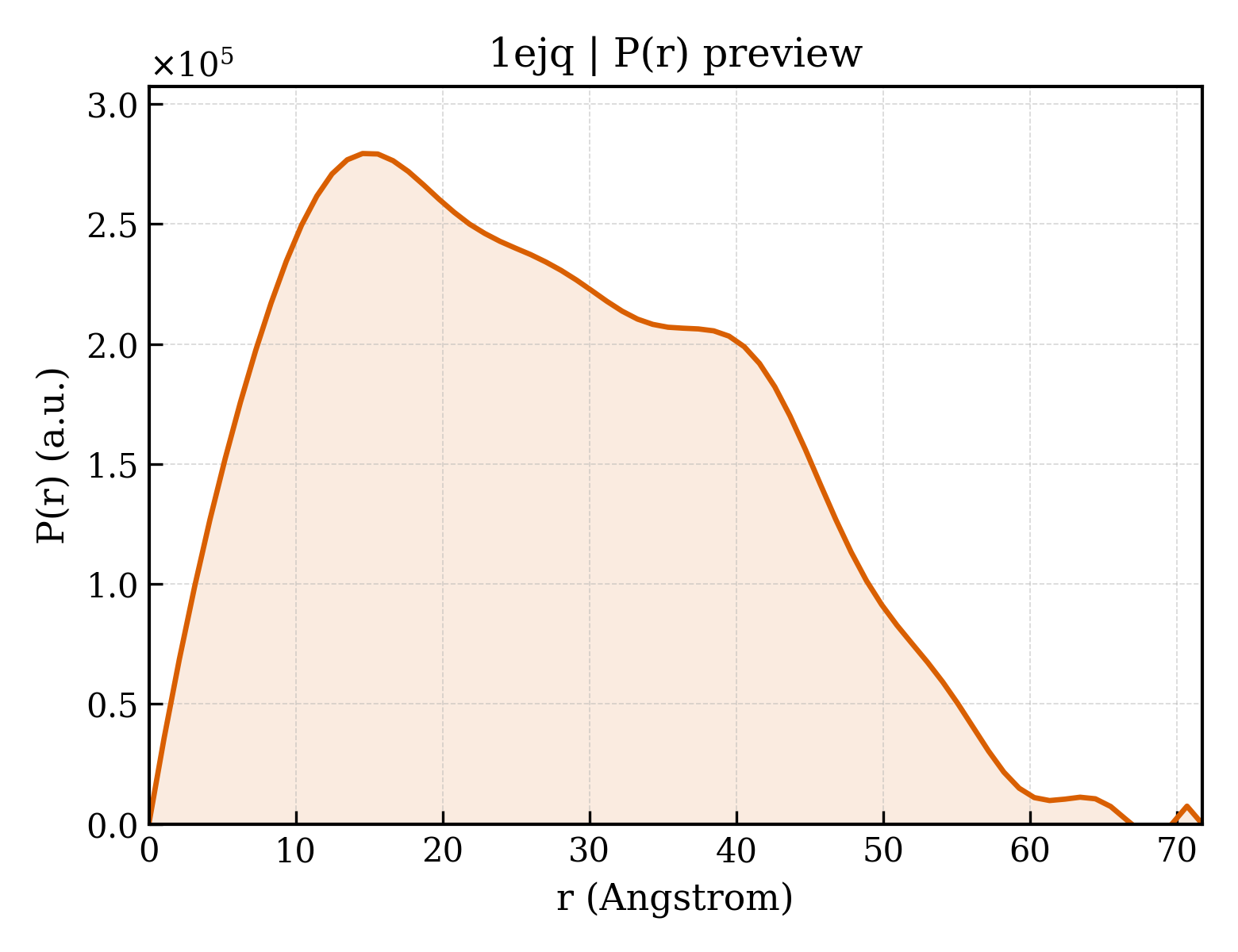

P(r) Distribution
1. Structure Basics
| entry_id | 1ejq |
| deposition_date | 2000-03-04 |
| title | SOLUTION STRUCTURE OF THE SYNDECAN-4 WHOLE CYTOPLASMIC DOMAIN IN THE PRESENCE OF PHOSPHATIDYLINOSITOL 4,5-BISPHOSPHATE |
| keywords | Symmetric dimer, complexed with PIP2, SIGNALING PROTEIN; SIGNALING PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 20.82 Å |
| rg_electron | 19.94 Å |
| i0 | 133764000.00 |
| molecular_weight | 99326.0 kDa |
| excluded_volume | 126410 ų |
| envelope_volume | 62630 ų |
| shell_volume | 21181 ų |
| envelope_diameter | 75.2 Å |
| shell_rg | 31.60 Å |
| envelope_rg | 24.86 Å |
| shape_rg | 19.87 Å |
| total_rg | 20.90 Å |
| total_atoms | 14220 |
| n_residues | 840 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 71.7 Å |
| rg_real | 21.03 Å |
| rg_real_error | 0.73 Å |
| i0_real | 1.3380e+08 |
| i0_real_error | 1.8030e+06 |
| rg_reciprocal | 21.00 Å |
| i0_reciprocal | 133800000.0000 |
| total_estimate | 0.7311 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 14.6 Å |
| skewness | 0.310 |
| kurtosis | -0.756 |
| angular_range | — – 0.3800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 77630.0000 |
| n_real_points | 70 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.712; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.364; Smooth: 0.000 |
