1ejw

CRYSTAL STRUCTURE OF WILD-TYPE KLEBSIELLA AEROGENES UREASE AT 298K

Method: X-RAY DIFFRACTION D_max: 97.4 Å Quality: GOOD

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	1ejw
deposition_date	2000-03-04
title	CRYSTAL STRUCTURE OF WILD-TYPE KLEBSIELLA AEROGENES UREASE AT 298K
keywords	alpha-beta barrel, nickel metalloenzyme, HYDROLASE; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	29.86 Å
rg_electron	28.97 Å
i0	111877000.00
molecular_weight	82504.0 kDa
excluded_volume	102830 Å³
envelope_volume	123820 Å³
shell_volume	36055 Å³
envelope_diameter	103.5 Å
shell_rg	35.87 Å
envelope_rg	29.20 Å
shape_rg	28.98 Å
total_rg	29.54 Å
total_atoms	5792
n_residues	766
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

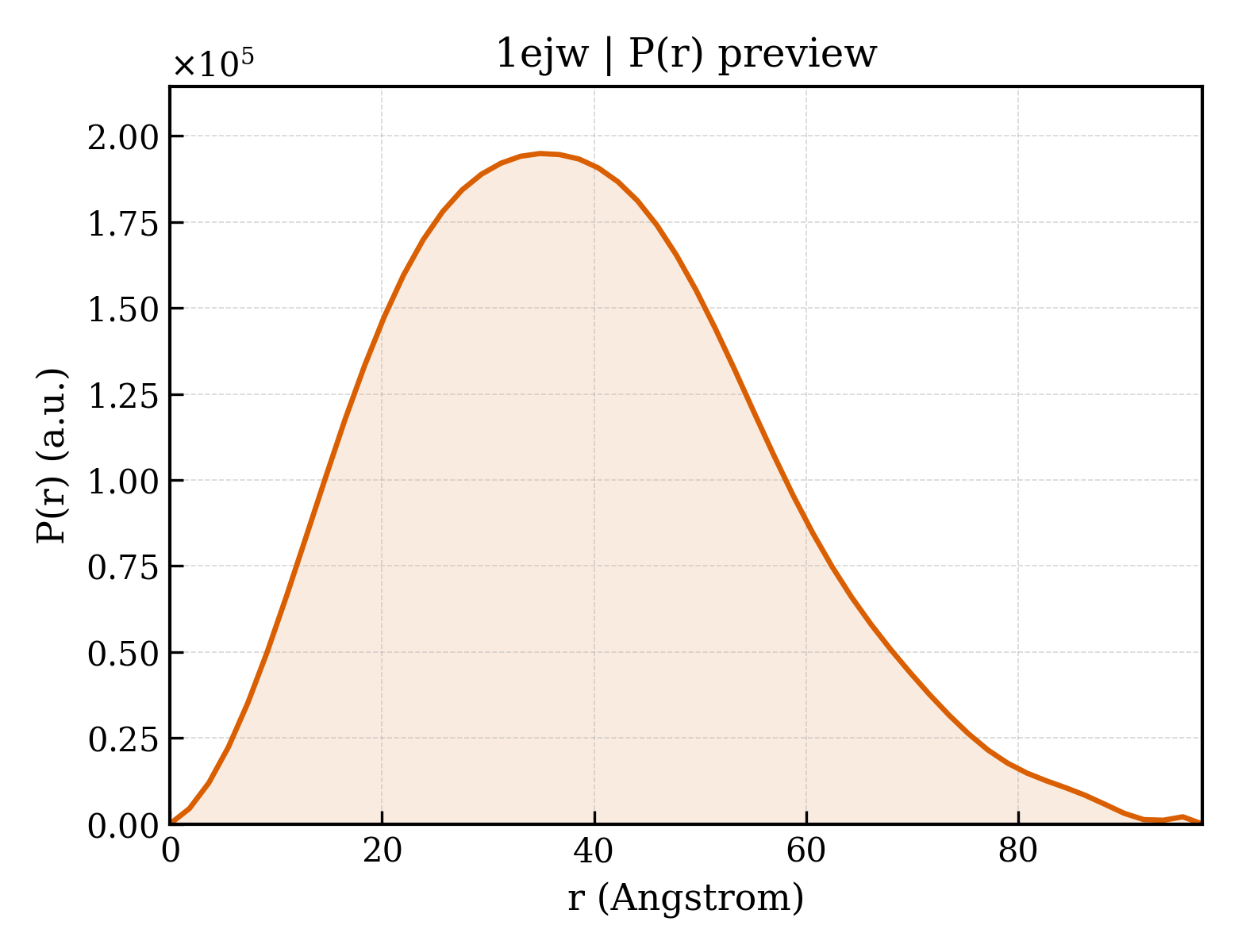

3. P(r) Analysis (GNOM)

dmax	97.4 Å
rg_real	29.87 Å
rg_real_error	0.67 Å
i0_real	1.1190e+08
i0_real_error	1.7080e+06
rg_reciprocal	29.86 Å
i0_reciprocal	111900000.0000
total_estimate	0.8854
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	34.9 Å
skewness	0.359
kurtosis	-0.287
angular_range	— – 0.2650 Å⁻¹
current_alpha	0.0000
highest_alpha	28670000.0000
n_real_points	54
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.899; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.817

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	UREASE ALPHA SUBUNIT
formula_weight	60409.4 kDa
ec_number	3.5.1.5
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C
atom_count	6198

MSNISRQAYADMFGPTVGDKVRLADTELWIEVEDDLTTYGEEVKFGGGKVIRDGMGQGQMLAADCVDLVLTNALIVDHWGIVKADIGVKDGRIFAIGKAGNPDIQPNVTIPIGAATEVIAAEGKIVTAGGIDTHIHWICPQQAEEALVSGVTTMVGGGTGPAAGTHATTCTPGPWYISRMLQAADSLPVNIGLLGKGNVSQPDALREQVAAGVIGLKIHEDWGATPAAIDCALTVADEMDIQVALHSDTLNESGFVEDTLAAIGGRTIHTFHTEGAGGGHAPDIITACAHPNILPSSTNPTLPYTLNTIDEHLDMLMVCHHLDPDIAEDVAFAESRIRRETIAAEDVLHDLGAFSLTSSDSQAMGRVGEVILRTWQVAHRMKVQRGALAEETGDNDNFRVKRYIAKYTINPALTHGIAHEVGSIEVGKLADLVVWSPAFFGVKPATVIKGGMIAIAPMGDINASIPTPQPVHYRPMFGALGSARHHCRLTFLSQAAAANGVAERLNLRSAIAVVKGCRTVQKADMVHNSLQPNITVDAQTYEVRVDGELITSEPADVLPMAQRYFLF

Source

organism	Klebsiella aerogenes
ncbi_taxonomy_id	28451
host_organism	Escherichia coli

Entity 2 polymer

description	UREASE BETA SUBUNIT
formula_weight	11125.7 kDa
ec_number	3.5.1.5
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MIPGEYHVKPGQIALNTGRATCRVVVENHGDRPIQVGSHYHFAEVNPALKFDRQQAAGYRLNIPAGTAVRFEPGQKREVELVAFAGHRAVFGFRGEVMGPL

Source

organism	Klebsiella aerogenes
ncbi_taxonomy_id	28451
host_organism	Escherichia coli

Entity 3 polymer

description	UREASE GAMMA SUBUNIT
formula_weight	11100.9 kDa
ec_number	3.5.1.5
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A

MELTPREKDKLLLFTAALVAERRLARGLKLNYPESVALISAFIMEGARDGKSVASLMEEGRHVLTREQVMEGVPEMIPDIQVEATFPDGSKLVTVHNPII

Source

organism	Klebsiella aerogenes
ncbi_taxonomy_id	28451
host_organism	Escherichia coli

Entity 4 non-polymer

description	NICKEL (II) ION
formula_weight	58.7 kDa
src_method	syn
entity_count	2

Entity 5 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	406

▶

6. Citations (1)

▶

length_a	170.800 Å
length_b	170.800 Å
length_c	170.800 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	24

space_group	I 21 3
int_tables_number	199
crystal_system	—

resolution	1.900 Å
resolution_low	10.000 Å
r_factor	—
r_work	0.1440
r_free	0.2000

fit	/app/data/saxs_computation/ej/1ejw/1ejw.fit
pddf	/app/data/pr_computation/ej/1ejw/1ejw.pr.out
profile	/app/data/saxs_computation/ej/1ejw/1ejw.dat

CRYSTAL STRUCTURE OF WILD-TYPE KLEBSIELLA AEROGENES UREASE AT 298K

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (5)

Entity 1 polymer

Polymer

Source

Entity 2 polymer

Polymer

Source

Entity 3 polymer

Polymer

Source

Entity 4 non-polymer

Entity 5 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)
