1ek8

CRYSTAL STRUCTURE OF THE RIBOSOME RECYCLING FACTOR (RRF) FROM ESCHERICHIA COLI

Method: X-RAY DIFFRACTION D_max: 92.8 Å Quality: REASONABLE

SAXS Profile

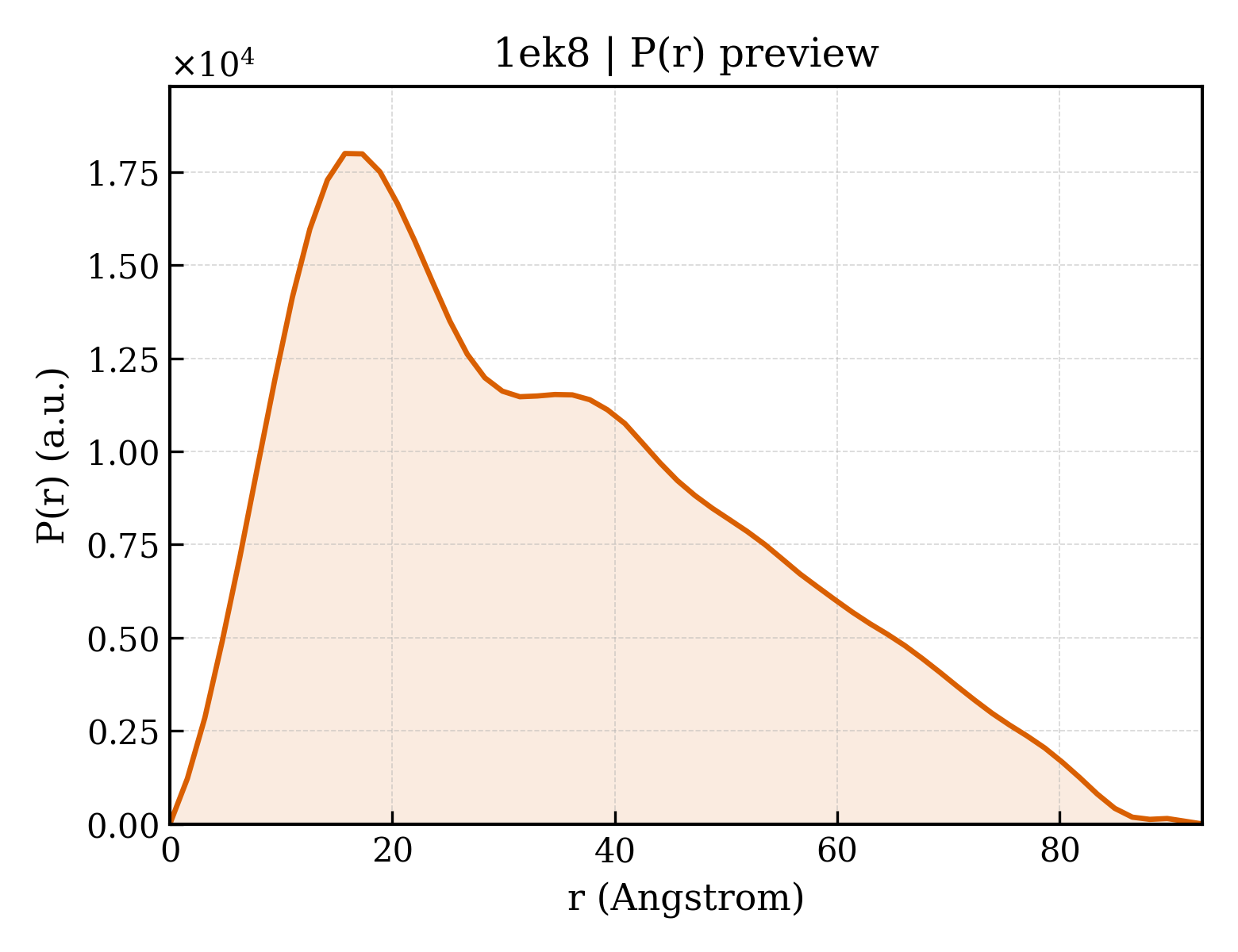

P(r) Distribution

▼

1. Structure Basics

entry_id	1ek8
deposition_date	2000-03-07
title	CRYSTAL STRUCTURE OF THE RIBOSOME RECYCLING FACTOR (RRF) FROM ESCHERICHIA COLI
keywords	ribosome, translation factor, t-RNA mimicry, coiled coil, TRANSLATION; TRANSLATION
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	26.70 Å
rg_electron	26.75 Å
i0	9126880.00
molecular_weight	21335.0 kDa
excluded_volume	26012 Å³
envelope_volume	34482 Å³
shell_volume	12863 Å³
envelope_diameter	92.1 Å
shell_rg	28.82 Å
envelope_rg	27.03 Å
shape_rg	26.70 Å
total_rg	27.16 Å
total_atoms	1453
n_residues	185
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	92.8 Å
rg_real	27.26 Å
rg_real_error	1.18 Å
i0_real	9.1270e+06
i0_real_error	1.3850e+05
rg_reciprocal	27.09 Å
i0_reciprocal	9126000.0000
total_estimate	0.6825
solution_quality	REASONABLE a REASONABLE solution
n_peaks	3
r_peak_primary	15.7 Å
skewness	0.560
kurtosis	-0.567
angular_range	— – 0.2950 Å⁻¹
current_alpha	0.0000
highest_alpha	653100.0000
n_real_points	60
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.323; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.051; Smooth: 0.854

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	RIBOSOME RECYCLING FACTOR
formula_weight	20671.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	1683

MISDIRKDAEVRMDKCVEAFKTQISKIRTGRASPSLLDGIVVEYYGTPTPLRQLASVTVEDSRTLKINVFDRSMSPAVEKAIMASDLGLNPNSAGSDIRVPLPPLTEERRKDLTKIVRGEAEQARVAVRNVRRDANDKVKALLKDKEISEDDDRRSQDDVQKLTDAAIKKIEAALADKEAELMQF

Source

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	Escherichia coli

Entity 2 non-polymer

description	MERCURY (II) ION
formula_weight	200.6 kDa
src_method	syn
entity_count	3

Entity 3 non-polymer

description	DECYLOXY-METHANOL
formula_weight	188.3 kDa
src_method	syn
entity_count	1

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	230

▶

6. Citations (2)

▶

length_a	48.064 Å
length_b	48.064 Å
length_c	142.273 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	6

space_group	P 31 2 1
int_tables_number	152
crystal_system	—

resolution	2.300 Å
resolution_low	20.000 Å
r_factor	0.2350
r_work	0.2280
r_free	0.2970
