SAXSdb — 1eke

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RIBONUCLEASE HII

Methanocaldococcus jannaschii

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RNH2_METJA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–230； UniProt 1–230 Author chain B； PDBConstruct 1–230； UniProt 1–230

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1eke
Deposition date deposition_date	2000-03-07
Structure title title	CRYSTAL STRUCTURE OF CLASS II RIBONUCLEASE H (RNASE HII) WITH MES LIGAND
Keywords keywords	;Nuclease, Endonuclease, Structural Genomics, BSGC structure funded by NIH, Protein Structure Initiative, PSI, Berkeley Structural Genomics Center, HYDROLASE ;; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1eke__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

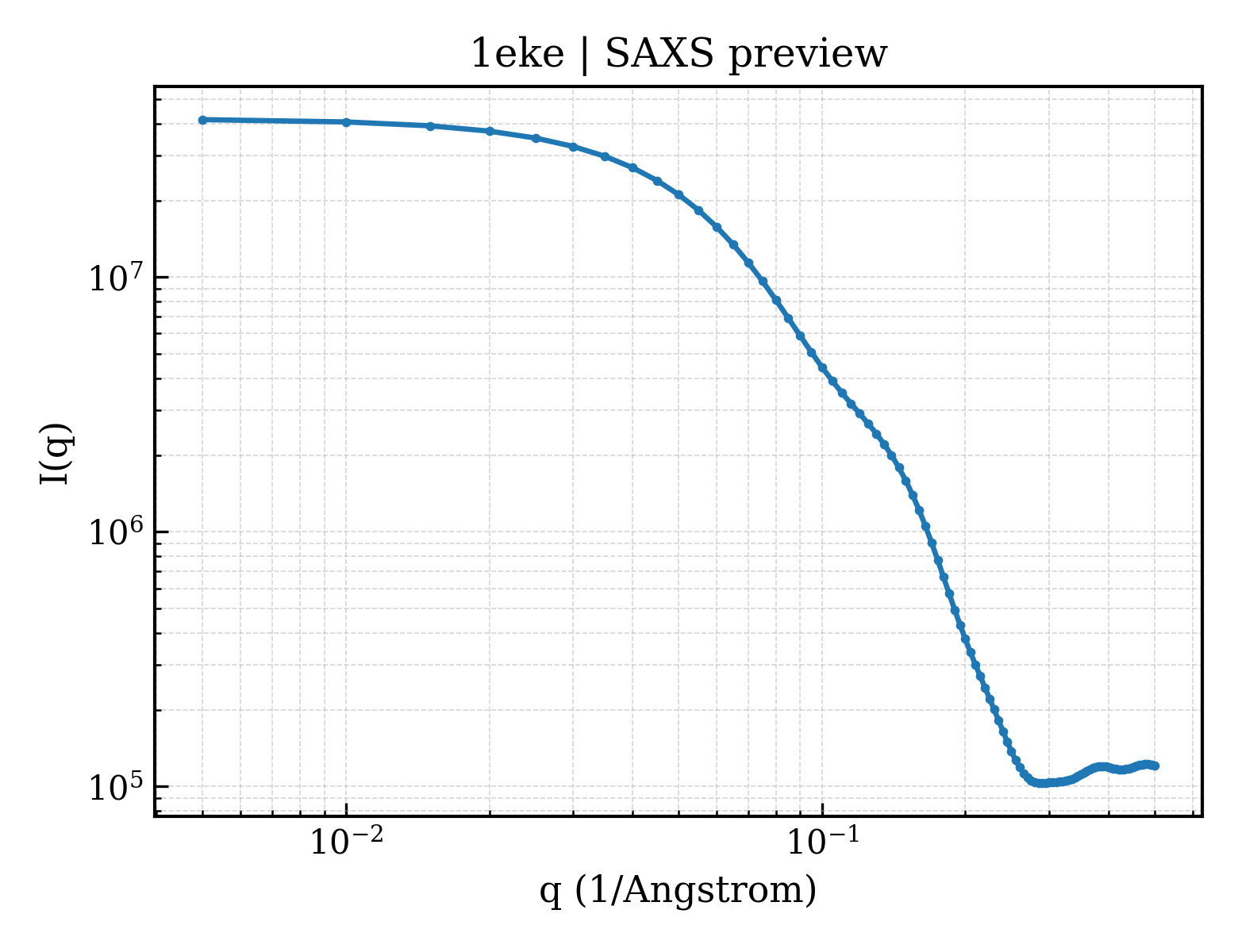

1eke__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

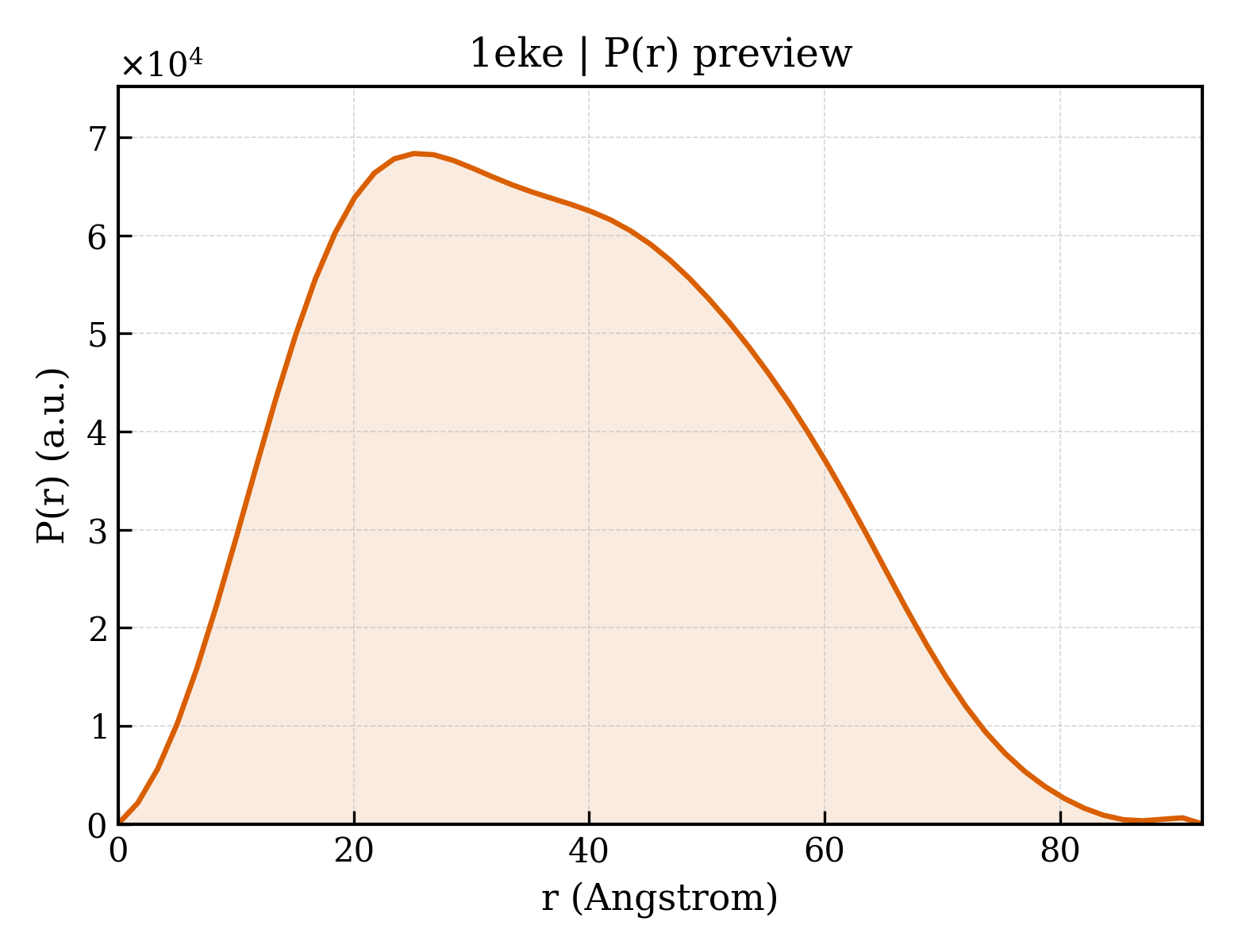

1eke__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.81 Å
Rg (electron density)	27.83 Å
Total Rg	28.58 Å
Atom count	3609
Residues	441
Excluded volume	65339 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1eke__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	RIBONUCLEASE HII
Molecular weight formula_weight	26693.6 kDa
EC 编号 ec_number	3.1.26.4
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3922

MIIIGIDEAGRGPVLGPMVVCAFAIEKEREEELKKLGVKDSKELTKNKRAYLKKLLENLGYVEKRILEAEEINQLMNSINLNDIEINAFSKVAKNLIEKLNIRDDEIEIYIDACSTNTKKFEDSFKDKIEDIIKERNLNIKIIAEHKADAKYPVVSAASIIAKAERDEIIDYYKKIYGDIGSGYPSDPKTIKFLEDYFKKHKKLPDIARTHWKTCKRILDKSKQTKLIIE

Source Source

Source organism organism	Methanocaldococcus jannaschii
NCBI taxonomy ID ncbi_taxonomy_id	2190
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	2-(N-MORPHOLINO)-ETHANESULFONIC ACID
Molecular weight formula_weight	195.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	313

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1ekea_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.3 — Ribonuclease H-like
Family Family family	c.55.3.1 — Ribonuclease H

Domain ID domain_id	d1ekeb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.3 — Ribonuclease H-like
Family Family family	c.55.3.1 — Ribonuclease H

CATH v4.4 (4 domains)

Domain ID domain_id	1ekeA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	10 — Ribonuclease H-like superfamily/Ribonuclease H

Domain ID domain_id	1ekeA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	460 — Ribonuclease hii. Domain 2

Domain ID domain_id	1ekeB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	10 — Ribonuclease H-like superfamily/Ribonuclease H

Domain ID domain_id	1ekeB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	460 — Ribonuclease hii. Domain 2

▶

Unit-cell length a length_a	61.484 Å
Unit-cell length b length_b	55.424 Å
Unit-cell length c length_c	72.145 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	111.85 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2100
R_work r_work	0.2100
R_free r_free	0.2620
