1el1
X-RAY CRYSTAL STRUCTURE ANALYSIS OF CANINE MILK LYSOZYME (HOLO-TYPE)

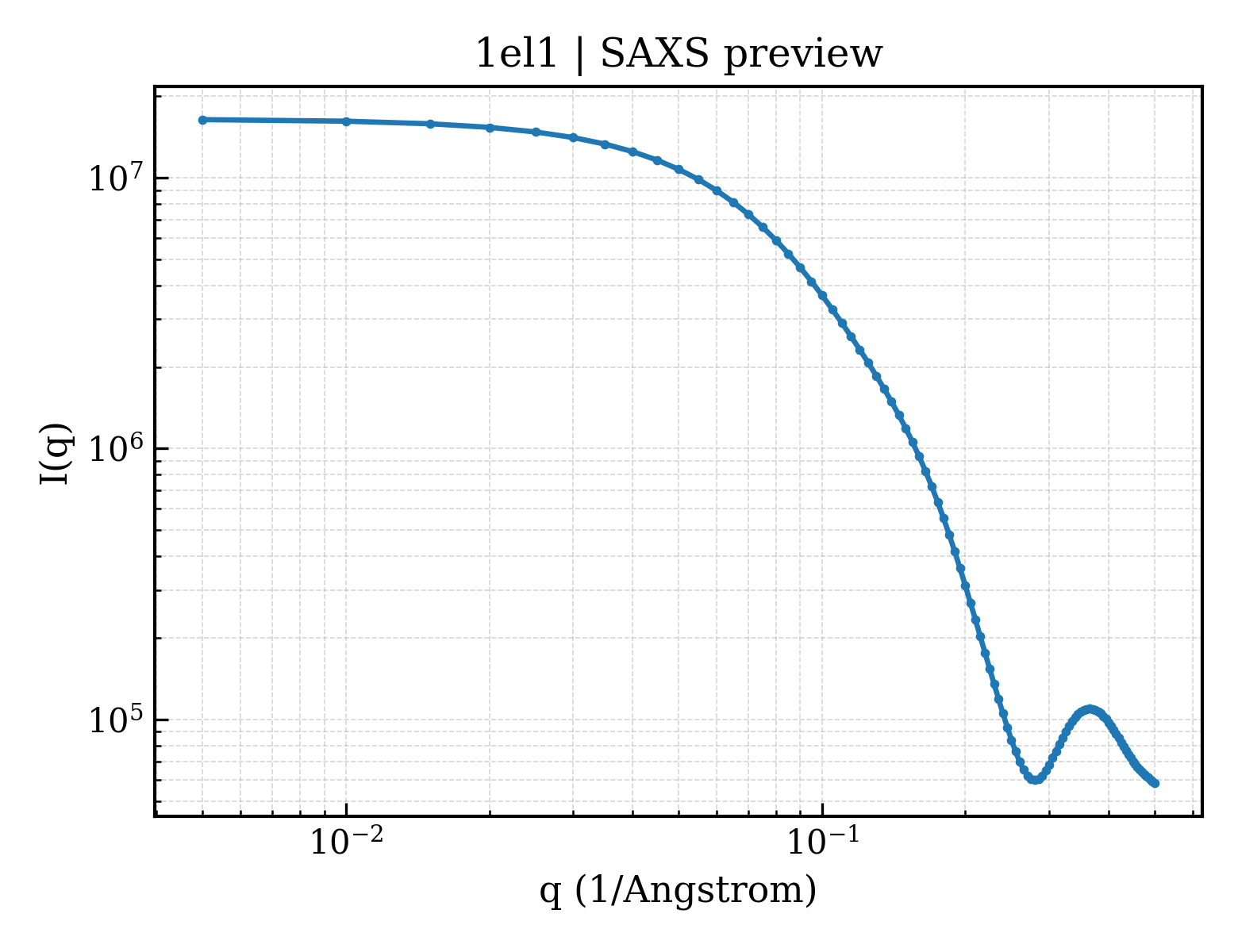

SAXS Profile

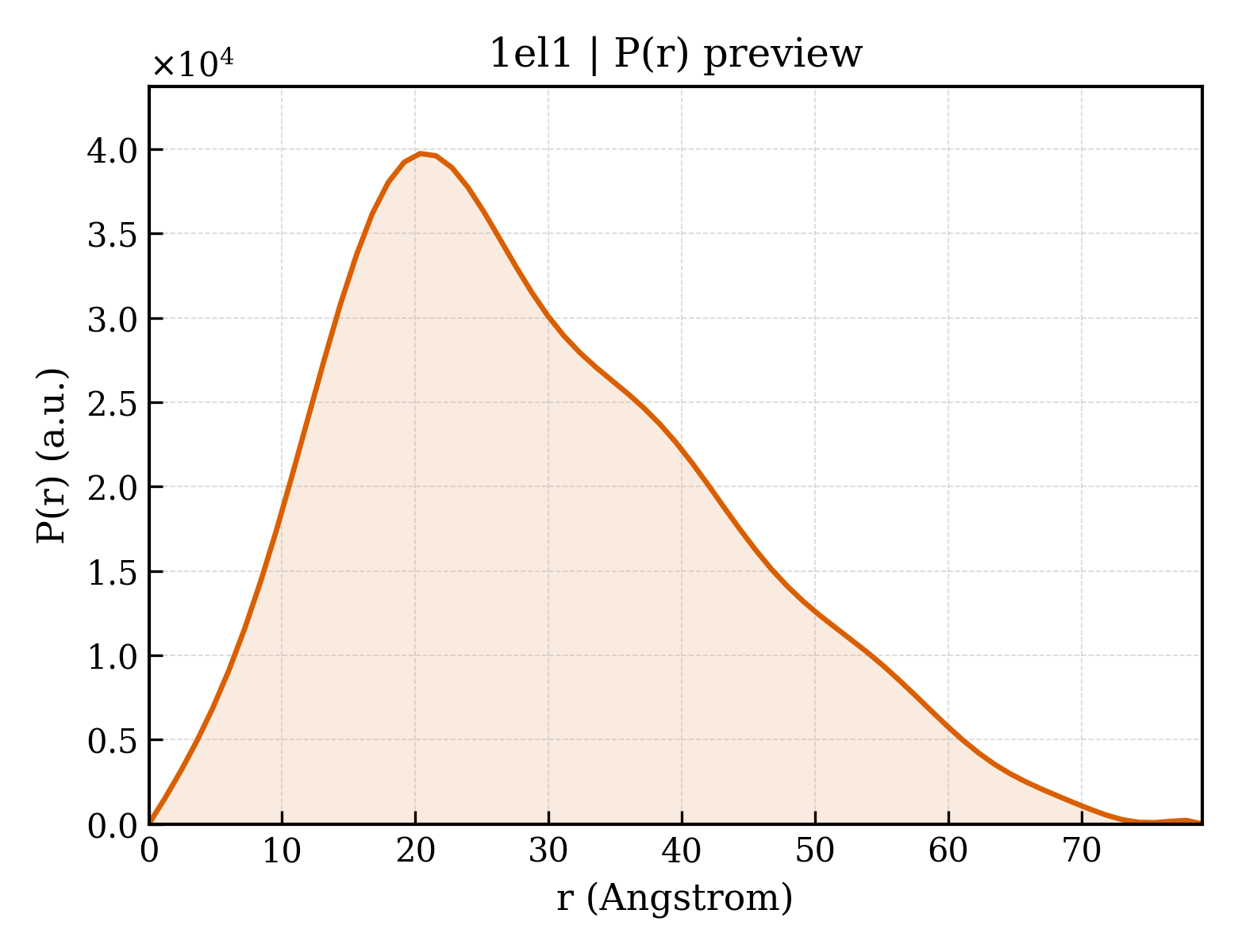

P(r) Distribution
1. Structure Basics
| entry_id | 1el1 |
| deposition_date | 2000-03-13 |
| title | X-RAY CRYSTAL STRUCTURE ANALYSIS OF CANINE MILK LYSOZYME (HOLO-TYPE) |
| keywords | Calcium binding lysozyme, Holo-form, C-type lysozyme, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 22.75 Å |
| rg_electron | 22.56 Å |
| i0 | 16450700.00 |
| molecular_weight | 29205.0 kDa |
| excluded_volume | 35832 ų |
| envelope_volume | 43009 ų |
| shell_volume | 17133 ų |
| envelope_diameter | 82.6 Å |
| shell_rg | 27.44 Å |
| envelope_rg | 22.71 Å |
| shape_rg | 22.55 Å |
| total_rg | 23.21 Å |
| total_atoms | 2034 |
| n_residues | 260 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 79.1 Å |
| rg_real | 22.94 Å |
| rg_real_error | 0.65 Å |
| i0_real | 1.6450e+07 |
| i0_real_error | 2.4570e+05 |
| rg_reciprocal | 22.89 Å |
| i0_reciprocal | 16450000.0000 |
| total_estimate | 0.8248 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 20.4 Å |
| skewness | 0.528 |
| kurtosis | -0.310 |
| angular_range | — – 0.3500 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 4241000.0000 |
| n_real_points | 67 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.663; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.764; Smooth: 0.966 |
