SAXSdb — 1elk

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TARGET OF MYB1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TOM1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–157； UniProt 1–153 Author chain B； PDBConstruct 5–157； UniProt 1–153

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1elk
Deposition date deposition_date	2000-03-13
Structure title title	VHS domain of TOM1 protein from H. sapiens
Keywords keywords	Superhelix of helices, ENDOCYTOSIS-EXOCYTOSIS COMPLEX; ENDOCYTOSIS/EXOCYTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1elk__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1elk__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

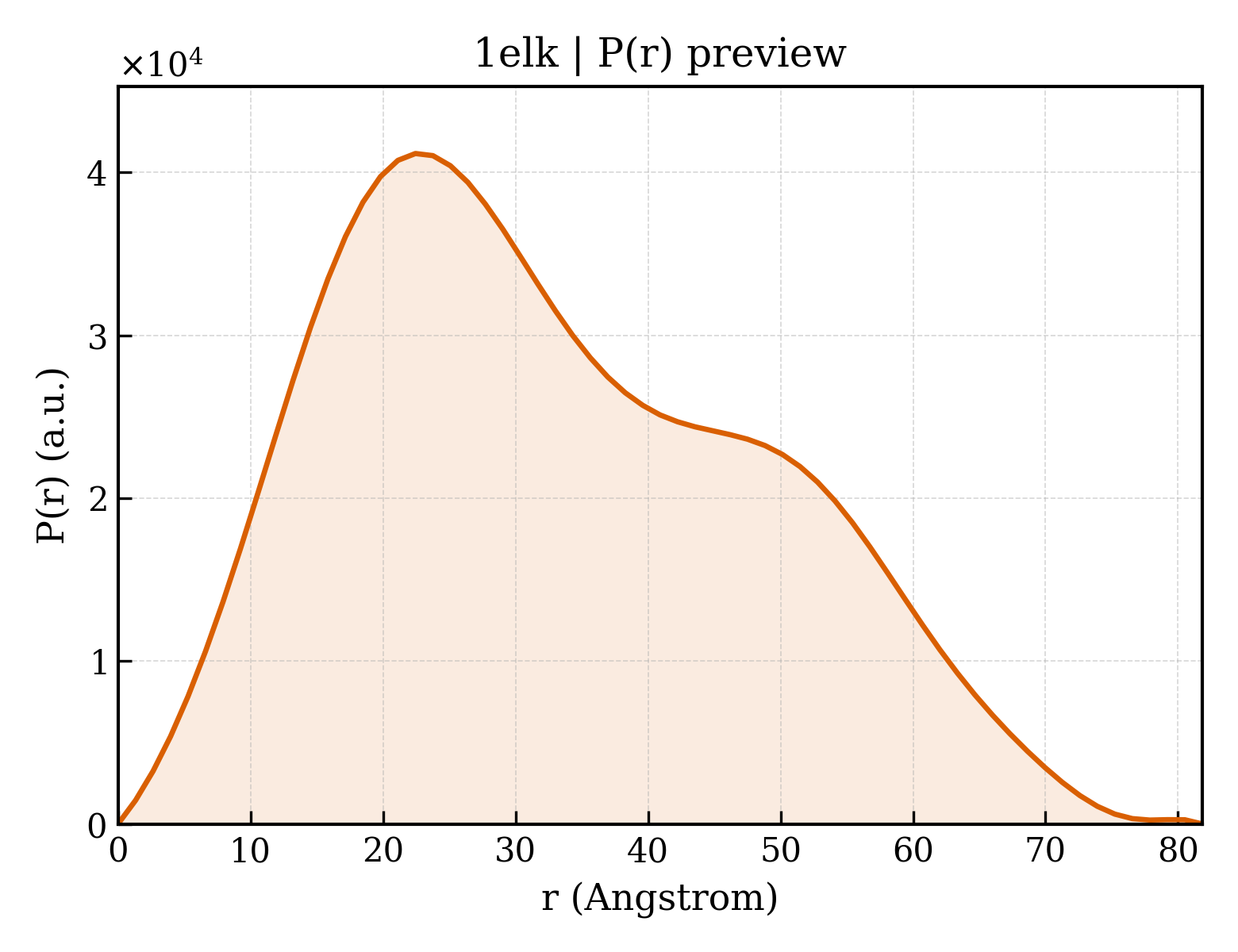

1elk__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	16.31 Å
Rg (electron density)	14.93 Å
Total Rg	16.02 Å
Atom count	1205
Residues	153
Excluded volume	21512 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1elk__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1elk__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1elka_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.9 — ENTH/VHS domain
Family Family family	a.118.9.2 — VHS domain

Domain ID domain_id	d1elkb_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.9 — ENTH/VHS domain
Family Family family	a.118.9.2 — VHS domain

CATH v4.4 (2 domains)

Domain ID domain_id	1elkA00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	90 —

Domain ID domain_id	1elkB00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	90 —

▶

Unit-cell length a length_a	42.070 Å
Unit-cell length b length_b	52.860 Å
Unit-cell length c length_c	73.220 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	99.75 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	15.670 Å
R factor r_factor	0.2010
R_work r_work	0.1930
R_free r_free	0.2210

Description description	TARGET OF MYB1
Molecular weight formula_weight	17484.0 kDa
Mutation mutation	M1G; C-TERMINAL CLONING ARTIFACT GAM
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2787

VHS domain of TOM1 protein from H. sapiens

1. Protein Identity and Related Structures Protein Identity & Related Structures

TARGET OF MYB1

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1elk__assembly_1__model_1

1elk__assembly_1__model_1 | I(q)

1elk__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

CATH v4.4 (2 domains)

7. Citations (2)

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	377
