SAXSdb — 1elw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TPR1-DOMAIN OF HOP

Homo sapiens

UniProt P31948

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–118	Fragment：N-TERMINAL DOMAIN	HSC70-PEPTIDE × 1 NI NICKEL (II) ION × 2 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；PEG MME 2000, TRIS, Nickel Chloride, Xylitol, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.60 Å R-free 0.215
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1–118	Fragment：N-TERMINAL DOMAIN	HSC70-PEPTIDE × 1 NI NICKEL (II) ION × 2 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；PEG MME 2000, TRIS, Nickel Chloride, Xylitol, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.60 Å R-free 0.215

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1ELW	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1ELR Crystal structure of the TPR2A domain of HOP in complex with the HSP90 peptide MEEVD Deposited 2000-03-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 222–352（131 aa） Fragment：MIDDLE DOMAIN	Not recorded	NI NICKEL (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；PEG MME 2000, TRIS, Nickel chloride, Xylitol, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.90 Å R-free 0.219
2LNI Solution NMR Structure of Stress-induced-phosphoprotein 1 STI1 from Homo sapiens, Northeast Structural Genomics Consortium Target HR4403E Deposited 2011-12-28	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 356–477（122 aa） Fragment：TPR repeats 7-9, residues 356-477	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.5；293 K；Pressure ambient NMR sample composition 0.807 mM [U-100% 13C; U-100% 15N] HR4403E, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.763 mM [U-5% 13C; U-100% 15N] HR4403E, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.4 mM [U-100% 13C; U-100% 15N] HR4403E, 100% D2O \| 100% D2O	Resolution not provided
2NC9 Apo solution structure of Hop TPR2A Deposited 2016-03-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 220–350（131 aa） Fragment：residues 280-350	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 70；Pressure ambient NMR sample composition 1.5 mM [U-13C; U-15N] protein, 20 mM sodium phosphate, 50 mM sodium chloride, 1 mM DTT, 0.01 % sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1.5 mM [U-13C; U-15N] protein, 20 mM sodium phosphate, 50 mM sodium chloride, 1 mM DTT, 0.01 % sodium azide, 100% D2O \| 100% D2O	Resolution not provided
3ESK Structure of HOP TPR2A domain in complex with the non-cognate Hsc70 peptide ligand Deposited 2008-10-06	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 222–349（128 aa） Fragment：TPR2A domain, UNP residues 223-350	Not recorded	NI NICKEL (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；298 K；TRIS pH 8.5, PEG MME 2000, NiCl2, Xylitol, VAPOR DIFFUSION, temperature 298K	Resolution 2.05 Å R-free 0.244
3FWV Crystal Structure of a Redesigned TPR Protein, T-MOD(VMY), in Complex with MEEVF Peptide Deposited 2009-01-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 223–349（127 aa） Fragment：TPR repeats 4-6	Not recorded	NI NICKEL (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；100 mM Tris pH 8.5, 30% PEG MME 2000, 5-10 mM NiCl2, 10% xylitol, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.244
3FWV Crystal Structure of a Redesigned TPR Protein, T-MOD(VMY), in Complex with MEEVF Peptide Deposited 2009-01-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 223–349（127 aa） Fragment：TPR repeats 4-6	Not recorded	NI NICKEL (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；100 mM Tris pH 8.5, 30% PEG MME 2000, 5-10 mM NiCl2, 10% xylitol, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.244
7KW7 Atomic cryoEM structure of Hsp90-Hsp70-Hop-GR Deposited 2020-11-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 1–543（543 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 K POTASSIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.57 Å
9QQU Crystal structure of an engineered TPR domain in complex with the HSP90 peptide MEEVD Deposited 2025-04-02	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 218–350（133 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；0.1M Sodium Acetate, pH 5.0 2.0 M Ammonium sulphate	Resolution 2.13 Å R-free 0.256

7 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	STIP1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–118； UniProt 1–118 Author chain B； PDBConstruct 1–118； UniProt 1–118

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1elw
Deposition date deposition_date	2000-03-14
Structure title title	Crystal structure of the TPR1 domain of HOP in complex with a HSC70 peptide
Keywords keywords	Hop, Tpr-Domain, Peptide-Complex, Helical Repeat, Hsc70, Hsp70, Protein Binding, CHAPERONE; CHAPERONE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	21.26 Å
Radius of gyration Rg (electron density) rg_electron	20.59 Å
Forward intensity I(0) i0	15909600.00
Molecular weight molecular_weight	28543.0 kDa
Excluded volume excluded_volume	35084 Å³
Envelope volume envelope_volume	41777 Å³
Hydration-shell volume shell_volume	17676 Å³
Envelope diameter envelope_diameter	71.4 Å
Shell Rg shell_rg	25.98 Å
Envelope Rg envelope_rg	20.69 Å
Shape Rg shape_rg	20.55 Å
Total Rg total_rg	21.44 Å
Total atoms total_atoms	1995
Residues n_residues	248
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	71.8 Å
Rg (real space) rg_real	21.30 Å
Rg uncertainty (real space) rg_real_error	0.59 Å
I(0) (real space) i0_real	1.5910e+07
I(0) uncertainty (real space) i0_real_error	2.1600e+05
Rg (reciprocal space) rg_reciprocal	21.29 Å
I(0) (reciprocal space) i0_reciprocal	15910000.0000
Solution quality estimate total_estimate	0.8815
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	70.7 Å
Skewness Skewness skewness	0.375
Kurtosis Kurtosis kurtosis	-0.356
Angular range angular_range	— – 0.3750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	6046000.0000
Real-space data points n_real_points	69
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.859; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.896; Smooth: 0.981

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	TPR1-DOMAIN OF HOP
Molecular weight formula_weight	13447.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2240

MEQVNELKEKGNKALSVGNIDDALQCYSEAIKLDPHNHVLYSNRSAAYAKKGDYQKAYEDGCKTVDLKPDWGKGYSRKAAALEFLNRFEEAKRTYEEGLKHEANNPQLKEGLQNMEAR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	HSC70-PEPTIDE
Molecular weight formula_weight	858.9 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

GPTIEEVD

Entity 3 Entity 3 non-polymer

Description description	NICKEL (II) ION
Molecular weight formula_weight	58.7 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
Molecular weight formula_weight	122.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	245

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1elwa_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.8 — TPR-like
Family Family family	a.118.8.1 — Tetratricopeptide repeat (TPR)

Domain ID domain_id	d1elwb_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.8 — TPR-like
Family Family family	a.118.8.1 — Tetratricopeptide repeat (TPR)

CATH v4.4 (2 domains)

Domain ID domain_id	1elwA00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	10 — Tetratricopeptide repeat domain

Domain ID domain_id	1elwB00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	10 — Tetratricopeptide repeat domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	75.470 Å
Unit-cell length b length_b	75.470 Å
Unit-cell length c length_c	42.890 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41
Space-group number int_tables_number	76
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	18.870 Å
R factor r_factor	0.1800
R_work r_work	0.1800
R_free r_free	0.2150

fit	/app/data/saxs_computation/el/1elw/1elw.fit
pddf	/app/data/pr_computation/el/1elw/1elw.pr.out
profile	/app/data/saxs_computation/el/1elw/1elw.dat

Crystal structure of the TPR1 domain of HOP in complex with a HSC70 peptide

1. Protein Identity and Related Structures Protein Identity & Related Structures

TPR1-DOMAIN OF HOP

State in the Current Structure

Other States of the Same Protein in the Database

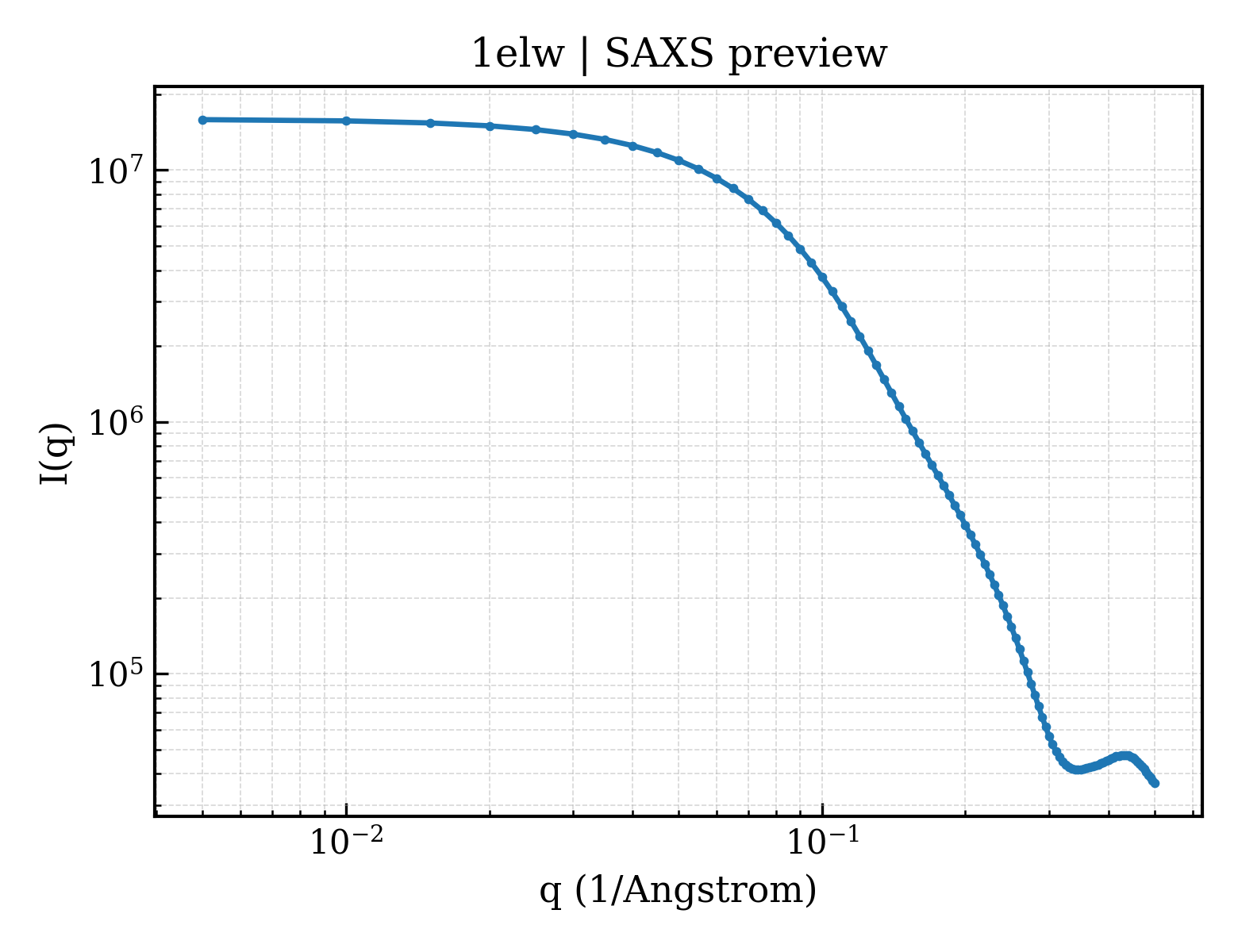

SAXS scattering curve SAXS Profile
