1elr
Crystal structure of the TPR2A domain of HOP in complex with the HSP90 peptide MEEVD
SAXS Profile

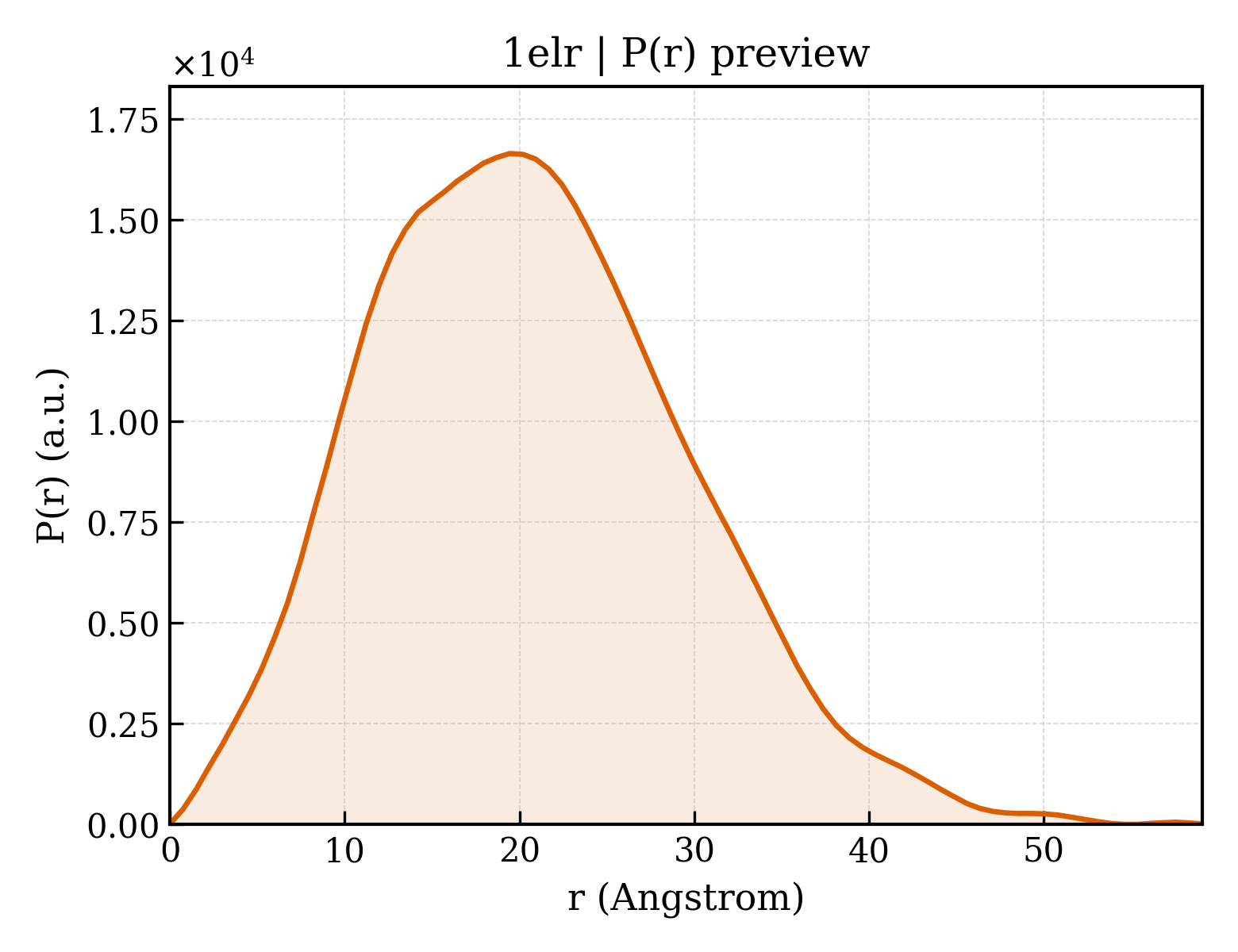

P(r) Distribution
1. Structure Basics
| entry_id | 1elr |
| deposition_date | 2000-03-14 |
| title | Crystal structure of the TPR2A domain of HOP in complex with the HSP90 peptide MEEVD |
| keywords | Hop, Tpr-Domain, Peptide-Complex, Helical Repeat, Hsp90, Protein Binding, CHAPERONE; CHAPERONE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.85 Å |
| rg_electron | 15.14 Å |
| i0 | 4814770.00 |
| molecular_weight | 15497.0 kDa |
| excluded_volume | 19298 ų |
| envelope_volume | 21762 ų |
| shell_volume | 12535 ų |
| envelope_diameter | 58.8 Å |
| shell_rg | 20.50 Å |
| envelope_rg | 15.57 Å |
| shape_rg | 15.08 Å |
| total_rg | 16.32 Å |
| total_atoms | 1087 |
| n_residues | 133 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 59.1 Å |
| rg_real | 15.85 Å |
| rg_real_error | 0.50 Å |
| i0_real | 4.8150e+06 |
| i0_real_error | 5.6390e+04 |
| rg_reciprocal | 15.85 Å |
| i0_reciprocal | 4815000.0000 |
| total_estimate | 0.8128 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 19.4 Å |
| skewness | 0.394 |
| kurtosis | -0.055 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1884000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.593; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.809; Smooth: 0.982 |
