1emz
SOLUTION STRUCTURE OF FRAGMENT (350-370) OF THE TRANSMEMBRANE DOMAIN OF HEPATITIS C ENVELOPE GLYCOPROTEIN E1

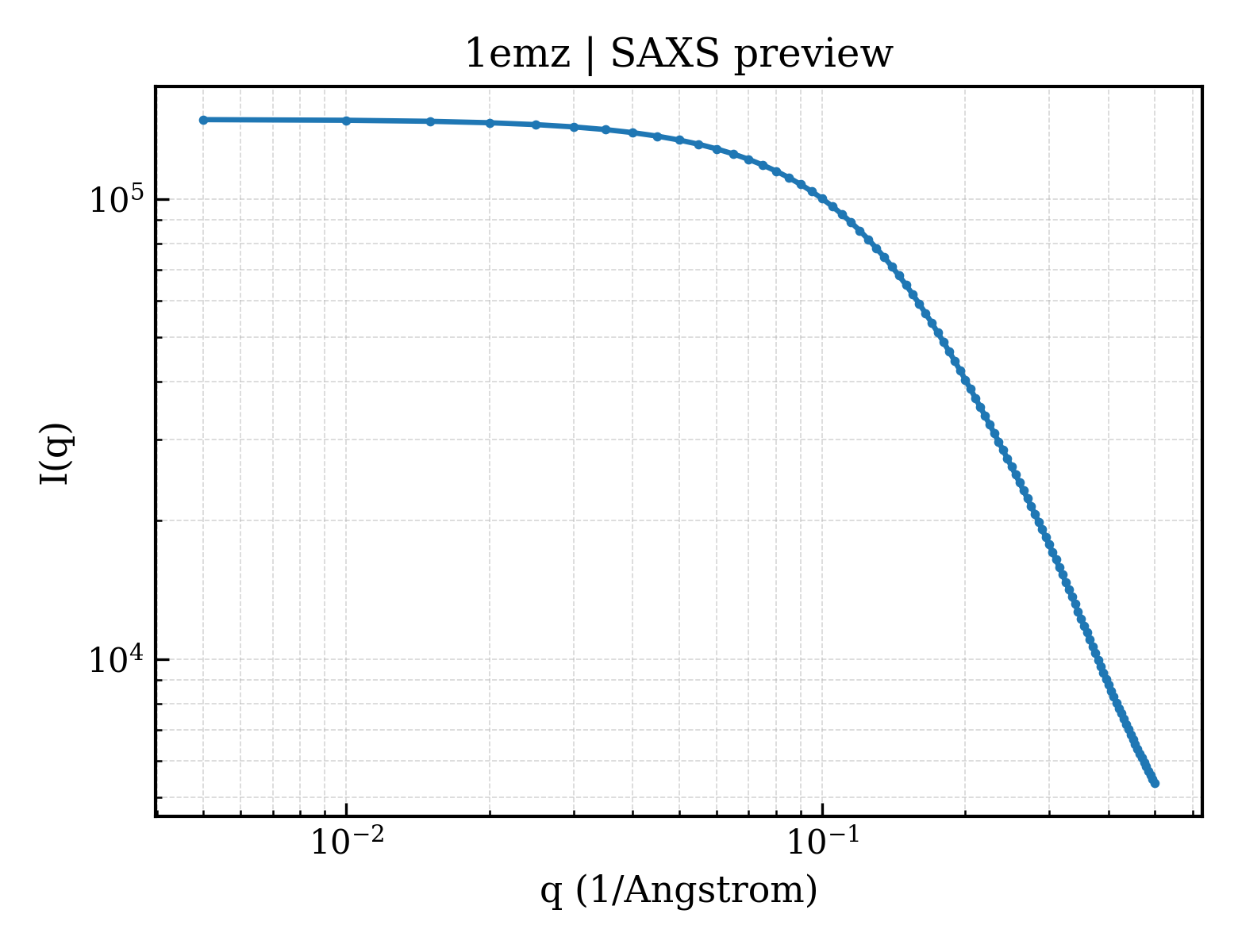

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1emz |
| deposition_date | 2000-03-20 |
| title | SOLUTION STRUCTURE OF FRAGMENT (350-370) OF THE TRANSMEMBRANE DOMAIN OF HEPATITIS C ENVELOPE GLYCOPROTEIN E1 |
| keywords | transmembrane domain, envelope protein E1, hepatitis C virus, Viral protein; VIRAL PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 10.96 Å |
| rg_electron | 10.01 Å |
| i0 | 148748.00 |
| molecular_weight | 2237.0 kDa |
| excluded_volume | 2845 ų |
| envelope_volume | 3469 ų |
| shell_volume | 3729 ų |
| envelope_diameter | 36.9 Å |
| shell_rg | 13.34 Å |
| envelope_rg | 10.57 Å |
| shape_rg | 9.97 Å |
| total_rg | 11.44 Å |
| total_atoms | 311 |
| n_residues | 21 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 40.8 Å |
| rg_real | 11.17 Å |
| rg_real_error | 0.45 Å |
| i0_real | 1.4870e+05 |
| i0_real_error | 1.7420e+03 |
| rg_reciprocal | 11.16 Å |
| i0_reciprocal | 148700.0000 |
| total_estimate | 0.7883 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 10.3 Å |
| skewness | 0.574 |
| kurtosis | -0.221 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 9326.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.673; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.227; Smooth: 0.999 |
