1en4

CRYSTAL STRUCTURE ANALYSIS OF THE E. COLI MANGANESE SUPEROXIDE DISMUTASE Q146H MUTANT

Method: X-RAY DIFFRACTION D_max: 111.1 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MANGANESE SUPEROXIDE DISMUTASE

Escherichia coli

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–205 Chain B； UniProt 1–205	Mutation：Q146H	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；20% w/v PEG 6000, 0.05 M bicine, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.00 Å R-free 0.192
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 1–205 Chain D； UniProt 1–205	Mutation：Q146H	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；20% w/v PEG 6000, 0.05 M bicine, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.00 Å R-free 0.192

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1EN4	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1D5N CRYSTAL STRUCTURE OF E. COLI MNSOD AT 100K Deposited 1999-10-08	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–205（205 aa） Chain B 1–205（205 aa）	Not recorded	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；pH 8.50	Resolution 1.55 Å R-free 0.233
1D5N CRYSTAL STRUCTURE OF E. COLI MNSOD AT 100K Deposited 1999-10-08	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–205（205 aa） Chain D 1–205（205 aa）	Not recorded	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；pH 8.50	Resolution 1.55 Å R-free 0.233
1EN5 CRYSTAL STRUCTURE ANALYSIS OF THE E. COLI MANGANESE SUPEROXIDE DISMUTASE Y34F MUTANT Deposited 2000-03-20	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–205（205 aa） Chain B 1–205（205 aa）	Mutation：Y34F Mutation：Y34F	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.3；298 K；20% w/v PEG 6000, 0.1 M bicine, 25 mM sodium azide, pH 8.3, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.30 Å R-free 0.195
1EN5 CRYSTAL STRUCTURE ANALYSIS OF THE E. COLI MANGANESE SUPEROXIDE DISMUTASE Y34F MUTANT Deposited 2000-03-20	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–205（205 aa） Chain D 1–205（205 aa）	Mutation：Y34F Mutation：Y34F	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.3；298 K；20% w/v PEG 6000, 0.1 M bicine, 25 mM sodium azide, pH 8.3, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.30 Å R-free 0.195
1EN6 CRYSTAL STRUCTURE ANALYSIS OF THE E. COLI MANGANESE SUPEROXIDE DISMUTASE Q146L MUTANT Deposited 2000-03-20	Different mutation/modification Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–205（205 aa） Chain B 1–205（205 aa）	Mutation：Q146L Mutation：Q146L	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；20% w/v PEG 6000, 0.05 M bicine, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.00 Å R-free 0.207
1EN6 CRYSTAL STRUCTURE ANALYSIS OF THE E. COLI MANGANESE SUPEROXIDE DISMUTASE Q146L MUTANT Deposited 2000-03-20	Different mutation/modification Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–205（205 aa） Chain D 1–205（205 aa）	Mutation：Q146L Mutation：Q146L	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；20% w/v PEG 6000, 0.05 M bicine, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.00 Å R-free 0.207
1I08 CRYSTAL STRUCTURE ANALYSIS OF THE H30A MUTANT OF MANGANESE SUPEROXIDE DISMUTASE FROM E. COLI Deposited 2001-01-29	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–205（205 aa） Chain B 1–205（205 aa）	Mutation：H30A Mutation：H30A	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；16-20% PEG 6000, 0.1 M bicine, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.20 Å R-free 0.211
1I08 CRYSTAL STRUCTURE ANALYSIS OF THE H30A MUTANT OF MANGANESE SUPEROXIDE DISMUTASE FROM E. COLI Deposited 2001-01-29	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–205（205 aa） Chain D 1–205（205 aa）	Mutation：H30A Mutation：H30A	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；16-20% PEG 6000, 0.1 M bicine, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.20 Å R-free 0.211
1I0H CRYSTAL STRUCTURE OF THE E. COLI MANGANESE SUPEROXIDE DISMUTASE MUTANT Y174F AT 1.35 ANGSTROMS RESOLUTION. Deposited 2001-01-29	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–205（205 aa） Chain B 1–205（205 aa）	Mutation：Y174F Mutation：Y174F	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；298 K；16-20% PEG 6000, 0.1M bicine ph 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.35 Å R-free 0.196
1IX9 Crystal Structure of the E. coli Manganase(III) superoxide dismutase mutant Y174F at 0.90 angstroms resolution. Deposited 2002-06-17	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–205（205 aa） Chain B 1–205（205 aa）	Mutation：Y174F Mutation：Y174F	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；16-20% PEG6000, 0.1M BICINE, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 0.90 Å R-free 0.127
1IXB CRYSTAL STRUCTURE OF THE E. COLI MANGANESE(II) SUPEROXIDE DISMUTASE MUTANT Y174F AT 0.90 ANGSTROMS RESOLUTION. Deposited 2002-06-18	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–205（205 aa） Chain B 1–205（205 aa）	Mutation：Y174F Mutation：Y174F	MH2 MANGANESE ION, 1 HYDROXYL COORDINATED × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；16-20% PEG6000, 0.1M BICINE. CRYSTALS WERE REDUCED JUST PRIOR TO FREEZING BY ADDITION OF 10% H2O2 (1 PART to 40 PARTS MOTHER LIQUOR), pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 0.90 Å R-free 0.126
1MMM DISTINCT METAL ENVIRONMENT IN IRON-SUBSTITUTED MANGANESE SUPEROXIDE DISMUTASE PROVIDES A STRUCTURAL BASIS OF METAL SPECIFICITY Deposited 1998-08-26	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–205（205 aa） Chain B 1–205（205 aa）	Not recorded	OH HYDROXIDE ION × 3 FE FE (III) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.75；pH 8.75	Resolution 2.20 Å R-free 0.231
1VEW MANGANESE SUPEROXIDE DISMUTASE FROM ESCHERICHIA COLI Deposited 1998-01-20	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–205（205 aa） Chain B 1–205（205 aa）	Not recorded	MN MANGANESE (II) ION × 2 OH HYDROXIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；CRYSTALS WERE GROWN AT ROOM TEMPERATURE USING THE HANGING DROP METHOD. THE HANGING DROPS WERE SUSPENDED OVER 0.75ML OF WELL SOLUTION (16-30% PEG6000 AND 0.05M BICINE TITRATED TO PH8.5) AND CONSISTED OF 2UL OF WELL SOLUTION AND 2UL OF PROTEIN SOLUTION (MNSOD AT 12MG/ML IN WATER)., vapor diffusion - hanging drop	Resolution 2.10 Å R-free 0.210
1VEW MANGANESE SUPEROXIDE DISMUTASE FROM ESCHERICHIA COLI Deposited 1998-01-20	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–205（205 aa） Chain D 1–205（205 aa）	Not recorded	MN MANGANESE (II) ION × 2 OH HYDROXIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；CRYSTALS WERE GROWN AT ROOM TEMPERATURE USING THE HANGING DROP METHOD. THE HANGING DROPS WERE SUSPENDED OVER 0.75ML OF WELL SOLUTION (16-30% PEG6000 AND 0.05M BICINE TITRATED TO PH8.5) AND CONSISTED OF 2UL OF WELL SOLUTION AND 2UL OF PROTEIN SOLUTION (MNSOD AT 12MG/ML IN WATER)., vapor diffusion - hanging drop	Resolution 2.10 Å R-free 0.210
1ZLZ Re-Evaluation of the Low-Temperature Azide in Mn-Dependent Superoxide Dismutase Deposited 2005-05-09	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–205（205 aa） Chain B 1–205（205 aa）	Mutation：Y174F Mutation：Y174F	AZI AZIDE ION × 2 MH2 MANGANESE ION, 1 HYDROXYL COORDINATED × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；298 K；PEG 6000, MPD, TRIS buffer, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.55 Å R-free 0.222
3K9S Crystal structure of the peroxide-bound manganese superoxide dismutase. Deposited 2009-10-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–206（205 aa） Chain B 2–206（205 aa）	Not recorded	MN MANGANESE (II) ION × 2 PEO HYDROGEN PEROXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；50 mM Bicine pH 8.5, 25% PEG 6000, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.55 Å R-free 0.270
3K9S Crystal structure of the peroxide-bound manganese superoxide dismutase. Deposited 2009-10-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 2–206（205 aa） Chain D 2–206（205 aa）	Not recorded	MN MANGANESE (II) ION × 2 PEO HYDROGEN PEROXIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；50 mM Bicine pH 8.5, 25% PEG 6000, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.55 Å R-free 0.270
3OT7 Escherichia coli apo-manganese superoxide dismutase Deposited 2010-09-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–206（205 aa） Chain B 2–206（205 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；20% PEG 6000, 0.1M Bicine, 1mM EDTA, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.90 Å R-free 0.236
3OT7 Escherichia coli apo-manganese superoxide dismutase Deposited 2010-09-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 2–206（205 aa） Chain D 2–206（205 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；20% PEG 6000, 0.1M Bicine, 1mM EDTA, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.90 Å R-free 0.236

12 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SODM_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–205； UniProt 1–205 Author chain B； PDBConstruct 1–205； UniProt 1–205 Author chain C； PDBConstruct 1–205； UniProt 1–205 Author chain D； PDBConstruct 1–205； UniProt 1–205

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1en4
Deposition date deposition_date	2000-03-20
Structure title title	CRYSTAL STRUCTURE ANALYSIS OF THE E. COLI MANGANESE SUPEROXIDE DISMUTASE Q146H MUTANT
Keywords keywords	proton shuttle, Q146H, mutant, manganese superoxide dismutase, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	34.27 Å
Radius of gyration Rg (electron density) rg_electron	34.06 Å
Forward intensity I(0) i0	130326000.00
Molecular weight molecular_weight	92112.0 kDa
Excluded volume excluded_volume	115440 Å³
Envelope volume envelope_volume	149670 Å³
Hydration-shell volume shell_volume	37672 Å³
Envelope diameter envelope_diameter	117.0 Å
Shell Rg shell_rg	39.64 Å
Envelope Rg envelope_rg	33.22 Å
Shape Rg shape_rg	34.06 Å
Total Rg total_rg	34.50 Å
Total atoms total_atoms	6520
Residues n_residues	820
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

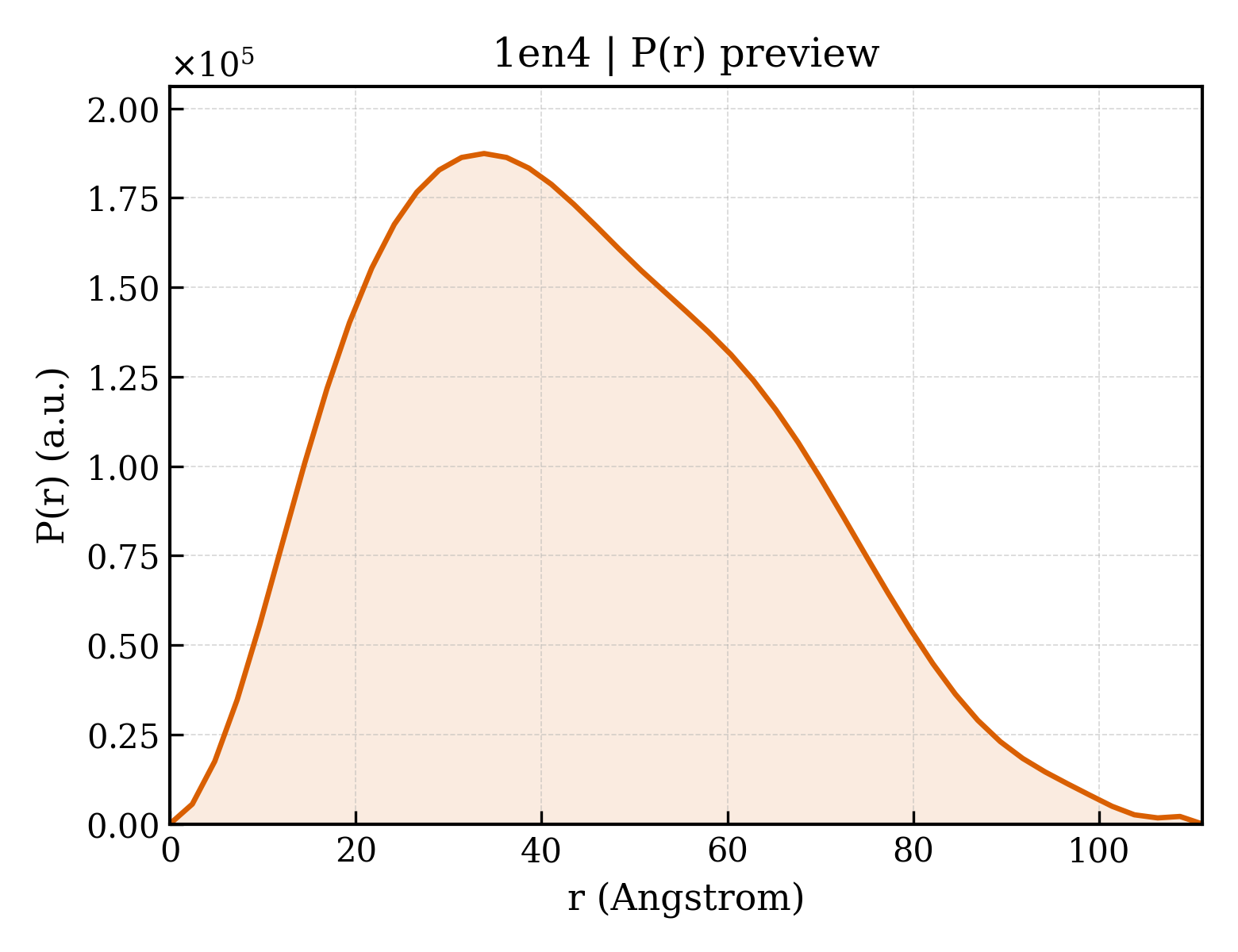

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	111.1 Å
Rg (real space) rg_real	34.37 Å
Rg uncertainty (real space) rg_real_error	0.83 Å
I(0) (real space) i0_real	1.3030e+08
I(0) uncertainty (real space) i0_real_error	2.2980e+06
Rg (reciprocal space) rg_reciprocal	34.31 Å
I(0) (reciprocal space) i0_reciprocal	130300000.0000
Solution quality estimate total_estimate	0.6732
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	33.8 Å
Skewness Skewness skewness	0.358
Kurtosis Kurtosis kurtosis	-0.519
Angular range angular_range	— – 0.2300 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	21530000.0000
Real-space data points n_real_points	47
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.914; Stabil: 1.000; Sysdev: 0.122; Positv: 1.000; Valcen: 0.955; Smooth: 0.683

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	MANGANESE SUPEROXIDE DISMUTASE
Molecular weight formula_weight	23006.9 kDa
EC 编号 ec_number	1.15.1.1
Mutation mutation	Q146H
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	7125

SYTLPSLPYAYDALEPHFDKQTMEIHHTKHHQTYVNNANAALESLPEFANLPVEELITKLDQLPADKKTVLRNNAGGHANHSLFWKGLKKGTTLQGDLKAAIERDFGSVDNFKAEFEKAAASRFGSGWAWLVLKGDKLAVVSTANHDSPLMGEAISGASGFPIMGLDVWEHAYYLKFQNRRPDYIKEFWNVVNWDEAAARFAAKK

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	460

▼

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1en4a1
Class class	a — All alpha proteins
Fold Fold fold	a.2 — Long alpha-hairpin
Superfamily Superfamily superfamily	a.2.11 — Fe,Mn superoxide dismutase (SOD), N-terminal domain
Family Family family	a.2.11.1 — Fe,Mn superoxide dismutase (SOD), N-terminal domain

Domain ID domain_id	d1en4a2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.44 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Superfamily Superfamily superfamily	d.44.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Family Family family	d.44.1.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain

Domain ID domain_id	d1en4b1
Class class	a — All alpha proteins
Fold Fold fold	a.2 — Long alpha-hairpin
Superfamily Superfamily superfamily	a.2.11 — Fe,Mn superoxide dismutase (SOD), N-terminal domain
Family Family family	a.2.11.1 — Fe,Mn superoxide dismutase (SOD), N-terminal domain

Domain ID domain_id	d1en4b2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.44 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Superfamily Superfamily superfamily	d.44.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Family Family family	d.44.1.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain

Domain ID domain_id	d1en4c1
Class class	a — All alpha proteins
Fold Fold fold	a.2 — Long alpha-hairpin
Superfamily Superfamily superfamily	a.2.11 — Fe,Mn superoxide dismutase (SOD), N-terminal domain
Family Family family	a.2.11.1 — Fe,Mn superoxide dismutase (SOD), N-terminal domain

Domain ID domain_id	d1en4c2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.44 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Superfamily Superfamily superfamily	d.44.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Family Family family	d.44.1.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain

Domain ID domain_id	d1en4d1
Class class	a — All alpha proteins
Fold Fold fold	a.2 — Long alpha-hairpin
Superfamily Superfamily superfamily	a.2.11 — Fe,Mn superoxide dismutase (SOD), N-terminal domain
Family Family family	a.2.11.1 — Fe,Mn superoxide dismutase (SOD), N-terminal domain

Domain ID domain_id	d1en4d2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.44 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Superfamily Superfamily superfamily	d.44.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Family Family family	d.44.1.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain

CATH v4.4 (8 domains)

Domain ID domain_id	1en4A01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	990 — Fe,Mn superoxide dismutase (SOD) domain

Domain ID domain_id	1en4A02
Class class	3 — Alpha Beta
Architecture architecture	55 — 3-Layer(bab) Sandwich
Topology topology	40 — minor pseudopilin epsh fold
Homologous superfamily homologous superfamily	20 — Iron/manganese superoxide dismutase, C-terminal domain

Domain ID domain_id	1en4B01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	990 — Fe,Mn superoxide dismutase (SOD) domain

Domain ID domain_id	1en4B02
Class class	3 — Alpha Beta
Architecture architecture	55 — 3-Layer(bab) Sandwich
Topology topology	40 — minor pseudopilin epsh fold
Homologous superfamily homologous superfamily	20 — Iron/manganese superoxide dismutase, C-terminal domain

Domain ID domain_id	1en4C01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	990 — Fe,Mn superoxide dismutase (SOD) domain

Domain ID domain_id	1en4C02
Class class	3 — Alpha Beta
Architecture architecture	55 — 3-Layer(bab) Sandwich
Topology topology	40 — minor pseudopilin epsh fold
Homologous superfamily homologous superfamily	20 — Iron/manganese superoxide dismutase, C-terminal domain

Domain ID domain_id	1en4D01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	990 — Fe,Mn superoxide dismutase (SOD) domain

Domain ID domain_id	1en4D02
Class class	3 — Alpha Beta
Architecture architecture	55 — 3-Layer(bab) Sandwich
Topology topology	40 — minor pseudopilin epsh fold
Homologous superfamily homologous superfamily	20 — Iron/manganese superoxide dismutase, C-terminal domain

▶

8. Citations (3)

▶

Unit-cell length a length_a	101.766 Å
Unit-cell length b length_b	109.239 Å
Unit-cell length c length_c	180.889 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	45.000 Å
R factor r_factor	—
R_work r_work	0.1690
R_free r_free	0.1920
