1en6
CRYSTAL STRUCTURE ANALYSIS OF THE E. COLI MANGANESE SUPEROXIDE DISMUTASE Q146L MUTANT
SAXS Profile

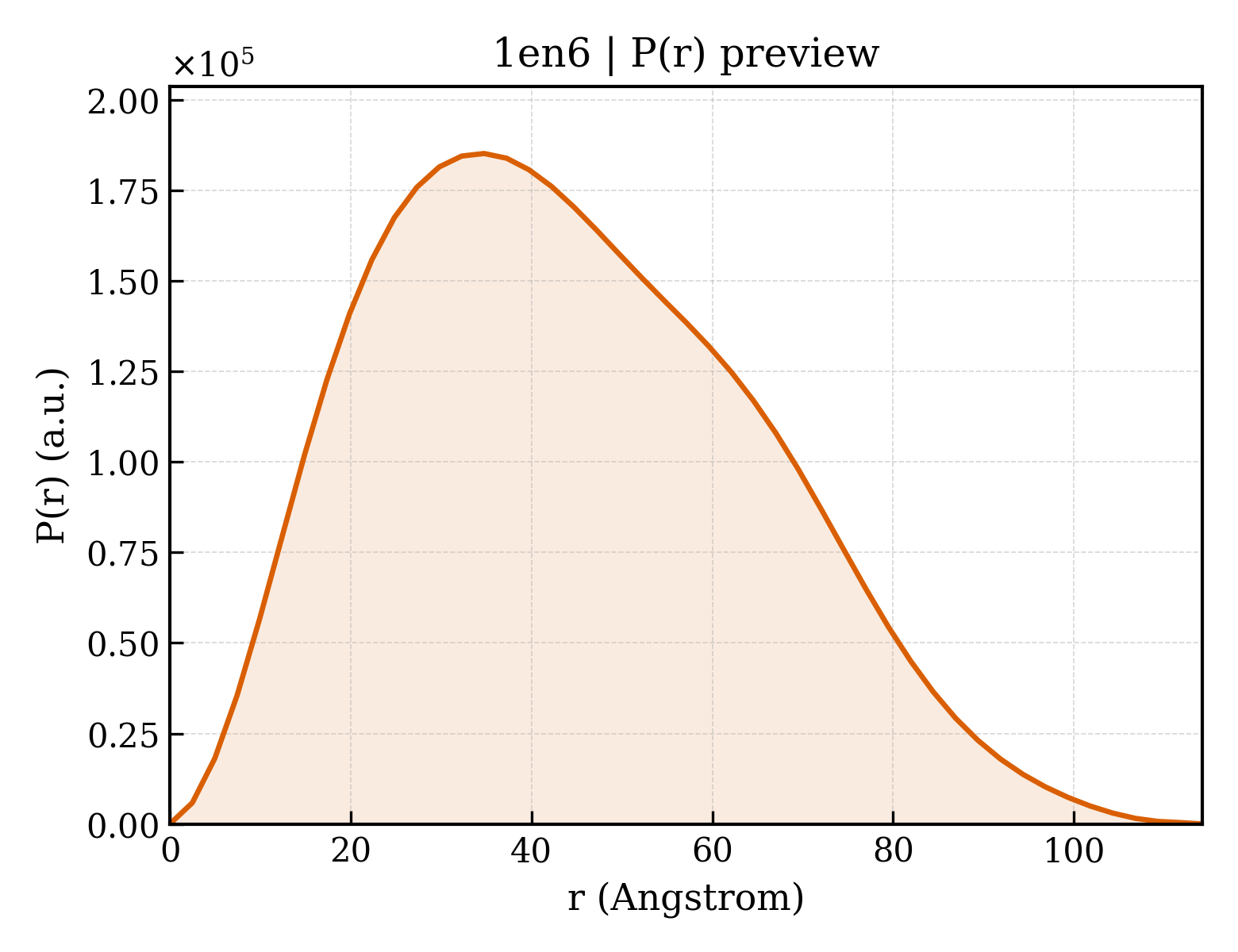

P(r) Distribution
1. Structure Basics
| entry_id | 1en6 |
| deposition_date | 2000-03-20 |
| title | CRYSTAL STRUCTURE ANALYSIS OF THE E. COLI MANGANESE SUPEROXIDE DISMUTASE Q146L MUTANT |
| keywords | proton shuttle, Q146L, mutant, manganese superoxide dismutase, OXIDOREDUCTASE; OXIDOREDUCTASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 34.32 Å |
| rg_electron | 34.06 Å |
| i0 | 129015000.00 |
| molecular_weight | 92016.0 kDa |
| excluded_volume | 115500 ų |
| envelope_volume | 150240 ų |
| shell_volume | 37840 ų |
| envelope_diameter | 117.2 Å |
| shell_rg | 39.63 Å |
| envelope_rg | 33.21 Å |
| shape_rg | 34.07 Å |
| total_rg | 34.50 Å |
| total_atoms | 6512 |
| n_residues | 820 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 114.2 Å |
| rg_real | 34.41 Å |
| rg_real_error | 0.98 Å |
| i0_real | 1.2900e+08 |
| i0_real_error | 1.9790e+06 |
| rg_reciprocal | 34.36 Å |
| i0_reciprocal | 129000000.0000 |
| total_estimate | 0.8777 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 34.8 Å |
| skewness | 0.355 |
| kurtosis | -0.513 |
| angular_range | — – 0.2300 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 21770000.0000 |
| n_real_points | 47 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.886; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.947; Smooth: 0.800 |
