1eo1
Solution structure of hypothetical protein MTH1175 from Methanobacterium thermoautotrophicum

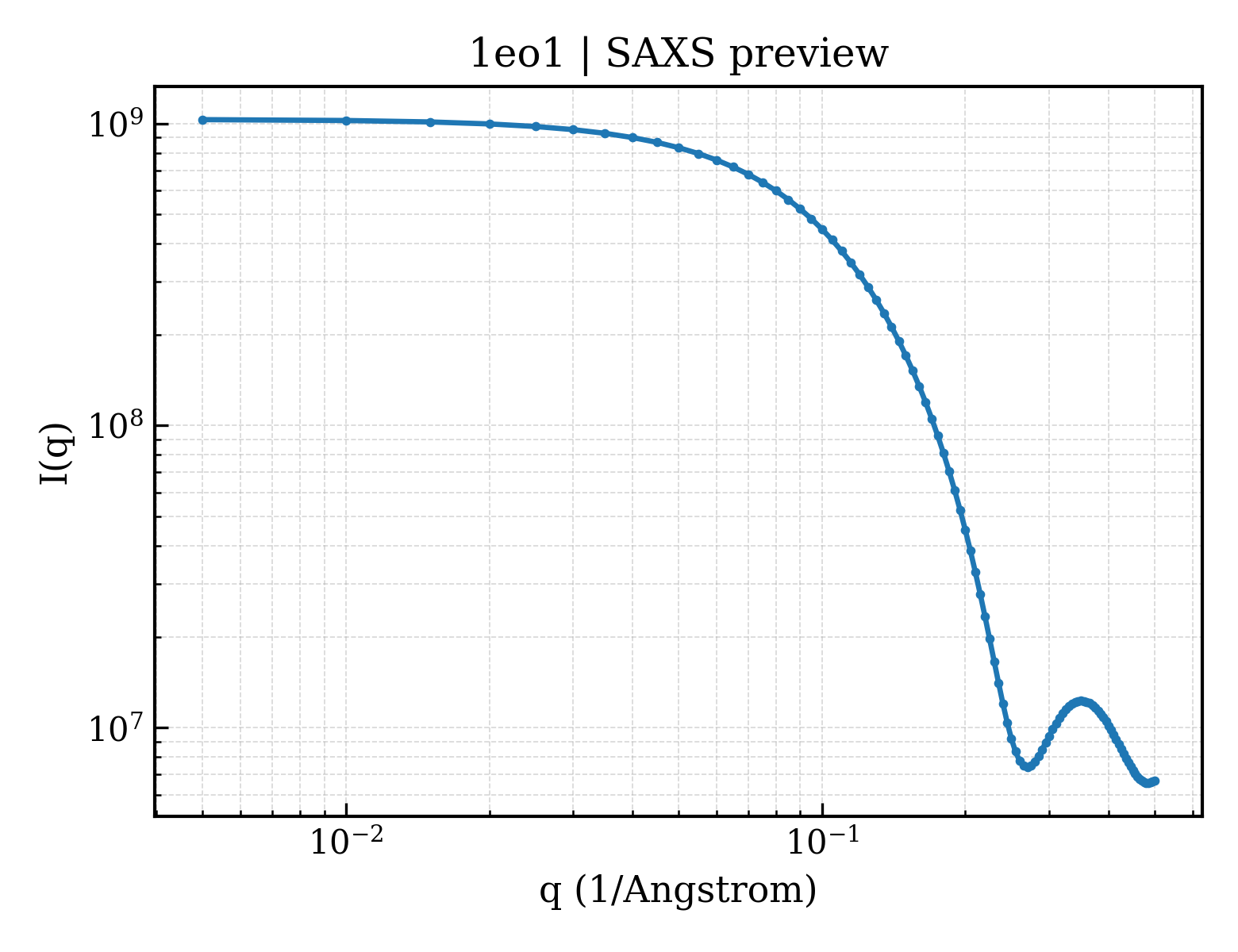

SAXS Profile

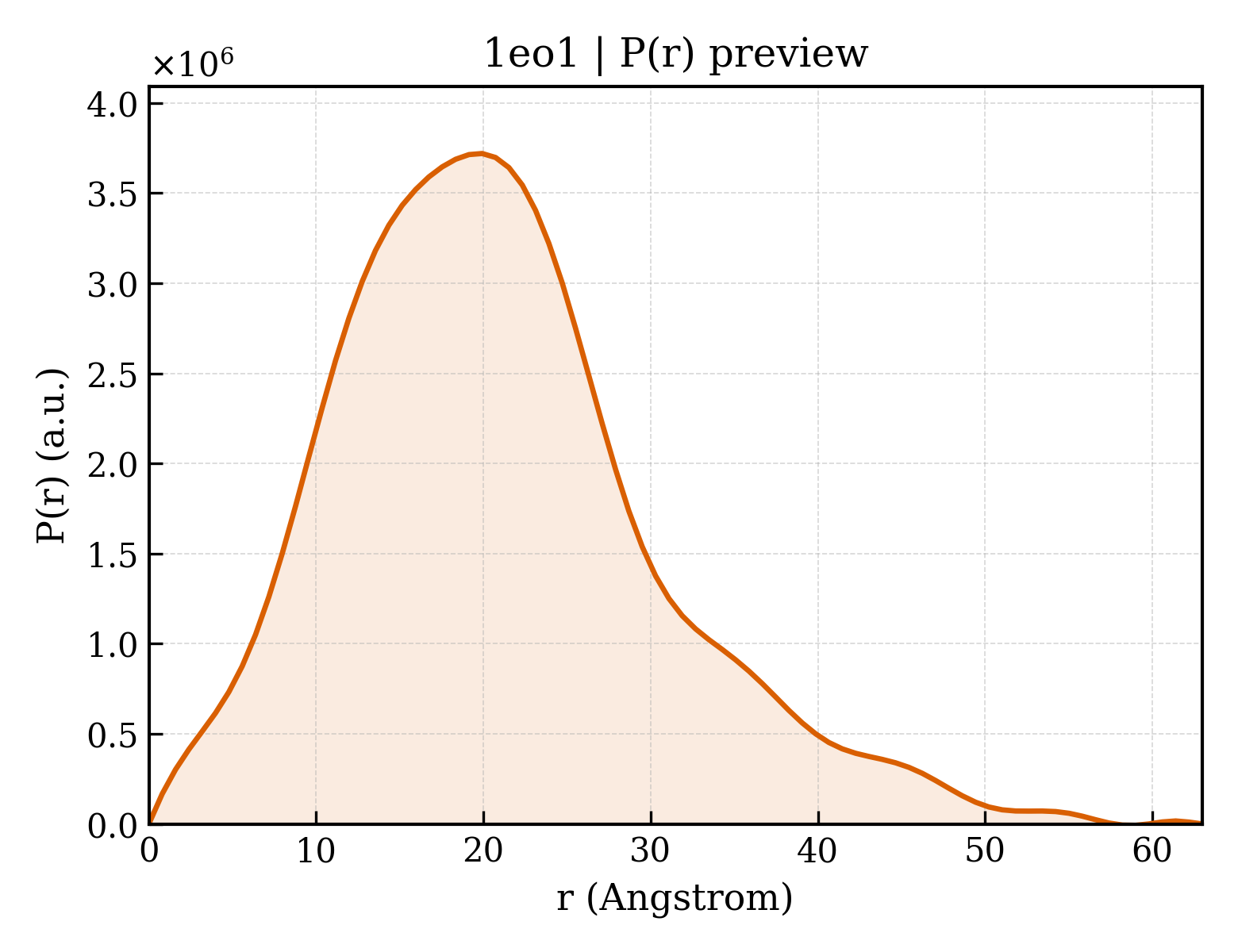

P(r) Distribution
1. Structure Basics
| entry_id | 1eo1 |
| deposition_date | 2000-03-21 |
| title | Solution structure of hypothetical protein MTH1175 from Methanobacterium thermoautotrophicum |
| keywords | ;mixed a/b protein, mixed beta sheet, strand order 321456, strands 2 and 6 antiparallel to rest., Structural Genomics, PSI, Protein Structure Initiative, Northeast Structural Genomics Consortium, NESG ;; STRUCTURAL GENOMICS |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.06 Å |
| rg_electron | 15.26 Å |
| i0 | 1031720000.00 |
| molecular_weight | 263260.0 kDa |
| excluded_volume | 327150 ų |
| envelope_volume | 57657 ų |
| shell_volume | 22280 ų |
| envelope_diameter | 71.5 Å |
| shell_rg | 29.10 Å |
| envelope_rg | 23.37 Å |
| shape_rg | 15.21 Å |
| total_rg | 15.77 Å |
| total_atoms | 37240 |
| n_residues | 2480 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 63.0 Å |
| rg_real | 16.19 Å |
| rg_real_error | 0.57 Å |
| i0_real | 1.0320e+09 |
| i0_real_error | 1.2830e+07 |
| rg_reciprocal | 16.17 Å |
| i0_reciprocal | 1032000000.0000 |
| total_estimate | 0.5723 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 19.9 Å |
| skewness | 0.680 |
| kurtosis | 0.554 |
| angular_range | — – 0.4950 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 834400.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.310; Stabil: 1.000; Sysdev: 0.302; Positv: 1.000; Valcen: 0.647; Smooth: 0.953 |
