1epj

THREE-DIMENSIONAL NUCLEAR MAGNETIC RESONANCE STRUCTURES OF MOUSE EPIDERMAL GROWTH FACTOR IN ACIDIC AND PHYSIOLOGICAL PH SOLUTIONS

Method: SOLUTION NMR D_max: 45.3 Å Quality: GOOD

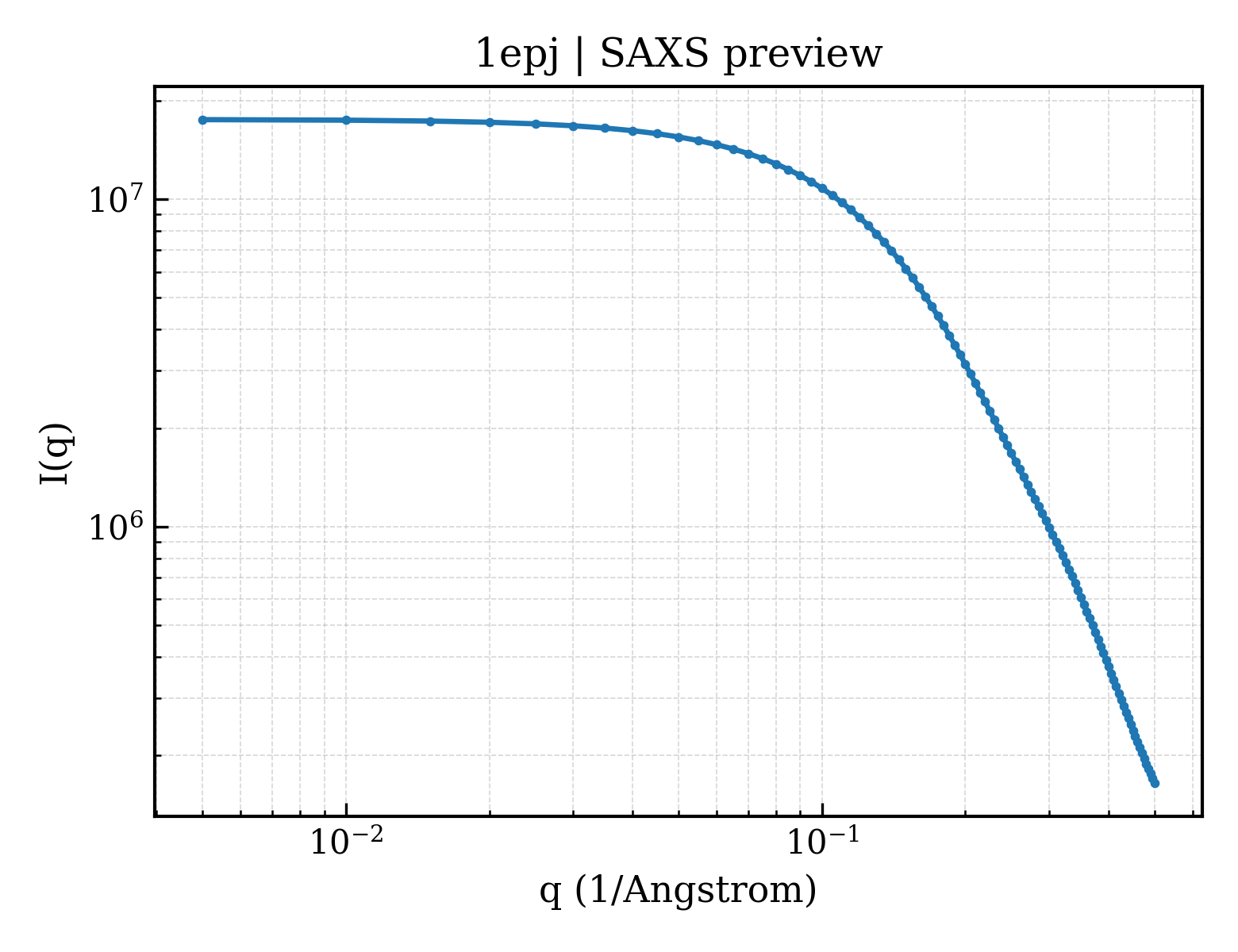

SAXS Profile

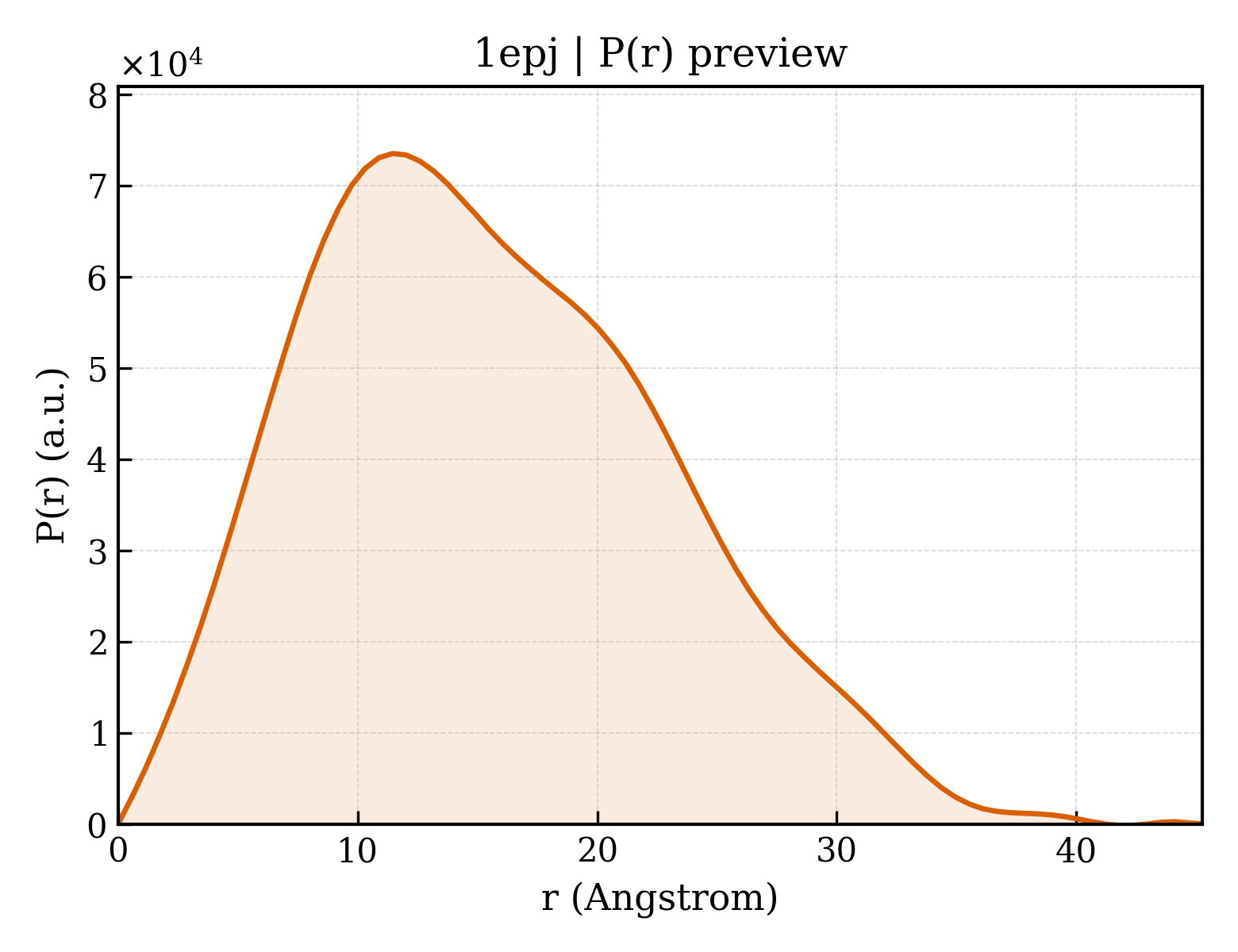

P(r) Distribution

P(r) distribution for 1epj

▼

1. Structure Basics

entry_id	1epj
deposition_date	1992-03-24
title	THREE-DIMENSIONAL NUCLEAR MAGNETIC RESONANCE STRUCTURES OF MOUSE EPIDERMAL GROWTH FACTOR IN ACIDIC AND PHYSIOLOGICAL PH SOLUTIONS
keywords	GROWTH FACTOR; GROWTH FACTOR
method	SOLUTION NMR

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	12.10 Å
rg_electron	12.25 Å
i0	17516400.00
molecular_weight	30219.0 kDa
excluded_volume	36297 Å³
envelope_volume	13294 Å³
shell_volume	8948 Å³
envelope_diameter	46.2 Å
shell_rg	18.22 Å
envelope_rg	13.82 Å
shape_rg	12.31 Å
total_rg	12.57 Å
total_atoms	3965
n_residues	265
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	45.3 Å
rg_real	12.17 Å
rg_real_error	0.51 Å
i0_real	1.7520e+07
i0_real_error	2.3140e+05
rg_reciprocal	12.16 Å
i0_reciprocal	17520000.0000
total_estimate	0.8074
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	11.5 Å
skewness	0.415
kurtosis	-0.346
angular_range	— – 0.5000 Å⁻¹
current_alpha	0.0000
highest_alpha	93580.0000
n_real_points	80
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.682; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.500; Smooth: 0.945

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

▶

6. Citations (6)

▶

7. Files & Curves (10)
