1eqk
SOLUTION STRUCTURE OF ORYZACYSTATIN-I, A CYSTEINE PROTEINASE INHIBITOR OF THE RICE, ORYZA SATIVA L. JAPONICA

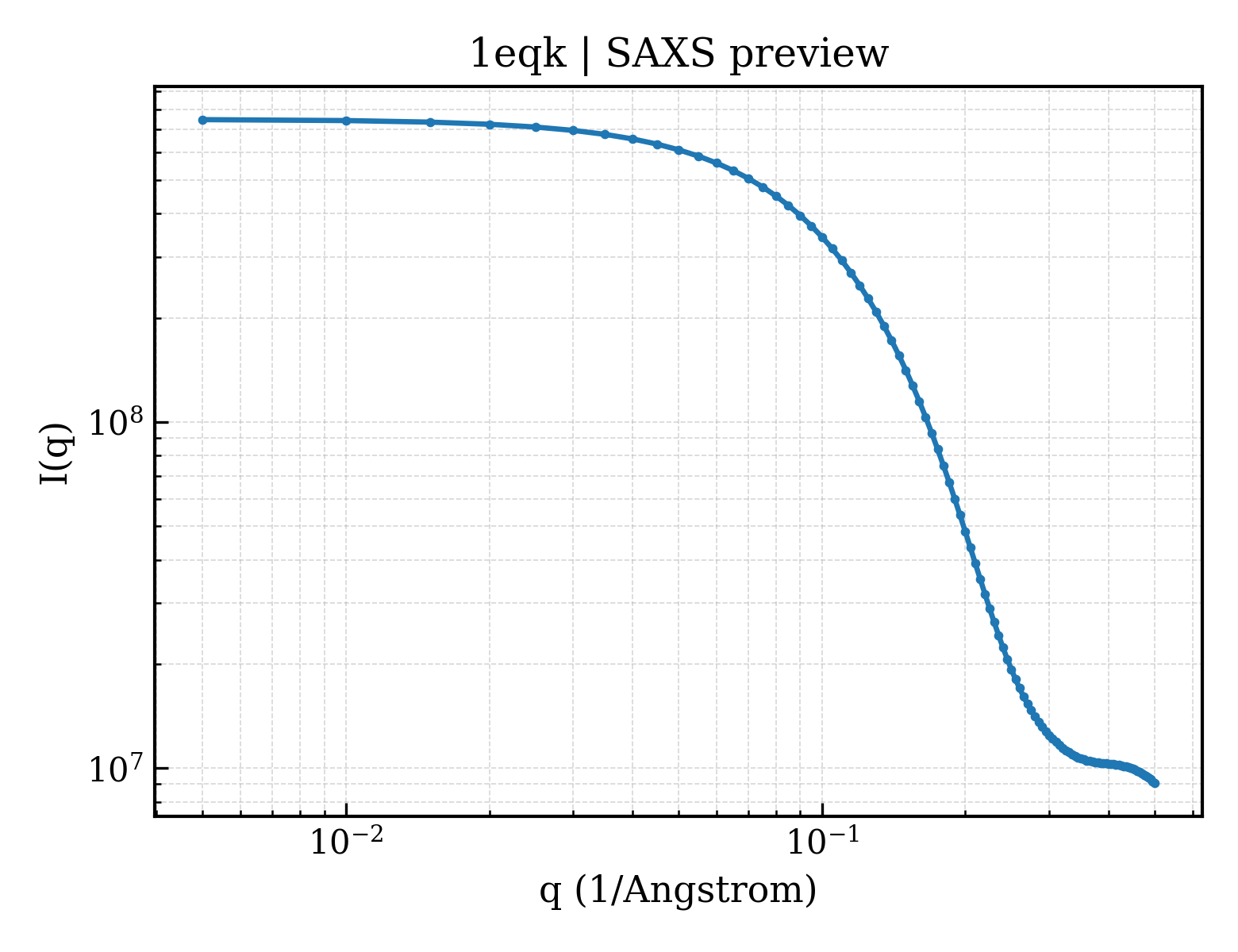

SAXS Profile

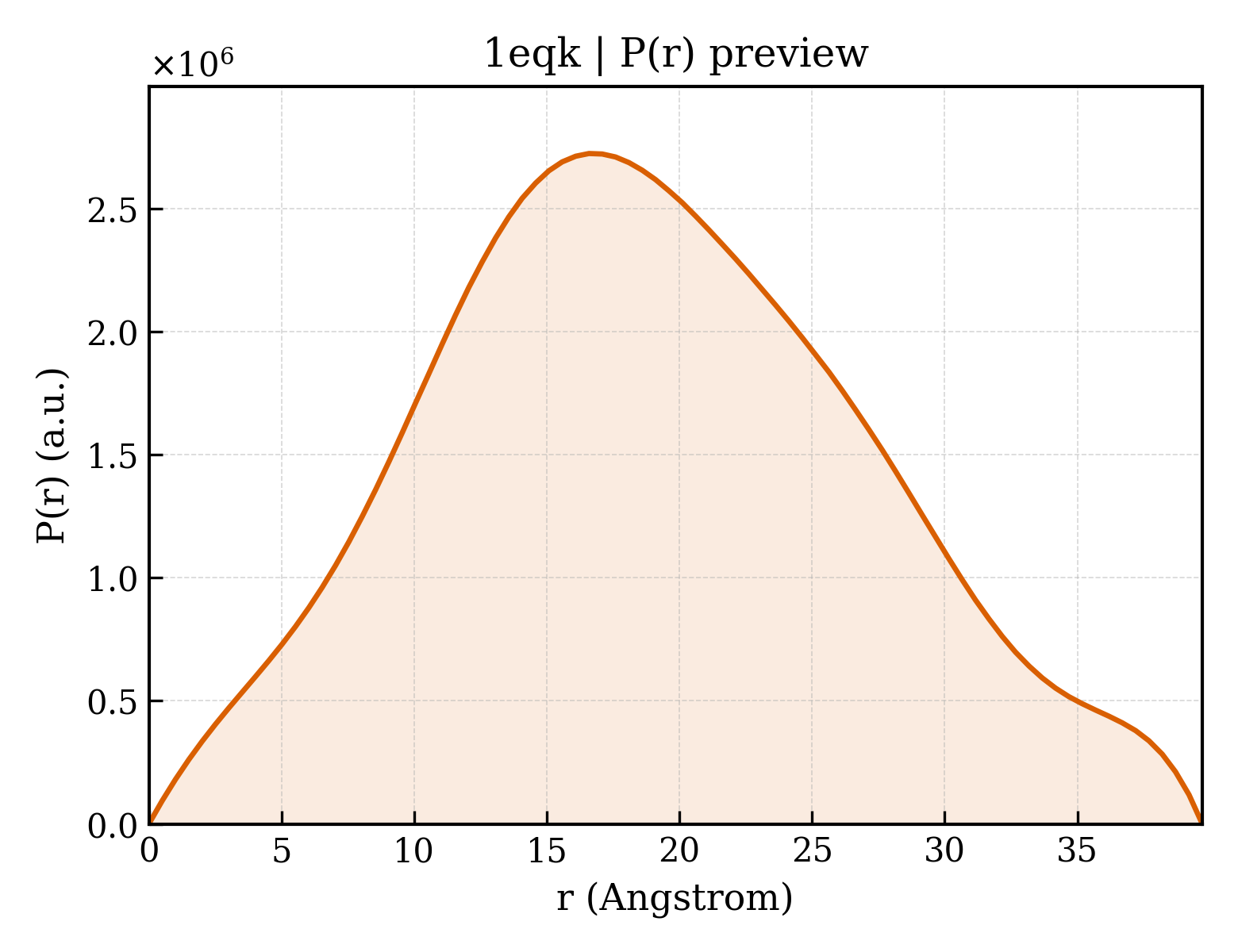

P(r) Distribution
1. Structure Basics
| entry_id | 1eqk |
| deposition_date | 2000-04-05 |
| title | SOLUTION STRUCTURE OF ORYZACYSTATIN-I, A CYSTEINE PROTEINASE INHIBITOR OF THE RICE, ORYZA SATIVA L. JAPONICA |
| keywords | alpha and beta proteins, cystatin-like fold, cystatin/monellin superfamily, phytocystatin family, HYDROLASE INHIBITOR; HYDROLASE INHIBITOR |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.55 Å |
| rg_electron | 14.80 Å |
| i0 | 748327000.00 |
| molecular_weight | 238980.0 kDa |
| excluded_volume | 301890 ų |
| envelope_volume | 49548 ų |
| shell_volume | 19932 ų |
| envelope_diameter | 74.5 Å |
| shell_rg | 27.76 Å |
| envelope_rg | 22.82 Å |
| shape_rg | 14.71 Å |
| total_rg | 15.48 Å |
| total_atoms | 33621 |
| n_residues | 2142 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 39.7 Å |
| rg_real | 14.47 Å |
| rg_real_error | 0.06 Å |
| i0_real | 7.0940e+08 |
| i0_real_error | 6.3090e+06 |
| rg_reciprocal | 15.68 Å |
| i0_reciprocal | 748300000.0000 |
| total_estimate | 0.6887 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 16.6 Å |
| skewness | 0.177 |
| kurtosis | -0.477 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 3.5440 |
| highest_alpha | 172400.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.016; Oscil: 0.998; Stabil: 0.987; Sysdev: 0.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.000 |
