1ese
THE MOLECULAR MECHANISM OF ENANTIORECOGNITION BY ESTERASES
SAXS Profile

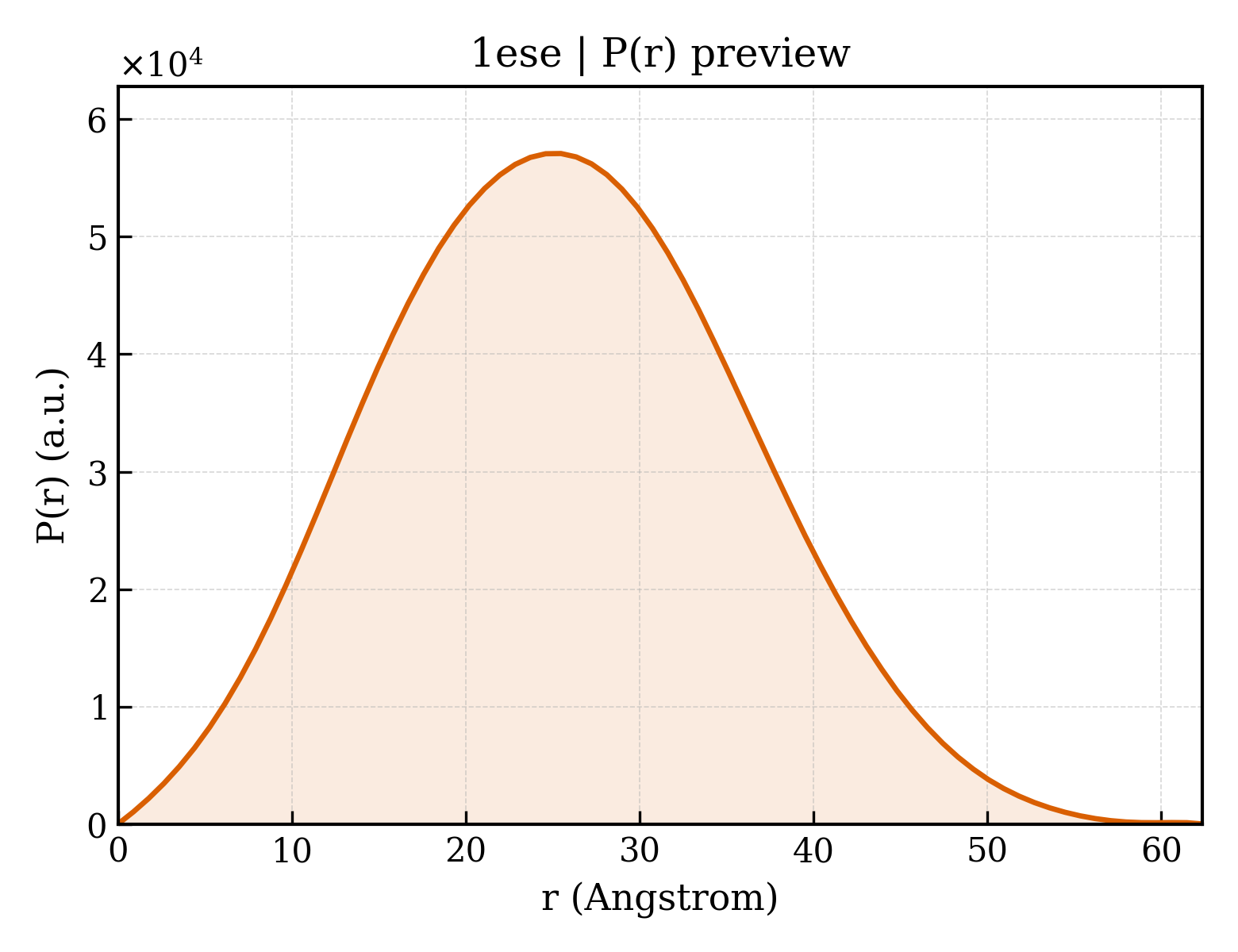

P(r) Distribution
1. Structure Basics
| entry_id | 1ese |
| deposition_date | 1994-10-07 |
| title | THE MOLECULAR MECHANISM OF ENANTIORECOGNITION BY ESTERASES |
| keywords | HYDROLASE (SERINE ESTERASE); HYDROLASE (SERINE ESTERASE) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.62 Å |
| rg_electron | 18.43 Å |
| i0 | 19351800.00 |
| molecular_weight | 32676.0 kDa |
| excluded_volume | 40588 ų |
| envelope_volume | 45984 ų |
| shell_volume | 20498 ų |
| envelope_diameter | 62.9 Å |
| shell_rg | 25.07 Å |
| envelope_rg | 18.66 Å |
| shape_rg | 18.42 Å |
| total_rg | 19.36 Å |
| total_atoms | 2303 |
| n_residues | 302 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 62.4 Å |
| rg_real | 19.48 Å |
| rg_real_error | 0.26 Å |
| i0_real | 1.9350e+07 |
| i0_real_error | 2.4070e+05 |
| rg_reciprocal | 19.51 Å |
| i0_reciprocal | 19350000.0000 |
| total_estimate | 0.8919 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 25.5 Å |
| skewness | 0.155 |
| kurtosis | -0.376 |
| angular_range | — – 0.4050 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3504000.0000 |
| n_real_points | 72 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.866; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.999 |
