1eso
MONOMERIC CU,ZN SUPEROXIDE DISMUTASE FROM ESCHERICHIA COLI

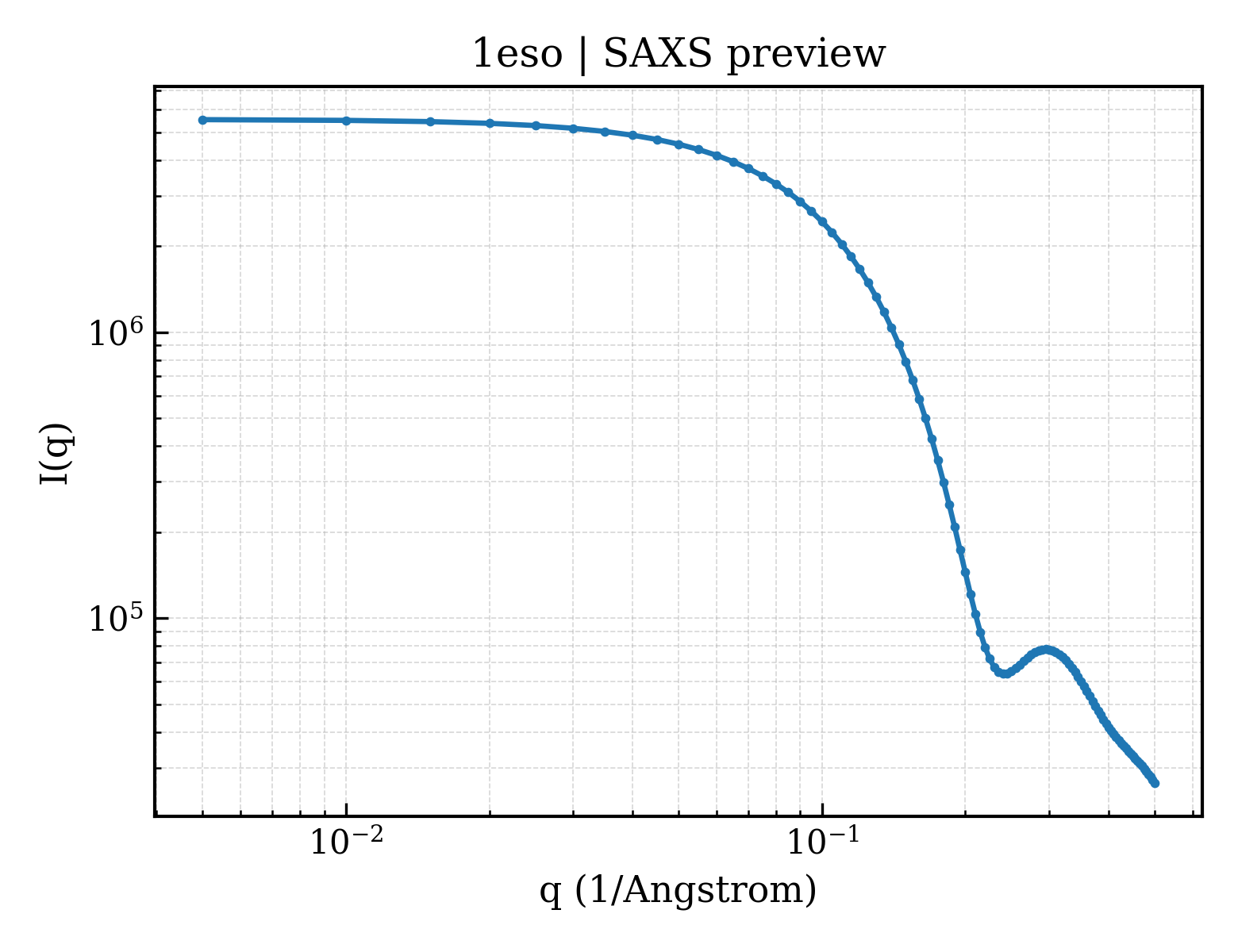

SAXS Profile

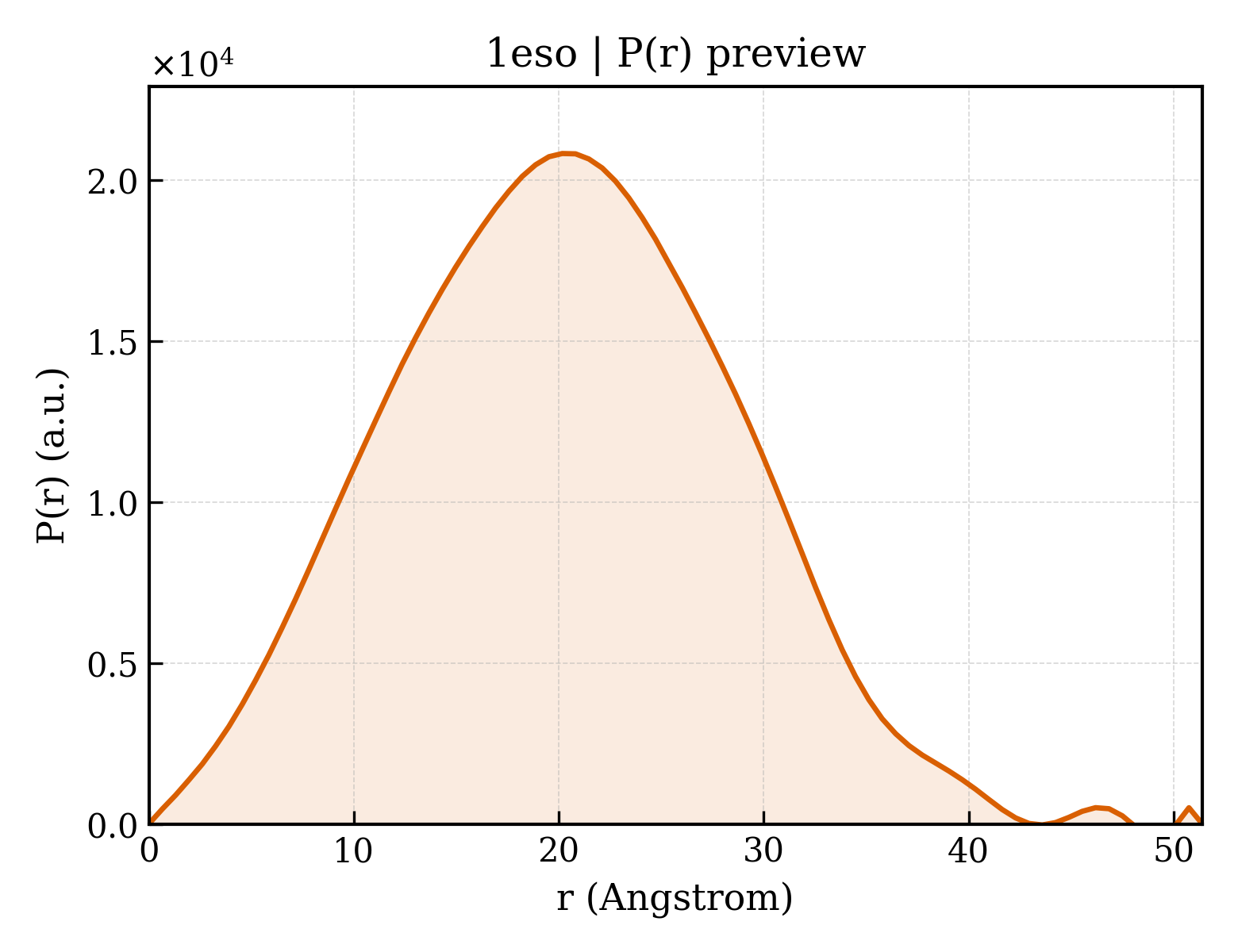

P(r) Distribution
1. Structure Basics
| entry_id | 1eso |
| deposition_date | 1997-06-27 |
| title | MONOMERIC CU,ZN SUPEROXIDE DISMUTASE FROM ESCHERICHIA COLI |
| keywords | ;OXIDOREDUCTASE, CU, ZN SUPEROXIDE DISMUTASE, MONOMERIC SUPEROXIDE DISMUTASE, COPPER ENZYMES, ENZYME EVOLUTION, X-RAY CRYSTAL STRUCTURE ;; OXIDOREDUCTASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.51 Å |
| rg_electron | 14.34 Å |
| i0 | 5544170.00 |
| molecular_weight | 15861.0 kDa |
| excluded_volume | 19417 ų |
| envelope_volume | 22512 ų |
| shell_volume | 13181 ų |
| envelope_diameter | 53.2 Å |
| shell_rg | 20.44 Å |
| envelope_rg | 14.75 Å |
| shape_rg | 14.34 Å |
| total_rg | 15.49 Å |
| total_atoms | 1105 |
| n_residues | 154 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 51.4 Å |
| rg_real | 15.41 Å |
| rg_real_error | 0.35 Å |
| i0_real | 5.5440e+06 |
| i0_real_error | 6.3010e+04 |
| rg_reciprocal | 15.42 Å |
| i0_reciprocal | 5544000.0000 |
| total_estimate | 0.7927 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 20.2 Å |
| skewness | 0.107 |
| kurtosis | -0.355 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 756700.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.770; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000 |
