1esz
STRUCTURE OF THE PERIPLASMIC FERRIC SIDEROPHORE BINDING PROTEIN FHUD COMPLEXED WITH COPROGEN
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1esz |
| deposition_date | 2000-04-11 |
| title | STRUCTURE OF THE PERIPLASMIC FERRIC SIDEROPHORE BINDING PROTEIN FHUD COMPLEXED WITH COPROGEN |
| keywords | FhuD, iron transport, siderophore binding protein, periplasmic ligand binding protein, ABC transport protein, METAL TRANSPORT; METAL TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.96 Å |
| rg_electron | 18.93 Å |
| i0 | 14340200.00 |
| molecular_weight | 29451.0 kDa |
| excluded_volume | 37194 ų |
| envelope_volume | 41243 ų |
| shell_volume | 18619 ų |
| envelope_diameter | 68.3 Å |
| shell_rg | 24.89 Å |
| envelope_rg | 19.15 Å |
| shape_rg | 18.88 Å |
| total_rg | 19.93 Å |
| total_atoms | 2075 |
| n_residues | 260 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

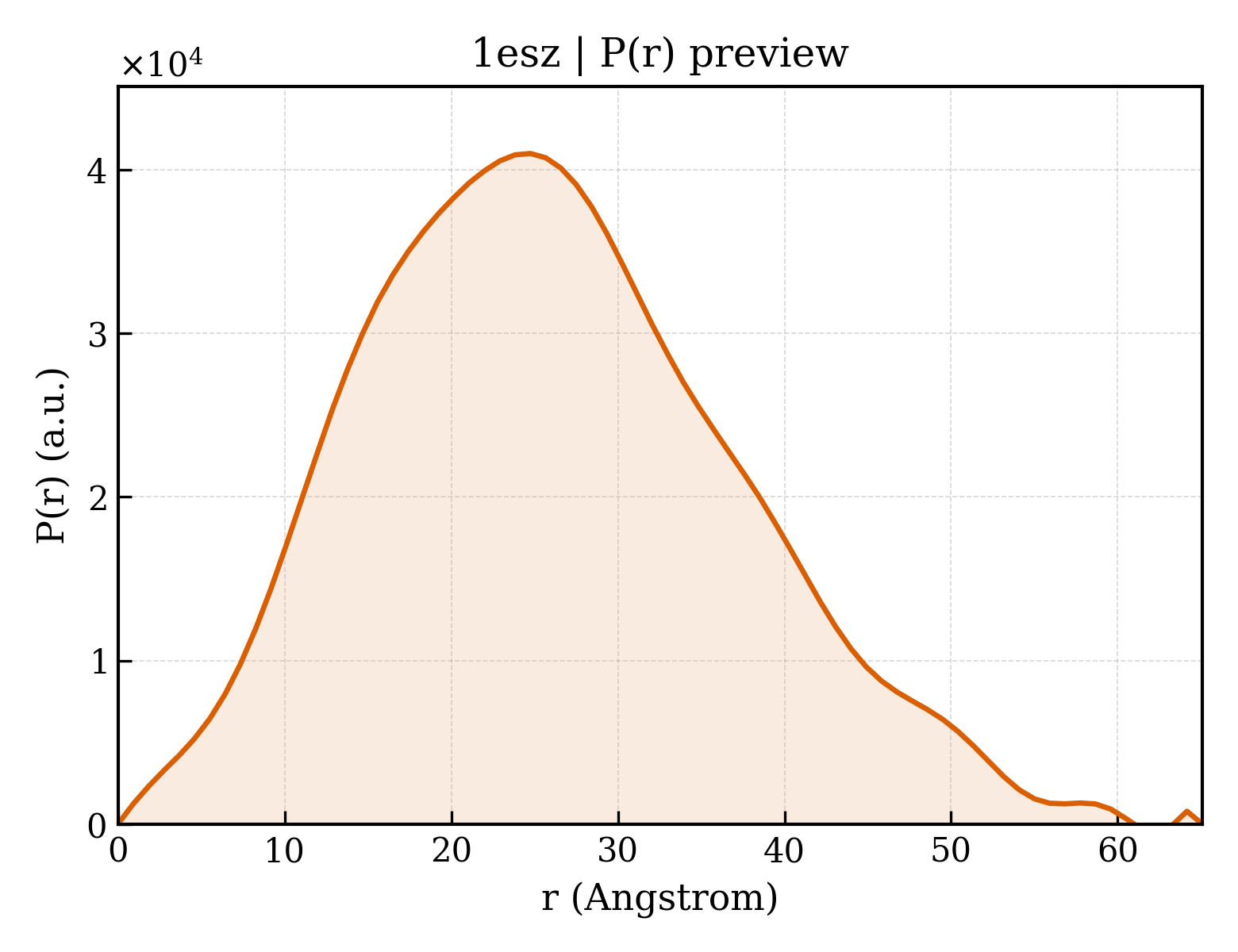

3. P(r) Analysis (GNOM)
| dmax | 65.1 Å |
| rg_real | 19.92 Å |
| rg_real_error | 0.45 Å |
| i0_real | 1.4340e+07 |
| i0_real_error | 1.7600e+05 |
| rg_reciprocal | 19.93 Å |
| i0_reciprocal | 14340000.0000 |
| total_estimate | 0.8017 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 24.8 Å |
| skewness | 0.340 |
| kurtosis | -0.251 |
| angular_range | — – 0.4000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3261000.0000 |
| n_real_points | 72 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.809; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.000 |
