1ete
CRYSTAL STRUCTURE OF THE FLT3 LIGAND
SAXS Profile

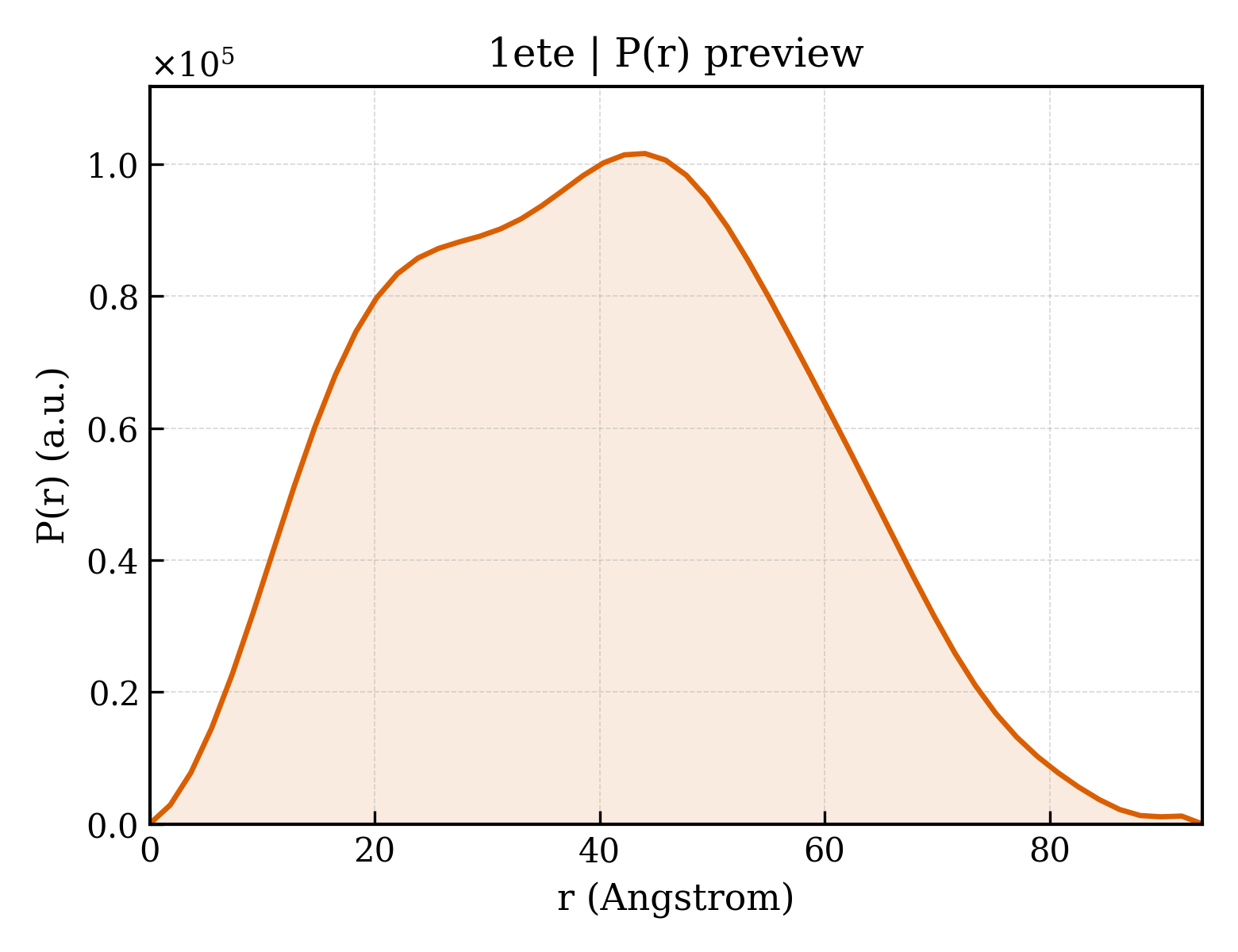

P(r) Distribution
1. Structure Basics
| entry_id | 1ete |
| deposition_date | 2000-04-12 |
| title | CRYSTAL STRUCTURE OF THE FLT3 LIGAND |
| keywords | four-helix bundle, CYTOKINE; CYTOKINE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 30.82 Å |
| rg_electron | 29.69 Å |
| i0 | 63257600.00 |
| molecular_weight | 61493.0 kDa |
| excluded_volume | 76496 ų |
| envelope_volume | 99203 ų |
| shell_volume | 28295 ų |
| envelope_diameter | 100.1 Å |
| shell_rg | 36.26 Å |
| envelope_rg | 29.39 Å |
| shape_rg | 29.66 Å |
| total_rg | 30.39 Å |
| total_atoms | 4280 |
| n_residues | 529 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 93.6 Å |
| rg_real | 30.76 Å |
| rg_real_error | 0.63 Å |
| i0_real | 6.3260e+07 |
| i0_real_error | 9.2540e+05 |
| rg_reciprocal | 30.79 Å |
| i0_reciprocal | 63260000.0000 |
| total_estimate | 0.8978 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 44.0 Å |
| skewness | 0.149 |
| kurtosis | -0.656 |
| angular_range | — – 0.2550 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 16440000.0000 |
| n_real_points | 52 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.973; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.770 |
