1ev0

SOLUTION STRUCTURE OF THE MINE TOPOLOGICAL SPECIFICITY DOMAIN

Method: SOLUTION NMR Dmax: 40.9 Å Quality: REASONABLE

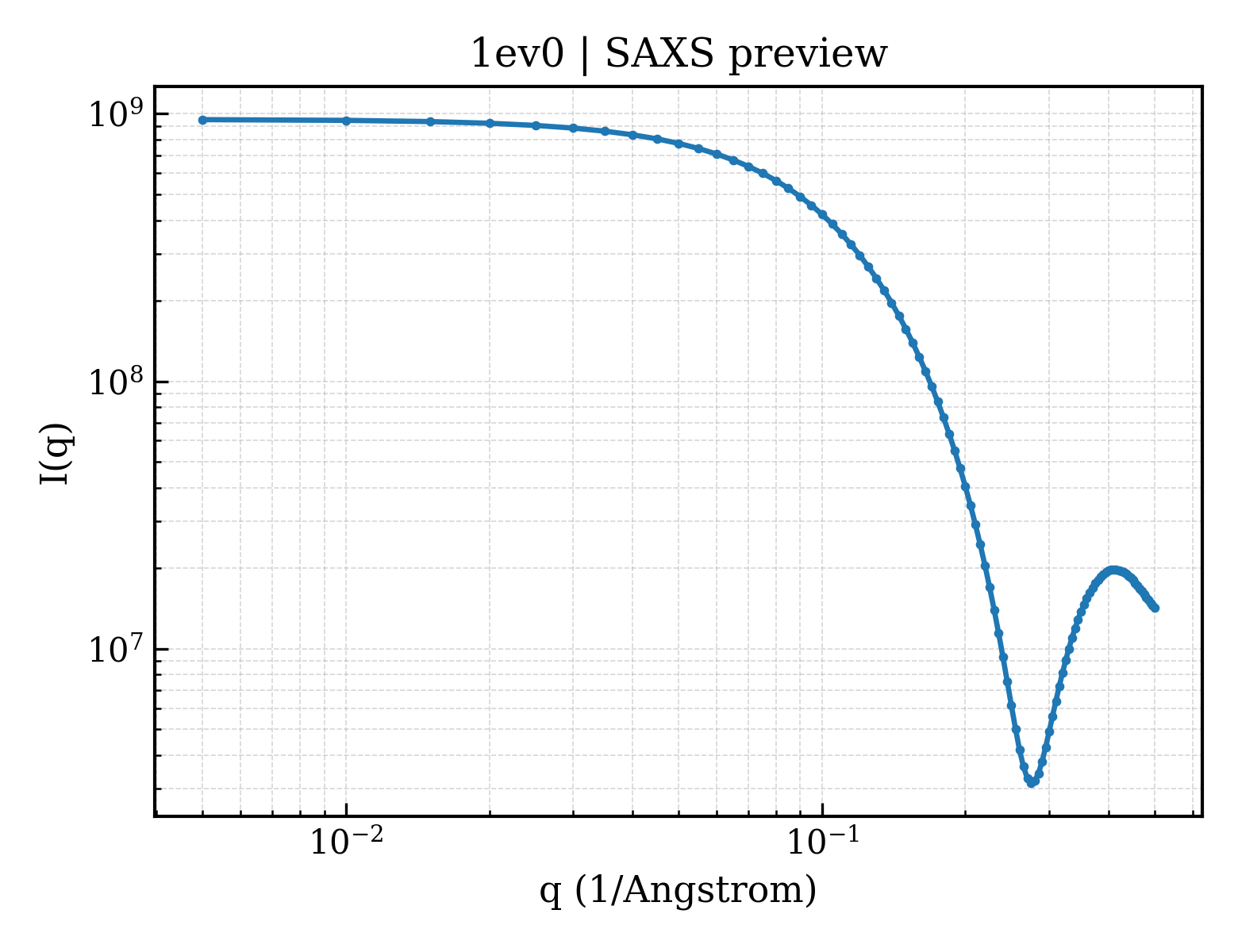

SAXS Profile

SAXS profile for 1ev0

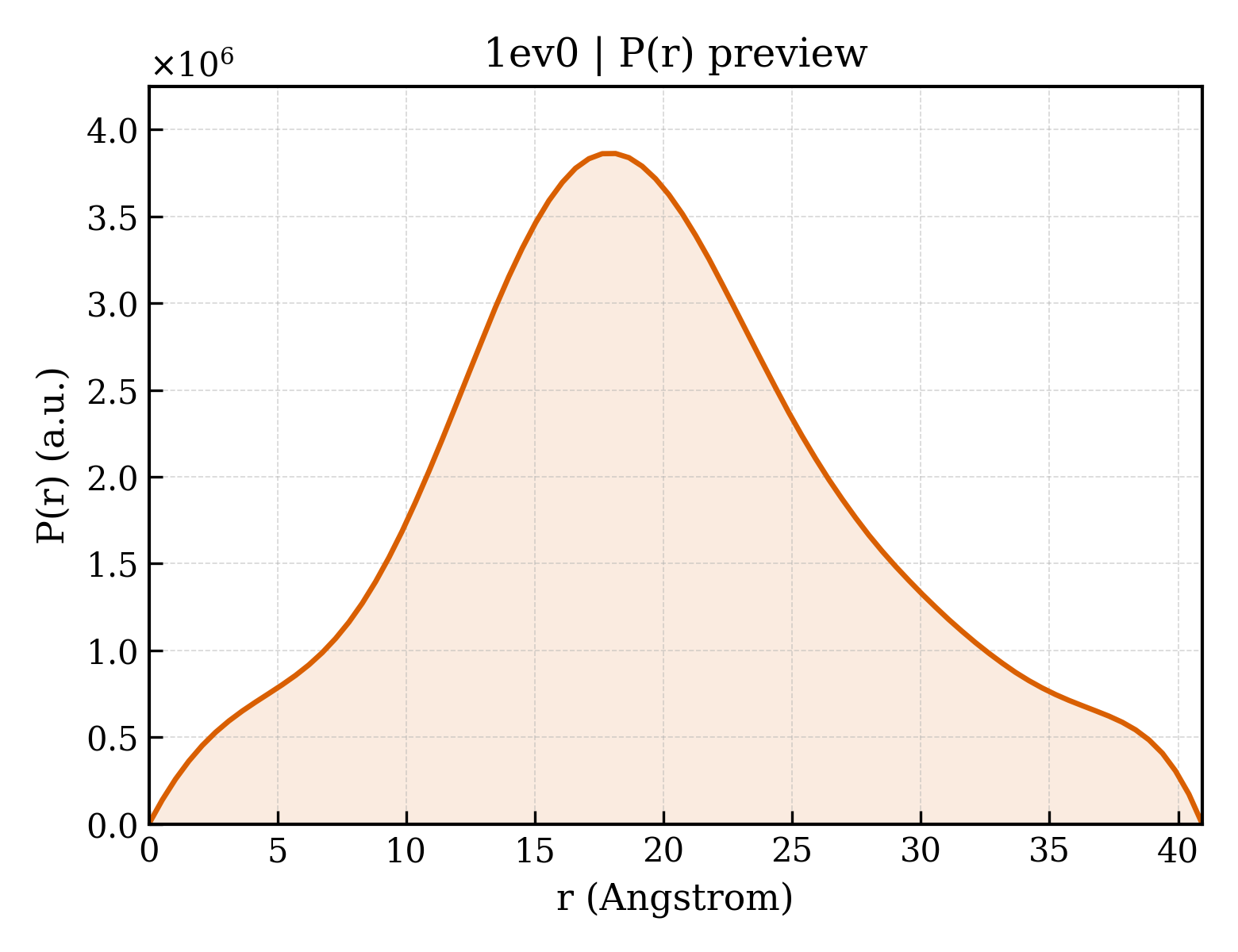

P(r) Distribution

P(r) distribution for 1ev0

1. Structure Basics

entry_id1ev0
deposition_date2000-04-19
titleSOLUTION STRUCTURE OF THE MINE TOPOLOGICAL SPECIFICITY DOMAIN
keywordsMinE, topological specificity, cell division, MinCD, minicell, CELL CYCLE; CELL CYCLE
methodSOLUTION NMR

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier15.74
rg_electron15.09
i0953091000.00
molecular_weight267990.0 kDa
excluded_volume338080 ų
envelope_volume32326 ų
shell_volume15567 ų
envelope_diameter66.7
shell_rg23.63
envelope_rg18.85
shape_rg15.09
total_rg15.21
total_atoms37920
n_residues2320
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax40.9
rg_real14.92
rg_real_error0.04
i0_real9.0760e+08
i0_real_error6.8750e+06
rg_reciprocal15.77
i0_reciprocal953100000.0000
total_estimate0.6641
solution_quality REASONABLE a REASONABLE solution
n_peaks1
r_peak_primary18.1
skewness0.236
kurtosis-0.250
angular_range— – 0.5000 −1
current_alpha3.3090
highest_alpha884900.0000
n_real_points80
gnom_version4.1.3
quality_criteria AN1: 0.002; Oscil: 0.903; Stabil: 0.981; Sysdev: 0.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.000

4. Crystallography & Experiment

5. Entities & Polymer Info (1)

6. Citations (5)

7. Files & Curves (10)
