CRYSTAL STRUCTURE ANALYSIS OF CYS167 MUTANT OF ESCHERICHIA COLI

Method: X-RAY DIFFRACTION D_max: 60.6 Å Quality: GOOD

SAXS Profile

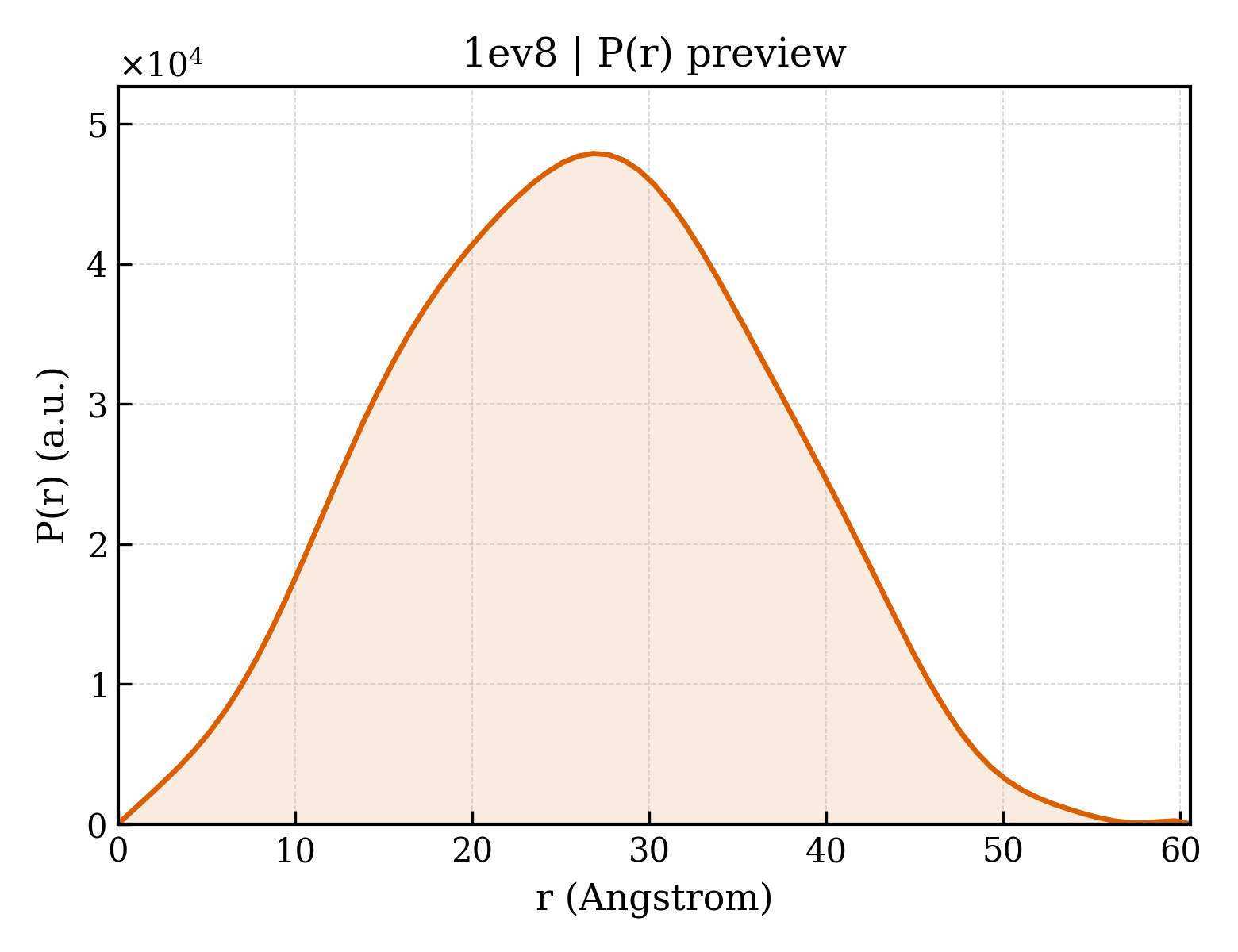

P(r) Distribution

▼

1. Structure Basics

entry_id	1ev8
deposition_date	2000-04-19
title	CRYSTAL STRUCTURE ANALYSIS OF CYS167 MUTANT OF ESCHERICHIA COLI
keywords	Cys167 E. coli Thymidylate Synthase, TRANSFERASE; TRANSFERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	20.19 Å
rg_electron	18.70 Å
i0	16811300.00
molecular_weight	30764.0 kDa
excluded_volume	38407 Å³
envelope_volume	46337 Å³
shell_volume	20519 Å³
envelope_diameter	61.2 Å
shell_rg	25.20 Å
envelope_rg	18.75 Å
shape_rg	18.69 Å
total_rg	19.65 Å
total_atoms	2164
n_residues	259
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	60.6 Å
rg_real	20.04 Å
rg_real_error	0.24 Å
i0_real	1.6810e+07
i0_real_error	2.1850e+05
rg_reciprocal	20.07 Å
i0_reciprocal	16810000.0000
total_estimate	0.7690
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	26.8 Å
skewness	0.055
kurtosis	-0.517
angular_range	— – 0.3950 Å⁻¹
current_alpha	0.0000
highest_alpha	3096000.0000
n_real_points	71
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.941; Stabil: 1.000; Sysdev: 0.406; Positv: 1.000; Valcen: 0.979; Smooth: 0.971

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	136.274 Å
length_b	136.274 Å
length_c	136.274 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	24

space_group	I 21 3
int_tables_number	199
crystal_system	—

resolution	2.600 Å
resolution_low	6.000 Å
r_factor	0.2230
r_work	0.2230
r_free	0.2640

description	THYMIDYLATE SYNTHASE
formula_weight	30880.2 kDa
ec_number	2.1.1.45
mutation	S167C
src_method	man
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	2175

CRYSTAL STRUCTURE ANALYSIS OF CYS167 MUTANT OF ESCHERICHIA COLI

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	Escherichia coli

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	11

fit	/app/data/saxs_computation/ev/1ev8/1ev8.fit
pddf	/app/data/pr_computation/ev/1ev8/1ev8.pr.out
profile	/app/data/saxs_computation/ev/1ev8/1ev8.dat
