1evj

CRYSTAL STRUCTURE OF GLUCOSE-FRUCTOSE OXIDOREDUCTASE (GFOR) DELTA1-22 S64D

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GLUCOSE-FRUCTOSE OXIDOREDUCTASE

Zymomonas mobilis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GFO_ZYMMO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–352； UniProt 82–433 Author chain B； PDBConstruct 1–352； UniProt 82–433 Author chain C； PDBConstruct 1–352； UniProt 82–433 Author chain D； PDBConstruct 1–352； UniProt 82–433

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1evj
Deposition date deposition_date	2000-04-20
Structure title title	CRYSTAL STRUCTURE OF GLUCOSE-FRUCTOSE OXIDOREDUCTASE (GFOR) DELTA1-22 S64D
Keywords keywords	NADP/NAD BINDING, OSMOTIC PROTECTION, PERIPLASM, OLIGOMERIZATION STATE, N-TERMINAL ARM, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1evj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1evj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

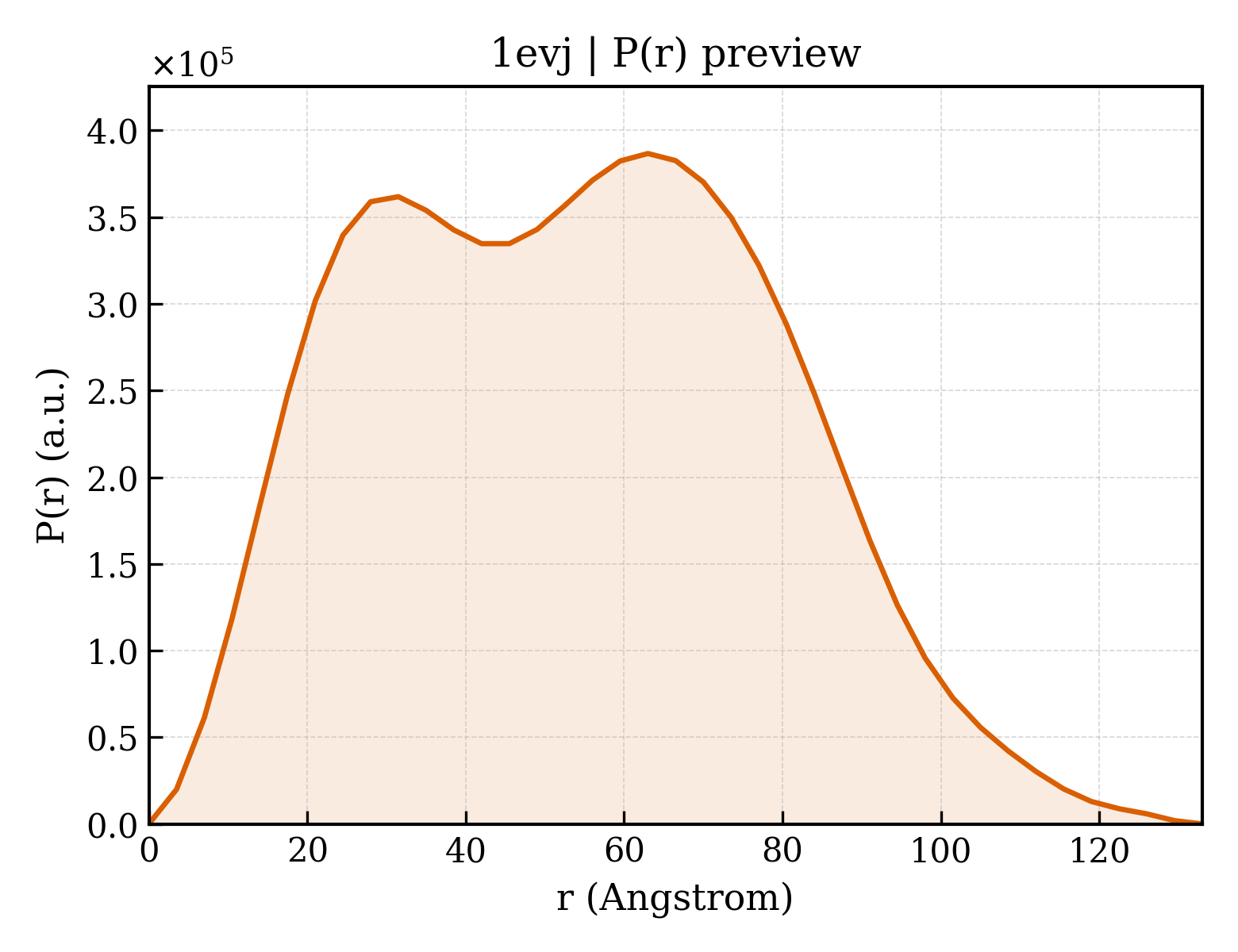

1evj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.78 Å
Rg (electron density)	28.69 Å
Total Rg	29.10 Å
Atom count	5250
Residues	677
Excluded volume	92432 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1evj__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1evj__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	GLUCOSE-FRUCTOSE OXIDOREDUCTASE
Molecular weight formula_weight	39264.6 kDa
Mutation mutation	S64D
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	10609

RRFGYAIVGLGKYALNQILPGFAGCQHSRIEALVDGNAEKAKIVAAEYGVDPRKIYDYSNFDKIAKDPKIDAVYIILPNSLHAEFAIRAFKAGKHVMCEKPMATSVADCQRMIDAAKAANKKLMIGYRCHYDPMNRAAVKLIRENQLGKLGMVTTDNSDVMDQNDPAQQWRLRRELAGGGSLMDIGIYGLNGTRYLLGEEPIEVRAYTYSDPNDERFVEVEDRIIWQMRFRSGALSHGASSYSTTTTSRFSVQGDKAVLLMDPATGYYQNLISVQTPGHANQSMMPQFIMPANNQFSAQLDHLAEAVINNKPVRSPGEEGMQDVRLIQAIYEAARTGRPVNTDWGYVRQGGY

Source Source

Source organism organism	Zymomonas mobilis
NCBI taxonomy ID ncbi_taxonomy_id	542
Host organism host_organism	Zymomonas mobilis

Entity 2 Entity 2 non-polymer

Description description	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
Molecular weight formula_weight	663.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	130

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1evja1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1evja2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.5 — Glucose 6-phosphate dehydrogenase-like

Domain ID domain_id	d1evjb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1evjb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.5 — Glucose 6-phosphate dehydrogenase-like

Domain ID domain_id	d1evjc1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1evjc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.5 — Glucose 6-phosphate dehydrogenase-like

Domain ID domain_id	d1evjd1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1evjd2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.5 — Glucose 6-phosphate dehydrogenase-like

CATH v4.4 (8 domains)

Domain ID domain_id	1evjA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1evjA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

Domain ID domain_id	1evjB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1evjB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

Domain ID domain_id	1evjC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1evjC02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

Domain ID domain_id	1evjD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1evjD02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

▶

Unit-cell length a length_a	47.710 Å
Unit-cell length b length_b	91.460 Å
Unit-cell length c length_c	98.920 Å
Unit-cell angle α angle_alpha	64.53 °
Unit-cell angle β angle_beta	84.45 °
Unit-cell angle γ angle_gamma	75.28 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	39.140 Å
R factor r_factor	0.2410
R_work r_work	0.2410
R_free r_free	0.2840
