1evq

THE CRYSTAL STRUCTURE OF THE THERMOPHILIC CARBOXYLESTERASE EST2 FROM ALICYCLOBACILLUS ACIDOCALDARIUS

Method: X-RAY DIFFRACTION D_max: 59.7 Å Quality: GOOD

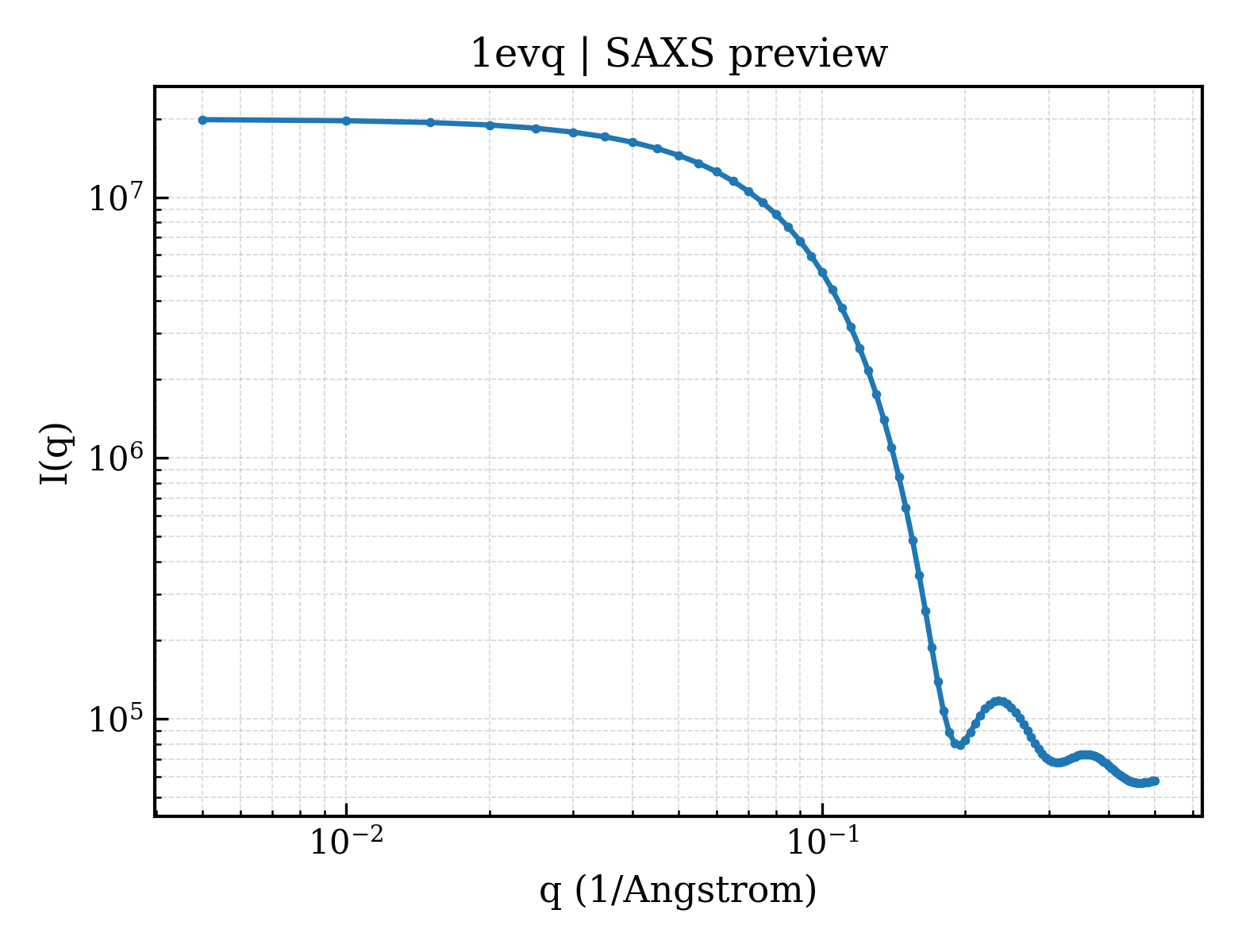

SAXS Profile

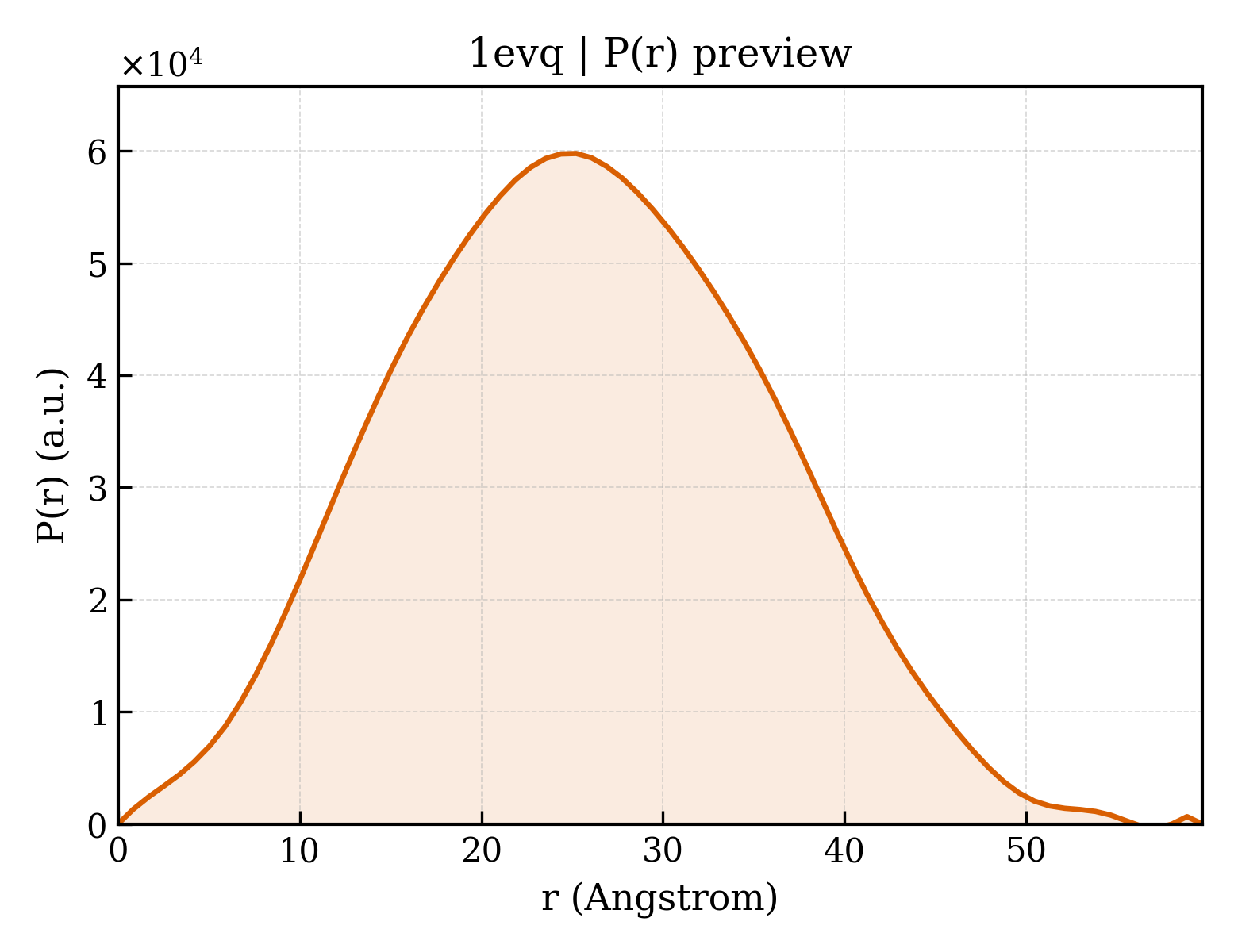

P(r) Distribution

▼

1. Structure Basics

entry_id	1evq
deposition_date	2000-04-20
title	THE CRYSTAL STRUCTURE OF THE THERMOPHILIC CARBOXYLESTERASE EST2 FROM ALICYCLOBACILLUS ACIDOCALDARIUS
keywords	alpha/beta hydrolase fold, HYDROLASE; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	19.55 Å
rg_electron	18.26 Å
i0	19899500.00
molecular_weight	34597.0 kDa
excluded_volume	43438 Å³
envelope_volume	48603 Å³
shell_volume	21501 Å³
envelope_diameter	62.5 Å
shell_rg	25.36 Å
envelope_rg	18.50 Å
shape_rg	18.25 Å
total_rg	19.23 Å
total_atoms	2434
n_residues	304
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	59.7 Å
rg_real	19.39 Å
rg_real_error	0.28 Å
i0_real	1.9900e+07
i0_real_error	2.4700e+05
rg_reciprocal	19.41 Å
i0_reciprocal	19900000.0000
total_estimate	0.8214
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	25.2 Å
skewness	0.098
kurtosis	-0.451
angular_range	— – 0.4050 Å⁻¹
current_alpha	0.0000
highest_alpha	5927000.0000
n_real_points	72
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.900; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	SERINE HYDROLASE
formula_weight	34526.6 kDa
ec_number	3.1.1.1
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	2523

MPLDPVIQQVLDQLNRMPAPDYKHLSAQQFRSQQSLFPPVKKEPVAEVREFDMDLPGRTLKVRMYRPEGVEPPYPALVYYHGGGWVVGDLETHDPVCRVLAKDGRAVVFSVDYRLAPEHKFPAAVEDAYDALQWIAERAADFHLDPARIAVGGDSAGGNLAAVTSILAKERGGPALAFQLLIYPSTGYDPAHPPASIEENAEGYLLTGGMMLWFRDQYLNSLEELTHPWFSPVLYPDLSGLPPAYIATAQYDPLRDVGKLYAEALNKAGVKVEIENFEDLIHGFAQFYSLSPGATKALVRIAEKLRDALA

Source

organism	Alicyclobacillus acidocaldarius
ncbi_taxonomy_id	405212
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
formula_weight	238.3 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
formula_weight	122.1 kDa
src_method	syn
entity_count	1

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	78

▶

6. Citations (3)

▶

length_a	79.105 Å
length_b	79.105 Å
length_c	107.290 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 41 21 2
int_tables_number	92
crystal_system	—

resolution	2.600 Å
resolution_low	20.000 Å
r_factor	—
r_work	0.2160
r_free	0.2650
