1evs
CRYSTAL STRUCTURE OF HUMAN ONCOSTATIN M
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1evs |
| deposition_date | 2000-04-20 |
| title | CRYSTAL STRUCTURE OF HUMAN ONCOSTATIN M |
| keywords | 4-helix bundle, gp130 binding cytokine, CYTOKINE; CYTOKINE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.13 Å |
| rg_electron | 17.15 Å |
| i0 | 7023910.00 |
| molecular_weight | 18814.0 kDa |
| excluded_volume | 23364 ų |
| envelope_volume | 27521 ų |
| shell_volume | 14138 ų |
| envelope_diameter | 66.0 Å |
| shell_rg | 22.50 Å |
| envelope_rg | 17.63 Å |
| shape_rg | 17.14 Å |
| total_rg | 18.07 Å |
| total_atoms | 1319 |
| n_residues | 163 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

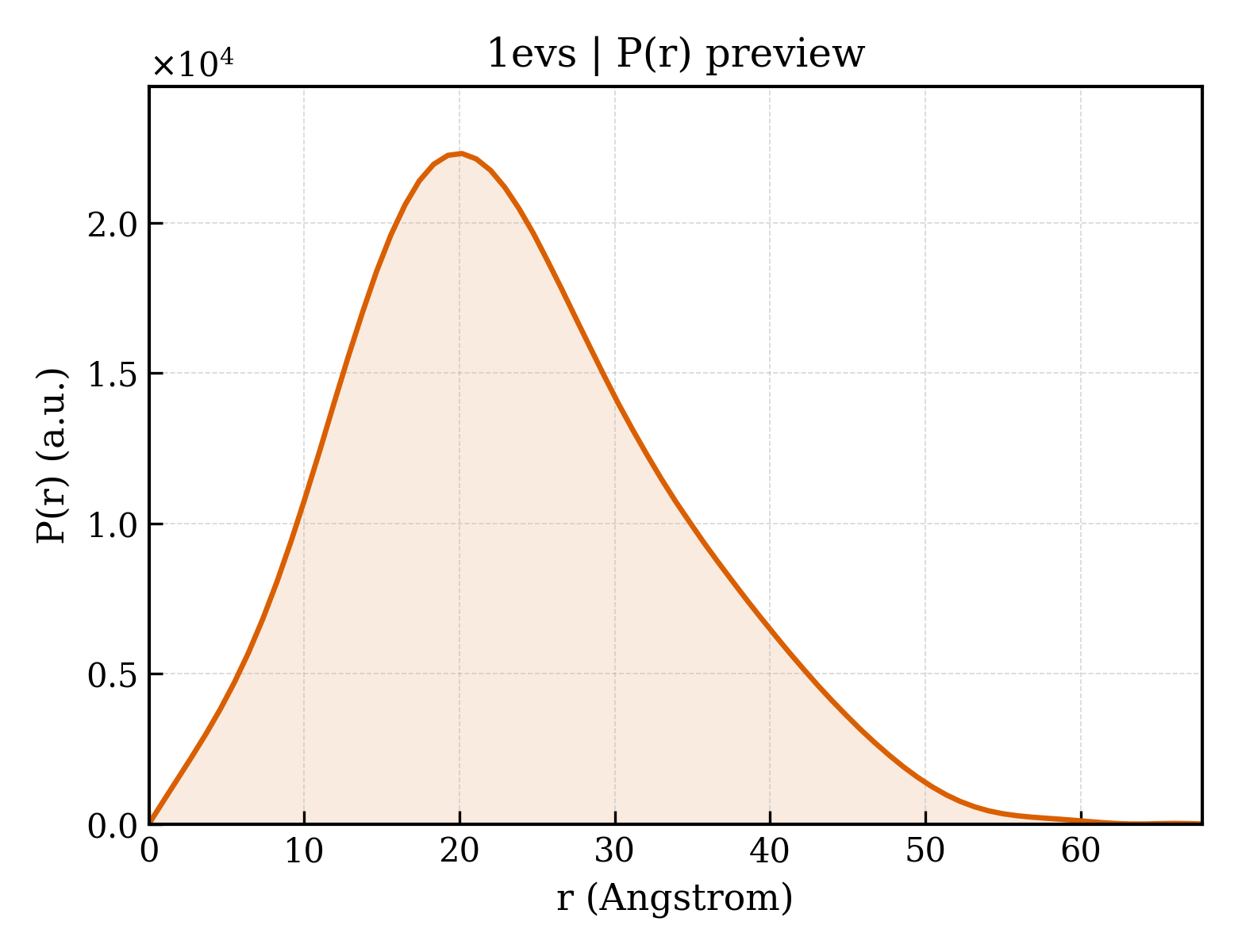

3. P(r) Analysis (GNOM)
| dmax | 67.8 Å |
| rg_real | 18.17 Å |
| rg_real_error | 0.55 Å |
| i0_real | 7.0240e+06 |
| i0_real_error | 9.3640e+04 |
| rg_reciprocal | 18.16 Å |
| i0_reciprocal | 7024000.0000 |
| total_estimate | 0.8109 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 20.2 Å |
| skewness | 0.440 |
| kurtosis | -0.144 |
| angular_range | — – 0.4400 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1590000.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.549; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.890; Smooth: 0.999 |
