1ew3
CRYSTAL STRUCTURE OF THE MAJOR HORSE ALLERGEN EQU C 1

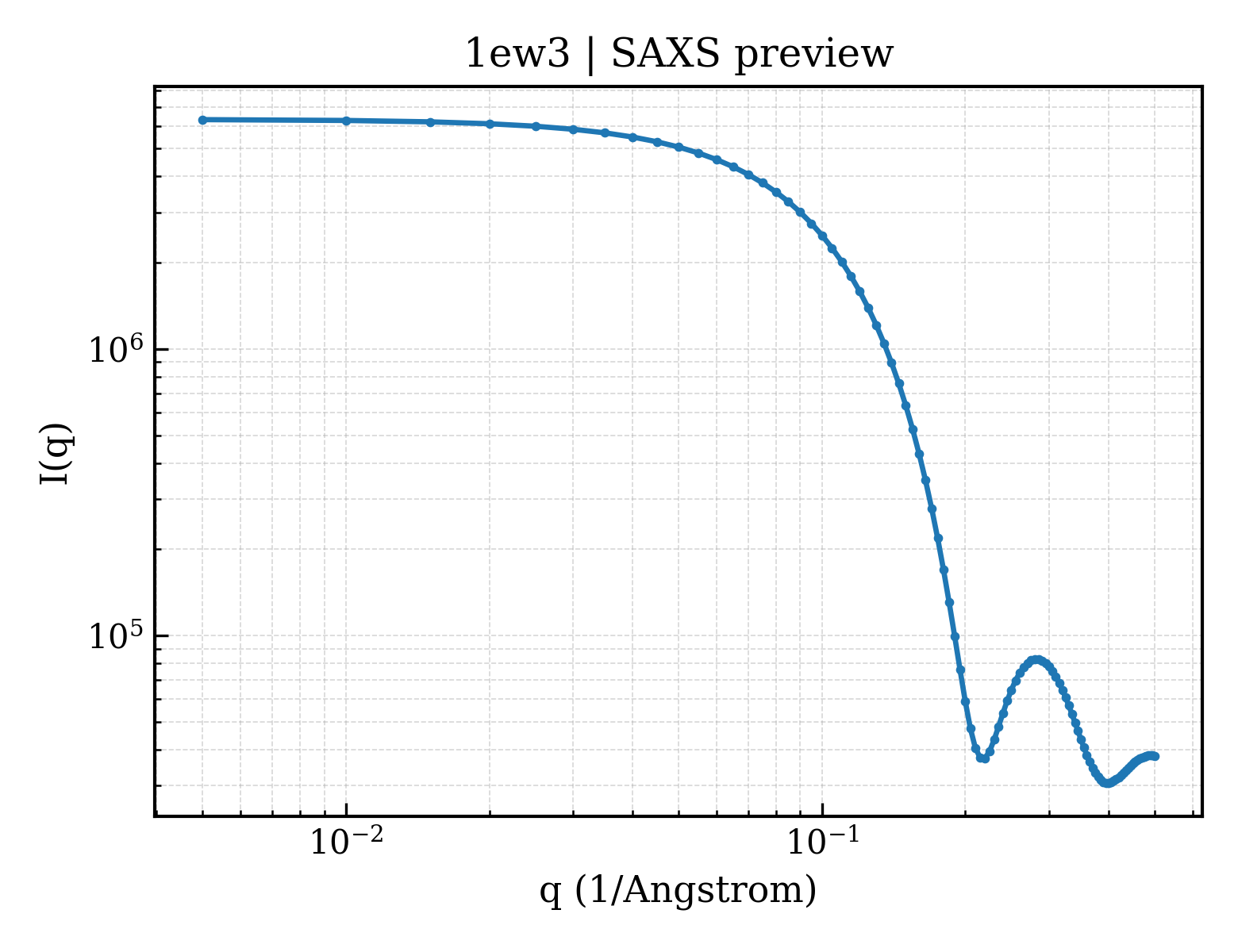

SAXS Profile

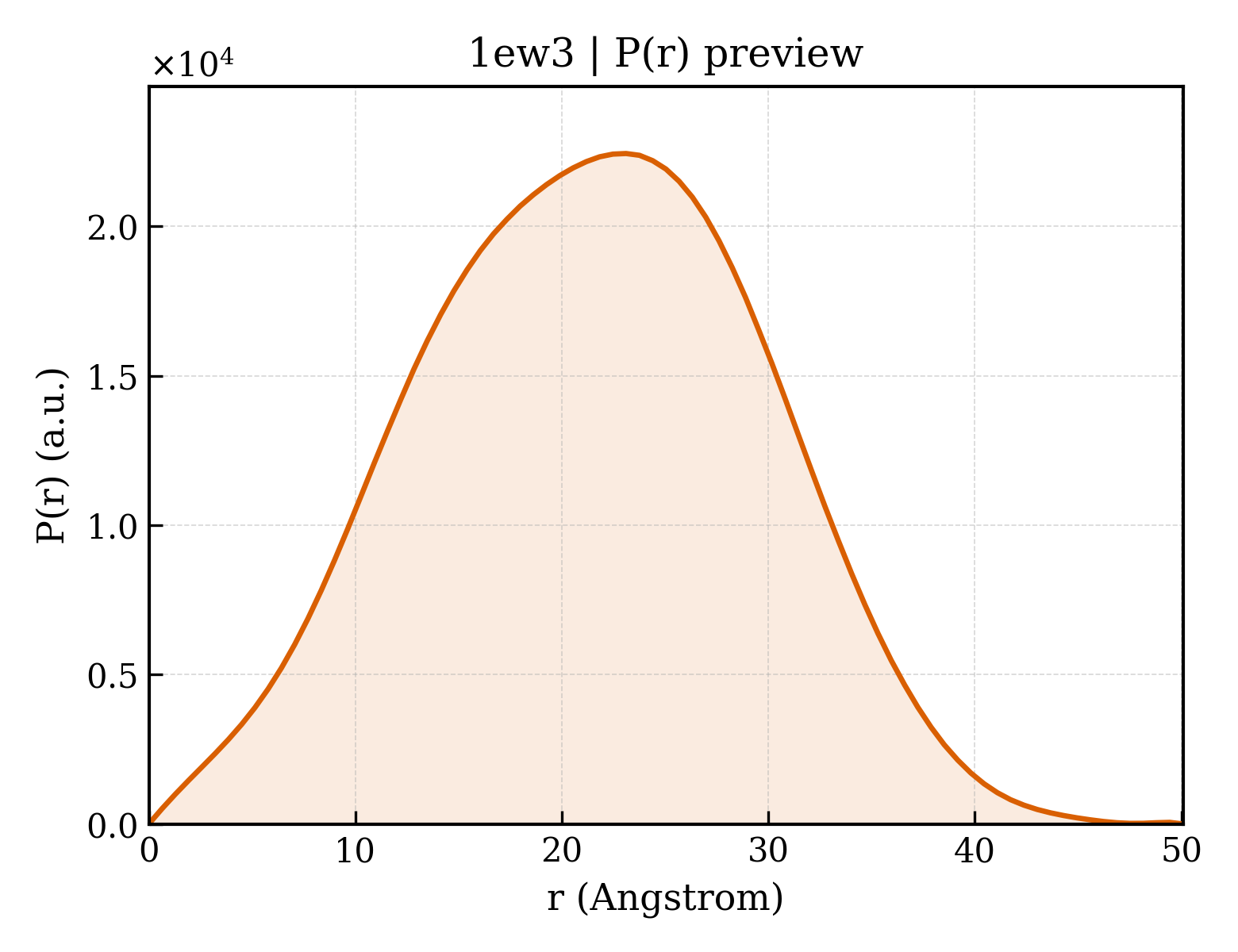

P(r) Distribution
1. Structure Basics
| entry_id | 1ew3 |
| deposition_date | 2000-04-21 |
| title | CRYSTAL STRUCTURE OF THE MAJOR HORSE ALLERGEN EQU C 1 |
| keywords | lipocalin, beta barrel, ALLERGEN; ALLERGEN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.40 Å |
| rg_electron | 14.82 Å |
| i0 | 6330400.00 |
| molecular_weight | 18628.0 kDa |
| excluded_volume | 23443 ų |
| envelope_volume | 25909 ų |
| shell_volume | 14536 ų |
| envelope_diameter | 48.5 Å |
| shell_rg | 20.97 Å |
| envelope_rg | 15.08 Å |
| shape_rg | 14.79 Å |
| total_rg | 16.07 Å |
| total_atoms | 1317 |
| n_residues | 159 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 50.1 Å |
| rg_real | 16.23 Å |
| rg_real_error | 0.18 Å |
| i0_real | 6.3300e+06 |
| i0_real_error | 6.2430e+04 |
| rg_reciprocal | 16.25 Å |
| i0_reciprocal | 6330000.0000 |
| total_estimate | 0.8928 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 23.1 Å |
| skewness | -0.005 |
| kurtosis | -0.467 |
| angular_range | — – 0.4850 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1331000.0000 |
| n_real_points | 79 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.881; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.969; Smooth: 0.992 |
