1exy
SOLUTION STRUCTURE OF HTLV-1 PEPTIDE BOUND TO ITS RNA APTAMER TARGET

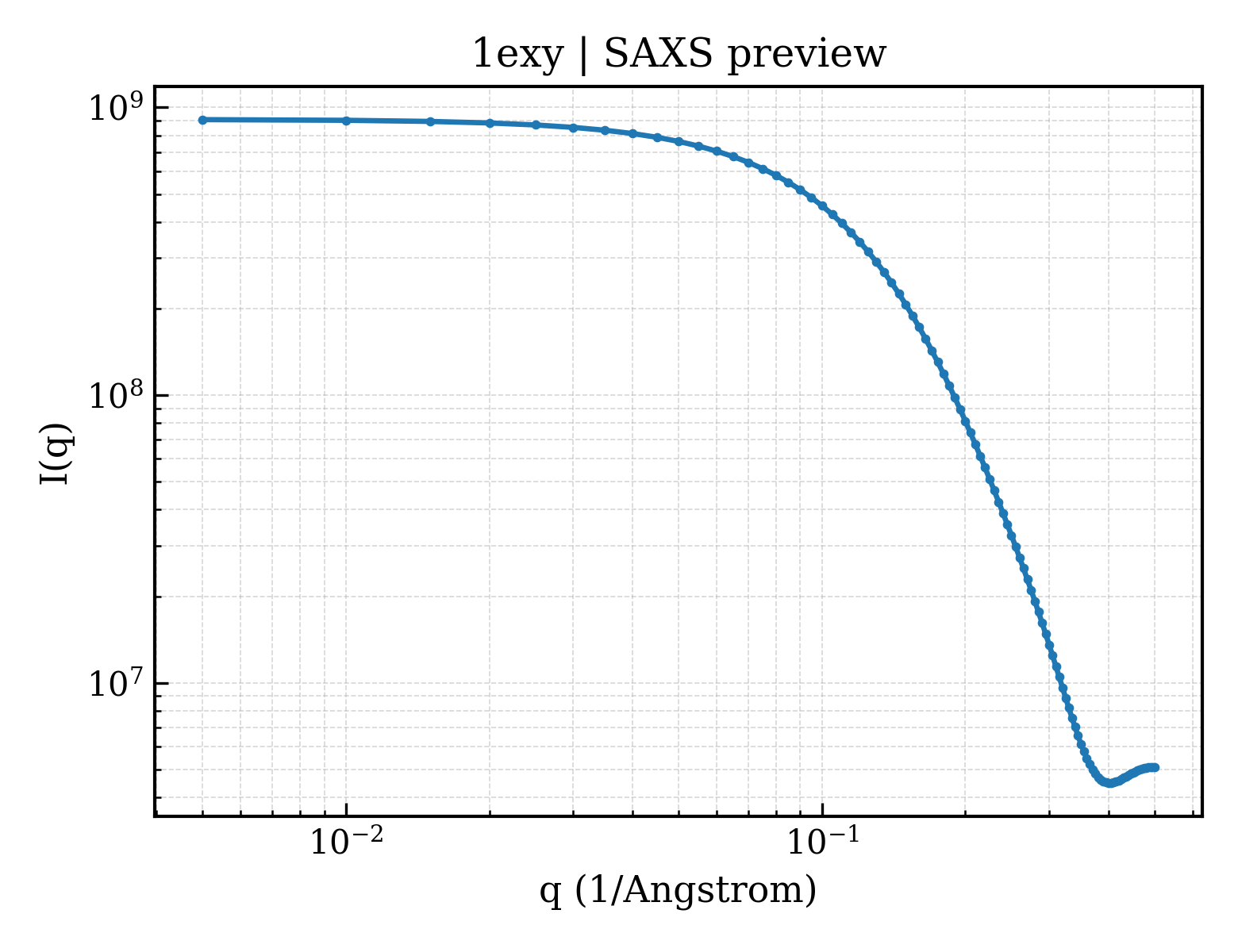

SAXS Profile

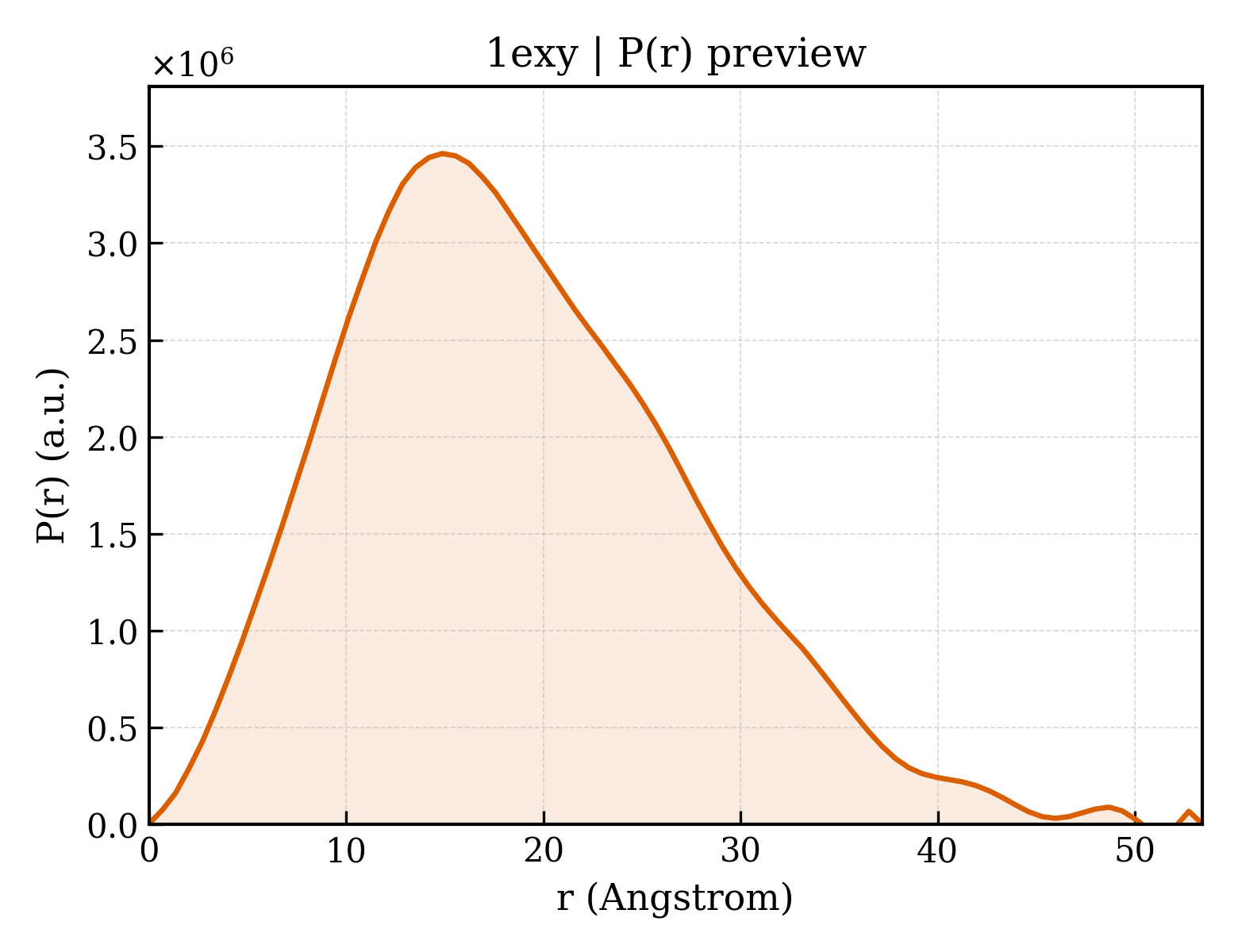

P(r) Distribution
1. Structure Basics
| entry_id | 1exy |
| deposition_date | 2000-05-05 |
| title | SOLUTION STRUCTURE OF HTLV-1 PEPTIDE BOUND TO ITS RNA APTAMER TARGET |
| keywords | ;arginine-guanine sandwich, extended bound basic Rex peptide, flap base, junctional base triplets, RNA binding pocket architecture, RNA BINDING PROTEIN-RNA COMPLEX ;; RNA BINDING PROTEIN/RNA |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.52 Å |
| rg_electron | 14.43 Å |
| i0 | 908352000.00 |
| molecular_weight | 153410.0 kDa |
| excluded_volume | 150450 ų |
| envelope_volume | 25173 ų |
| shell_volume | 13614 ų |
| envelope_diameter | 59.2 Å |
| shell_rg | 21.52 Å |
| envelope_rg | 16.61 Å |
| shape_rg | 14.32 Å |
| total_rg | 14.73 Å |
| total_atoms | 16584 |
| n_residues | 588 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 53.4 Å |
| rg_real | 14.59 Å |
| rg_real_error | 0.48 Å |
| i0_real | 9.0840e+08 |
| i0_real_error | 1.0650e+07 |
| rg_reciprocal | 14.58 Å |
| i0_reciprocal | 908400000.0000 |
| total_estimate | 0.7295 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 14.9 Å |
| skewness | 0.526 |
| kurtosis | 0.007 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1009000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.602; Stabil: 0.992; Sysdev: 1.000; Positv: 1.000; Valcen: 0.699; Smooth: 0.000 |
