CRYSTAL STRUCTURE OF APO HUMAN HOMOGENTISATE DIOXYGENASE

Method: X-RAY DIFFRACTION D_max: 90.9 Å Quality: GOOD

SAXS Profile

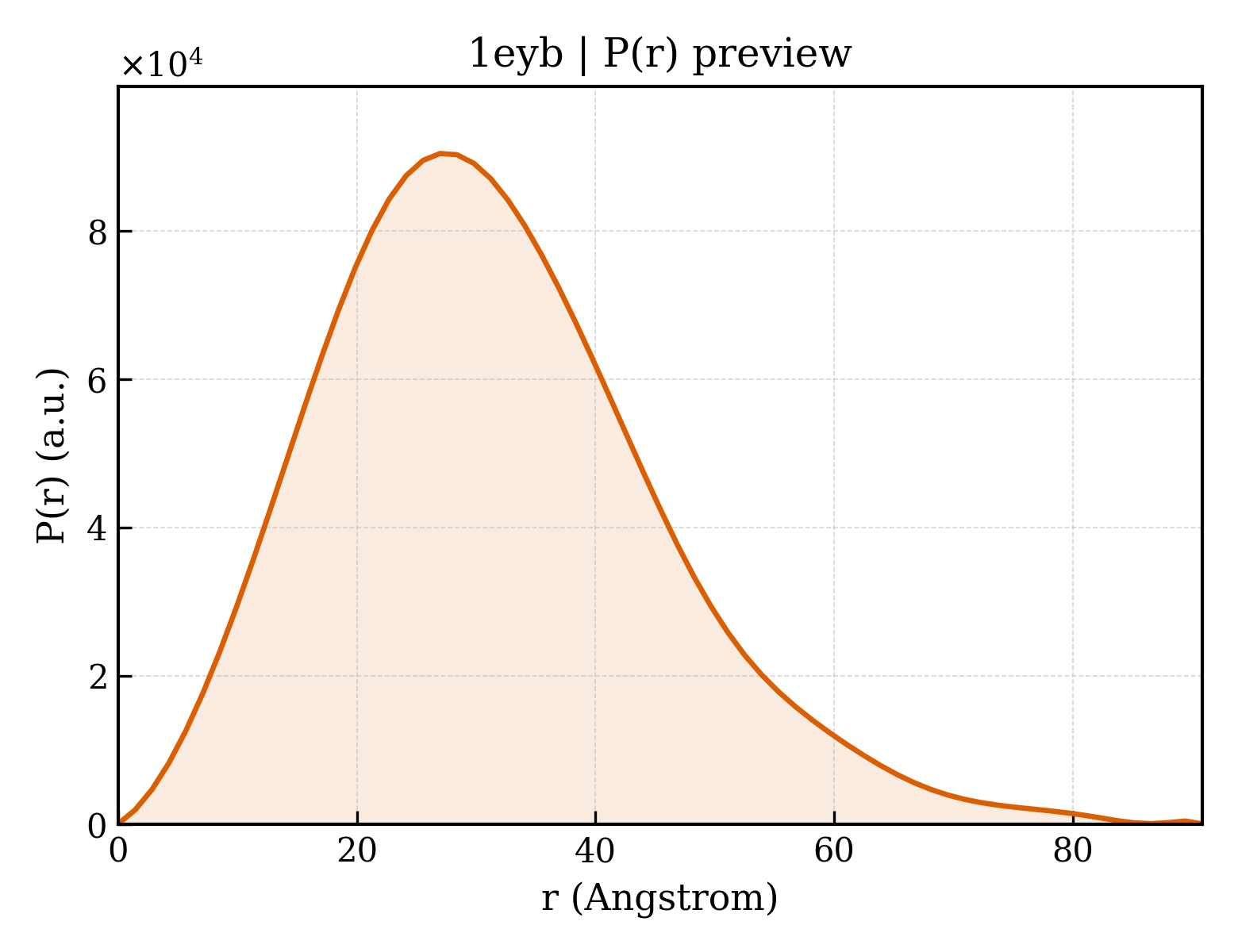

P(r) Distribution

▼

1. Structure Basics

entry_id	1eyb
deposition_date	2000-05-05
title	CRYSTAL STRUCTURE OF APO HUMAN HOMOGENTISATE DIOXYGENASE
keywords	jelly roll, beta sandwich, OXIDOREDUCTASE; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	24.08 Å
rg_electron	23.13 Å
i0	37968100.00
molecular_weight	47239.0 kDa
excluded_volume	58811 Å³
envelope_volume	73220 Å³
shell_volume	26488 Å³
envelope_diameter	96.4 Å
shell_rg	30.16 Å
envelope_rg	24.21 Å
shape_rg	23.16 Å
total_rg	23.89 Å
total_atoms	3303
n_residues	410
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	90.9 Å
rg_real	24.17 Å
rg_real_error	0.88 Å
i0_real	3.7970e+07
i0_real_error	6.1220e+05
rg_reciprocal	24.15 Å
i0_reciprocal	37970000.0000
total_estimate	0.7979
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	27.0 Å
skewness	0.580
kurtosis	0.339
angular_range	— – 0.3300 Å⁻¹
current_alpha	0.0000
highest_alpha	7661000.0000
n_real_points	65
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.524; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.856; Smooth: 0.938

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	158.380 Å
length_b	158.380 Å
length_c	93.459 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	12

space_group	P 63 2 2
int_tables_number	182
crystal_system	—

resolution	1.900 Å
resolution_low	30.000 Å
r_factor	0.1920
r_work	0.1920
r_free	0.2220

description	HOMOGENTISATE 1,2-DIOXYGENASE
formula_weight	53648.6 kDa
ec_number	1.13.11.5
src_method	man
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	3786

CRYSTAL STRUCTURE OF APO HUMAN HOMOGENTISATE DIOXYGENASE

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	483

fit	/app/data/saxs_computation/ey/1eyb/1eyb.fit
pddf	/app/data/pr_computation/ey/1eyb/1eyb.pr.out
profile	/app/data/saxs_computation/ey/1eyb/1eyb.dat
