1eyo
SOLUTION STRUCTURE OF CONOTOXIN TVIIA FROM CONUS TULIPA

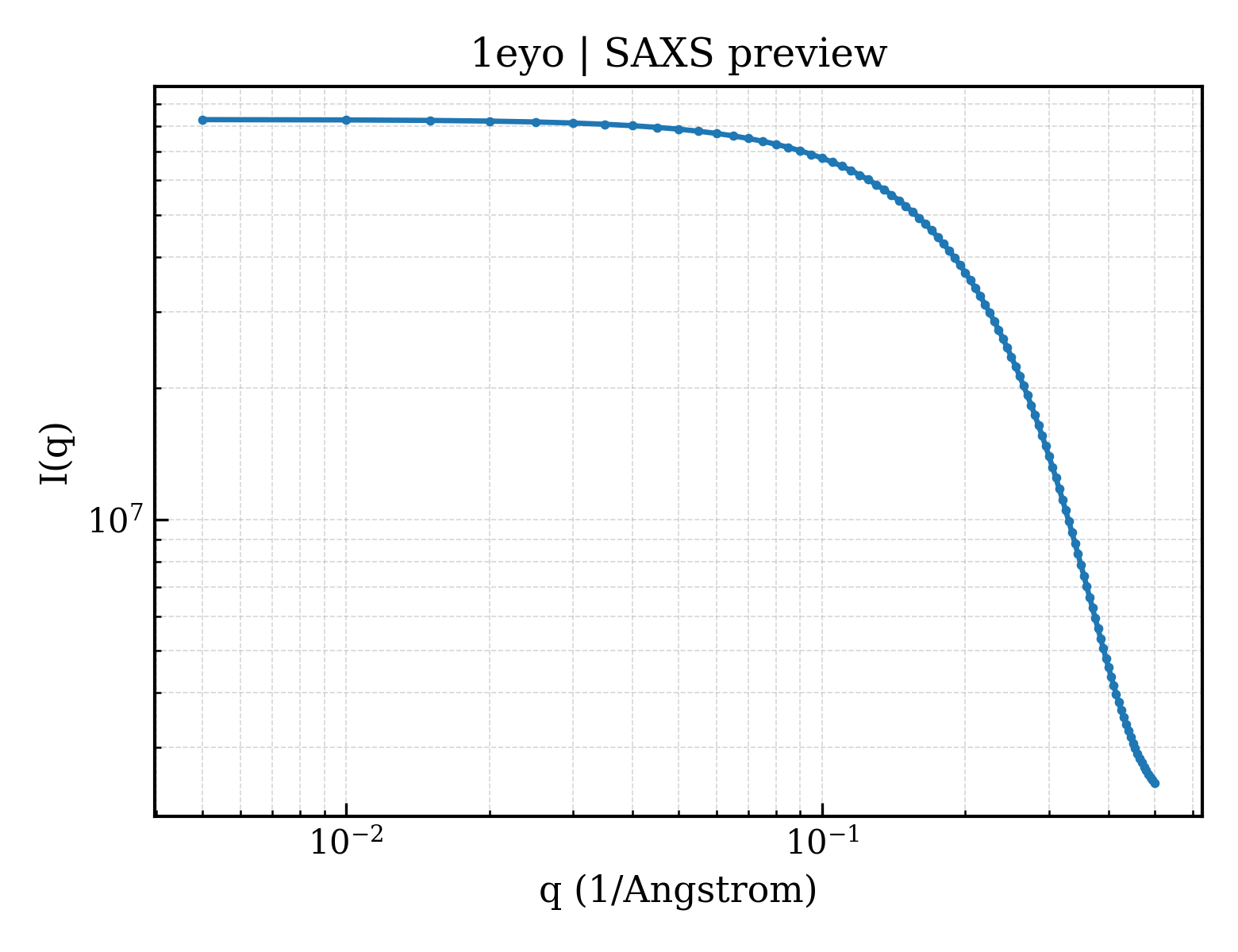

SAXS Profile

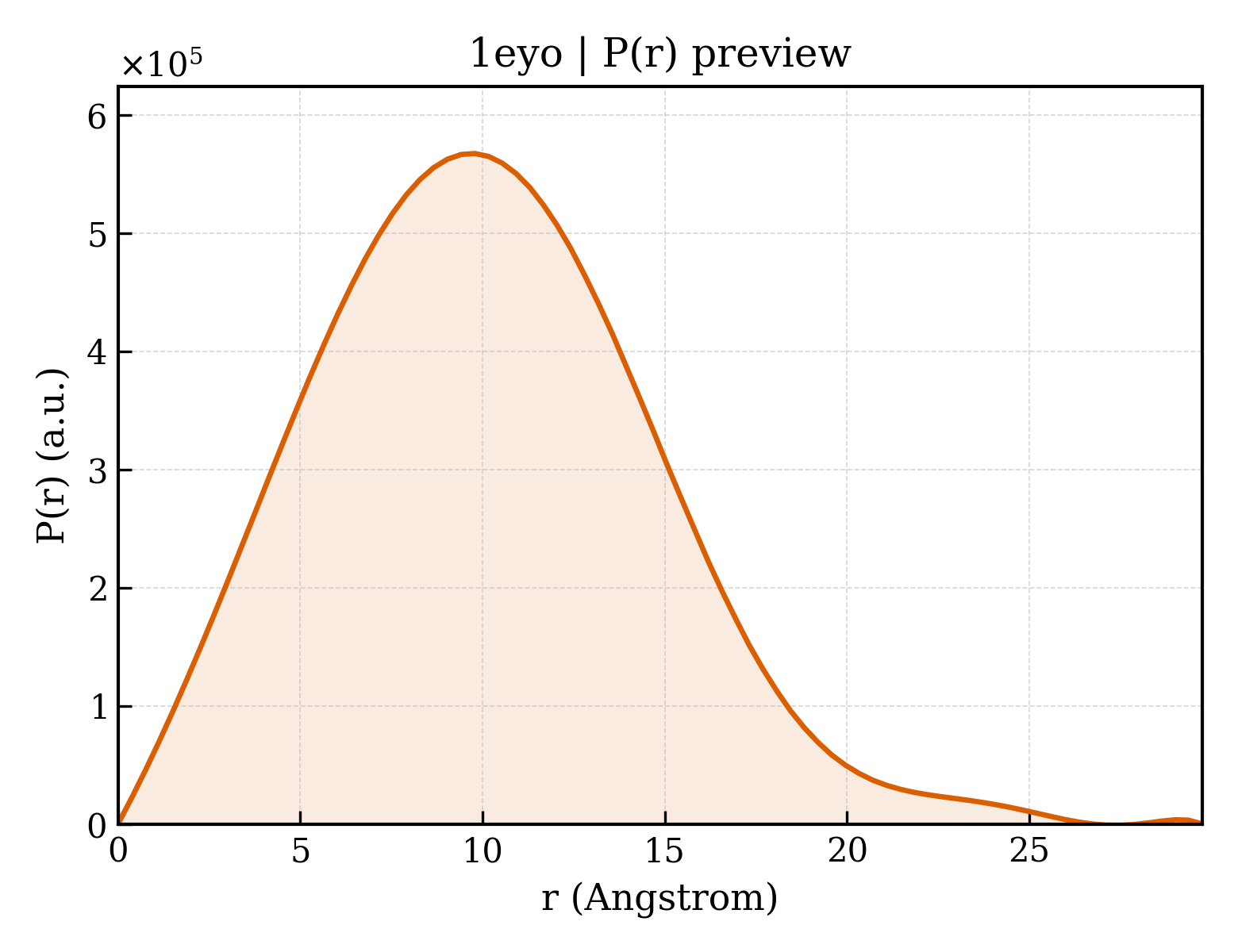

P(r) Distribution
1. Structure Basics
| entry_id | 1eyo |
| deposition_date | 2000-05-07 |
| title | SOLUTION STRUCTURE OF CONOTOXIN TVIIA FROM CONUS TULIPA |
| keywords | cystine knot motif, TOXIN; TOXIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 7.81 Å |
| rg_electron | 8.12 Å |
| i0 | 82795800.00 |
| molecular_weight | 64436.0 kDa |
| excluded_volume | 76115 ų |
| envelope_volume | 6821 ų |
| shell_volume | 6318 ų |
| envelope_diameter | 31.9 Å |
| shell_rg | 14.74 Å |
| envelope_rg | 10.17 Å |
| shape_rg | 8.13 Å |
| total_rg | 8.31 Å |
| total_atoms | 8440 |
| n_residues | 560 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 29.8 Å |
| rg_real | 7.82 Å |
| rg_real_error | 0.33 Å |
| i0_real | 8.2800e+07 |
| i0_real_error | 8.9310e+05 |
| rg_reciprocal | 7.82 Å |
| i0_reciprocal | 82800000.0000 |
| total_estimate | 0.8205 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 9.8 Å |
| skewness | 0.376 |
| kurtosis | 0.065 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 8036.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.644; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.785; Smooth: 0.946 |
