CRYSTAL STRUCTURE OF HUMAN TRANSALDOLASE

Method: X-RAY DIFFRACTION D_max: 91.0 Å Quality: EXCELLENT

SAXS Profile

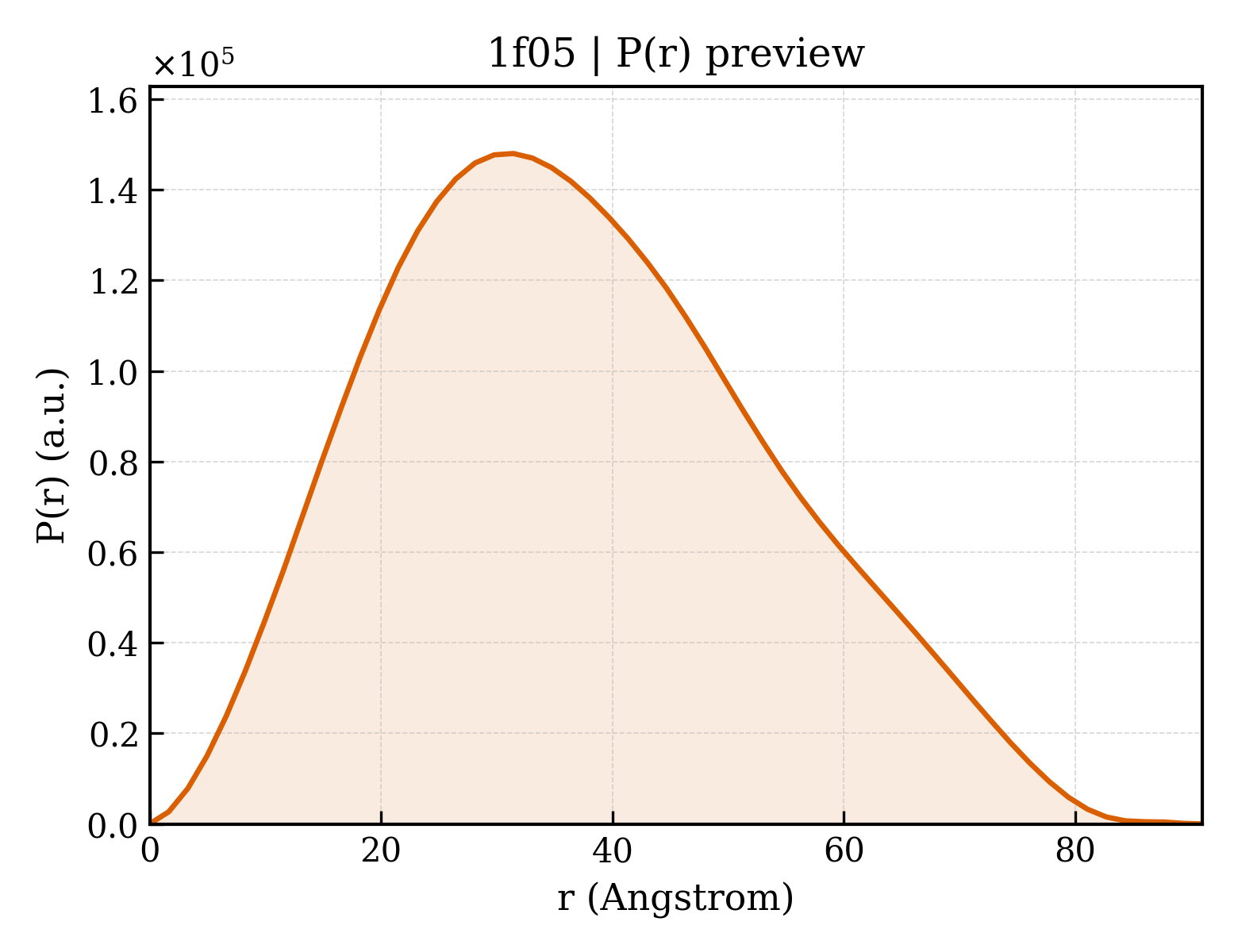

P(r) Distribution

▼

1. Structure Basics

entry_id	1f05
deposition_date	2000-05-14
title	CRYSTAL STRUCTURE OF HUMAN TRANSALDOLASE
keywords	alpha-beta barrel, TRANSFERASE; TRANSFERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	28.62 Å
rg_electron	27.89 Å
i0	79679100.00
molecular_weight	71723.0 kDa
excluded_volume	90534 Å³
envelope_volume	107540 Å³
shell_volume	32348 Å³
envelope_diameter	92.9 Å
shell_rg	35.16 Å
envelope_rg	27.93 Å
shape_rg	27.86 Å
total_rg	28.69 Å
total_atoms	5046
n_residues	644
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	91.0 Å
rg_real	28.61 Å
rg_real_error	0.71 Å
i0_real	7.9680e+07
i0_real_error	1.1930e+06
rg_reciprocal	28.62 Å
i0_reciprocal	79680000.0000
total_estimate	0.9024
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	31.4 Å
skewness	0.320
kurtosis	-0.510
angular_range	— – 0.2750 Å⁻¹
current_alpha	0.0000
highest_alpha	16710000.0000
n_real_points	56
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.927; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.965

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	45.570 Å
length_b	113.570 Å
length_c	69.190 Å
angle_alpha	90.00 °
angle_beta	101.37 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	2.450 Å
resolution_low	19.900 Å
r_factor	0.2250
r_work	0.2250
r_free	0.2580

description	TRANSALDOLASE
formula_weight	37591.1 kDa
ec_number	2.2.1.2
src_method	man
entity_count	2

type	polypeptide(L)
strand_id	A,B
atom_count	5138

CRYSTAL STRUCTURE OF HUMAN TRANSALDOLASE

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	92

fit	/app/data/saxs_computation/f0/1f05/1f05.fit
pddf	/app/data/pr_computation/f0/1f05/1f05.pr.out
profile	/app/data/saxs_computation/f0/1f05/1f05.dat
