1f08
CRYSTAL STRUCTURE OF THE DNA-BINDING DOMAIN OF THE REPLICATION INITIATION PROTEIN E1 FROM PAPILLOMAVIRUS
SAXS Profile

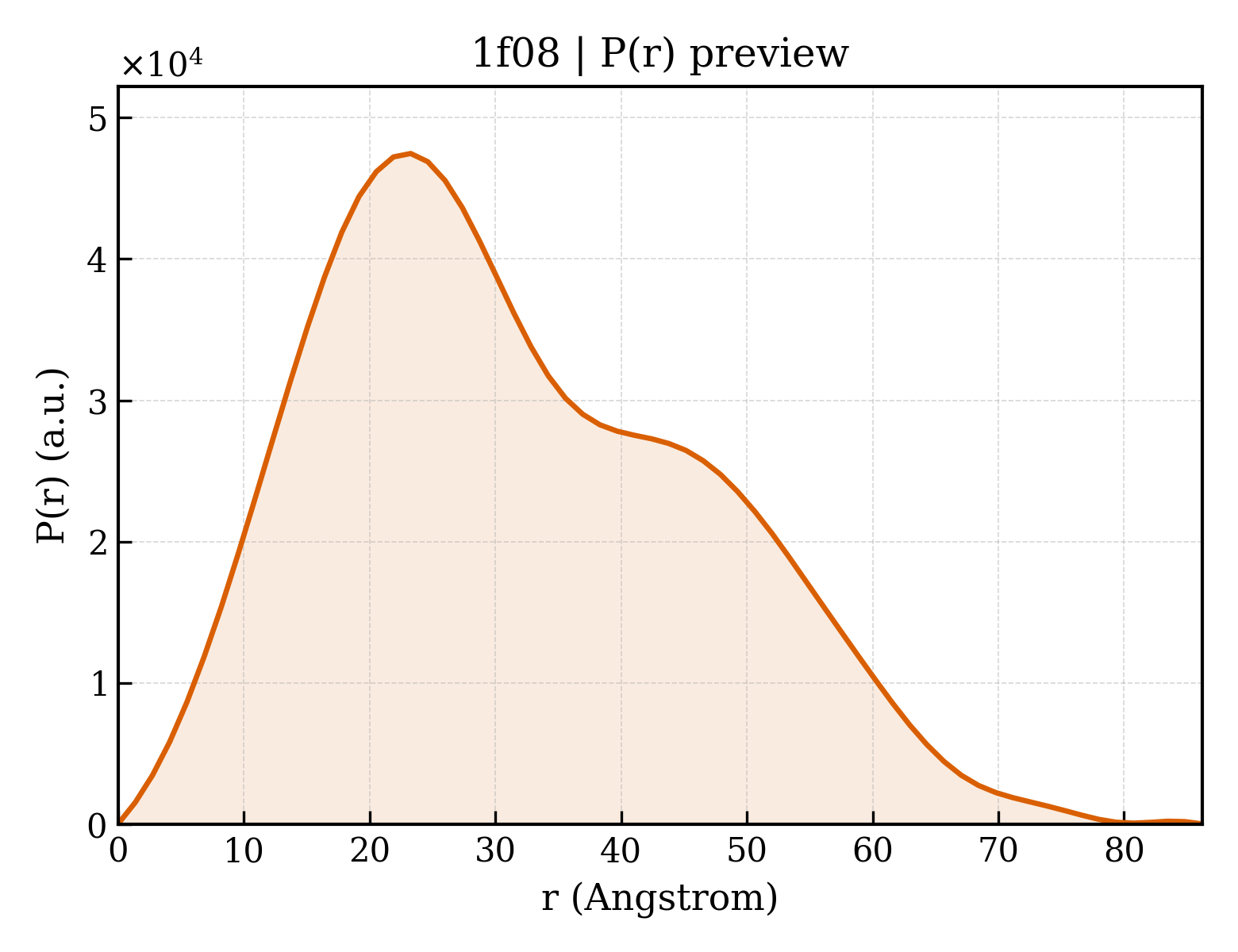

P(r) Distribution
1. Structure Basics
| entry_id | 1f08 |
| deposition_date | 2000-05-15 |
| title | CRYSTAL STRUCTURE OF THE DNA-BINDING DOMAIN OF THE REPLICATION INITIATION PROTEIN E1 FROM PAPILLOMAVIRUS |
| keywords | Papillomavirus, DNA-binding domain, replication, initiator protein, helicase; REPLICATION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 24.53 Å |
| rg_electron | 23.67 Å |
| i0 | 21238500.00 |
| molecular_weight | 34547.0 kDa |
| excluded_volume | 42835 ų |
| envelope_volume | 52670 ų |
| shell_volume | 19573 ų |
| envelope_diameter | 90.8 Å |
| shell_rg | 29.05 Å |
| envelope_rg | 23.92 Å |
| shape_rg | 23.51 Å |
| total_rg | 24.84 Å |
| total_atoms | 2363 |
| n_residues | 293 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 86.2 Å |
| rg_real | 24.70 Å |
| rg_real_error | 0.87 Å |
| i0_real | 2.1240e+07 |
| i0_real_error | 3.5760e+05 |
| rg_reciprocal | 24.67 Å |
| i0_reciprocal | 21240000.0000 |
| total_estimate | 0.8030 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 23.3 Å |
| skewness | 0.441 |
| kurtosis | -0.497 |
| angular_range | — – 0.3250 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 8592000.0000 |
| n_real_points | 64 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.601; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.638; Smooth: 0.992 |
