1f0z
SOLUTION STRUCTURE OF THIS, THE SULFUR CARRIER PROTEIN IN E.COLI THIAMIN BIOSYNTHESIS

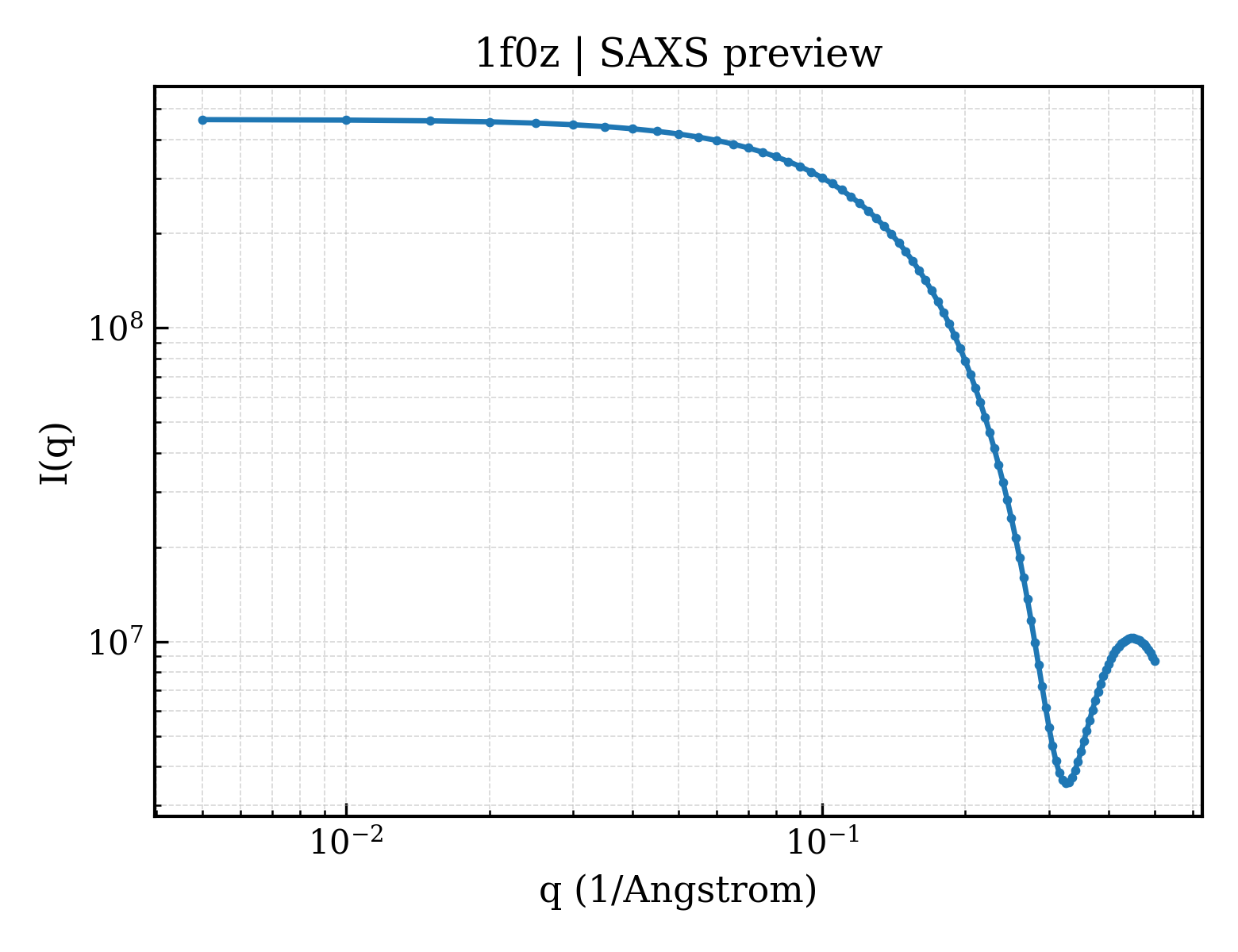

SAXS Profile

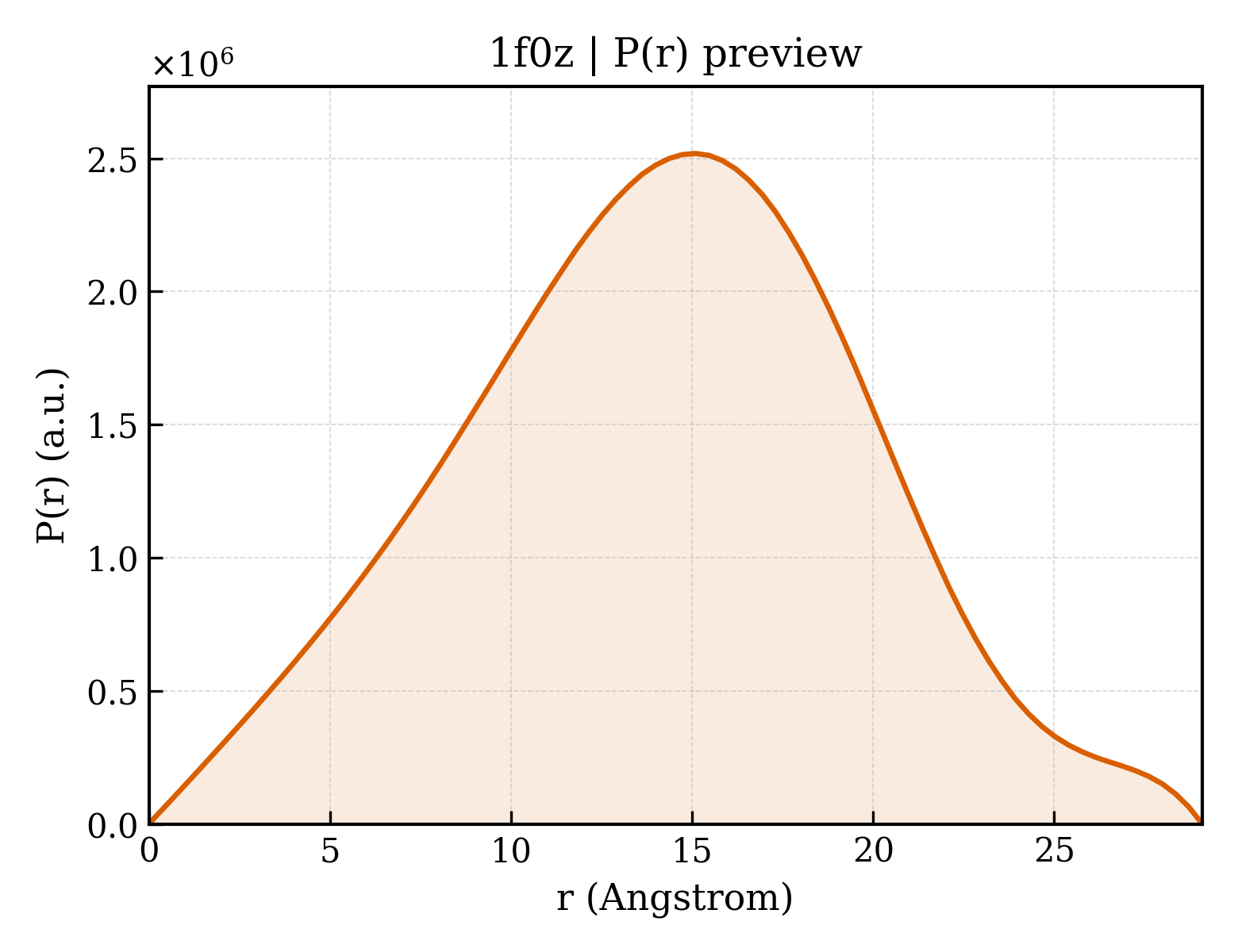

P(r) Distribution
1. Structure Basics
| entry_id | 1f0z |
| deposition_date | 2000-05-17 |
| title | SOLUTION STRUCTURE OF THIS, THE SULFUR CARRIER PROTEIN IN E.COLI THIAMIN BIOSYNTHESIS |
| keywords | Ubiquitin fold, TRANSPORT PROTEIN; TRANSPORT PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.31 Å |
| rg_electron | 10.85 Å |
| i0 | 462493000.00 |
| molecular_weight | 175350.0 kDa |
| excluded_volume | 216880 ų |
| envelope_volume | 19171 ų |
| shell_volume | 11792 ų |
| envelope_diameter | 58.3 Å |
| shell_rg | 19.82 Å |
| envelope_rg | 14.91 Å |
| shape_rg | 10.84 Å |
| total_rg | 11.11 Å |
| total_atoms | 24408 |
| n_residues | 1584 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 29.1 Å |
| rg_real | 10.72 Å |
| rg_real_error | 0.03 Å |
| i0_real | 4.4250e+08 |
| i0_real_error | 2.9400e+06 |
| rg_reciprocal | 11.30 Å |
| i0_reciprocal | 462500000.0000 |
| total_estimate | 0.6754 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 15.1 Å |
| skewness | -0.035 |
| kurtosis | -0.376 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 3.6830 |
| highest_alpha | 149600.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.002; Oscil: 0.975; Stabil: 0.962; Sysdev: 0.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.001 |
