1f1f
CRYSTAL STRUCTURE OF CYTOCHROME C6 FROM ARTHROSPIRA MAXIMA
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1f1f |
| deposition_date | 2000-05-18 |
| title | CRYSTAL STRUCTURE OF CYTOCHROME C6 FROM ARTHROSPIRA MAXIMA |
| keywords | cytochrome c6, heme, protein structure, cyanobacteria, photosynthesis, ELECTRON TRANSPORT; ELECTRON TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data

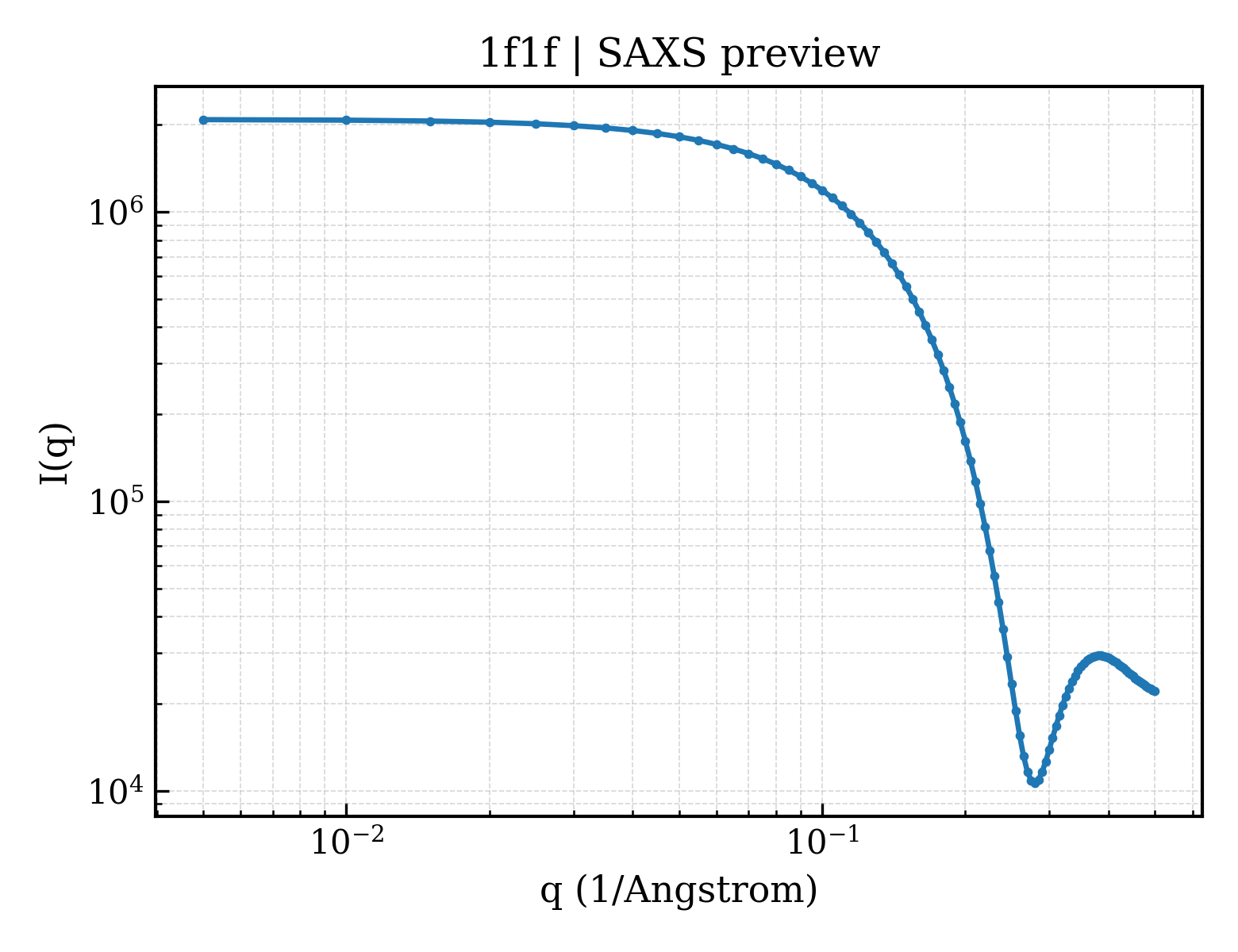

2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.90 Å |
| rg_electron | 11.49 Å |
| i0 | 2086880.00 |
| molecular_weight | 9782.0 kDa |
| excluded_volume | 12171 ų |
| envelope_volume | 12790 ų |
| shell_volume | 9481 ų |
| envelope_diameter | 35.7 Å |
| shell_rg | 17.18 Å |
| envelope_rg | 11.80 Å |
| shape_rg | 11.46 Å |
| total_rg | 12.93 Å |
| total_atoms | 686 |
| n_residues | 88 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

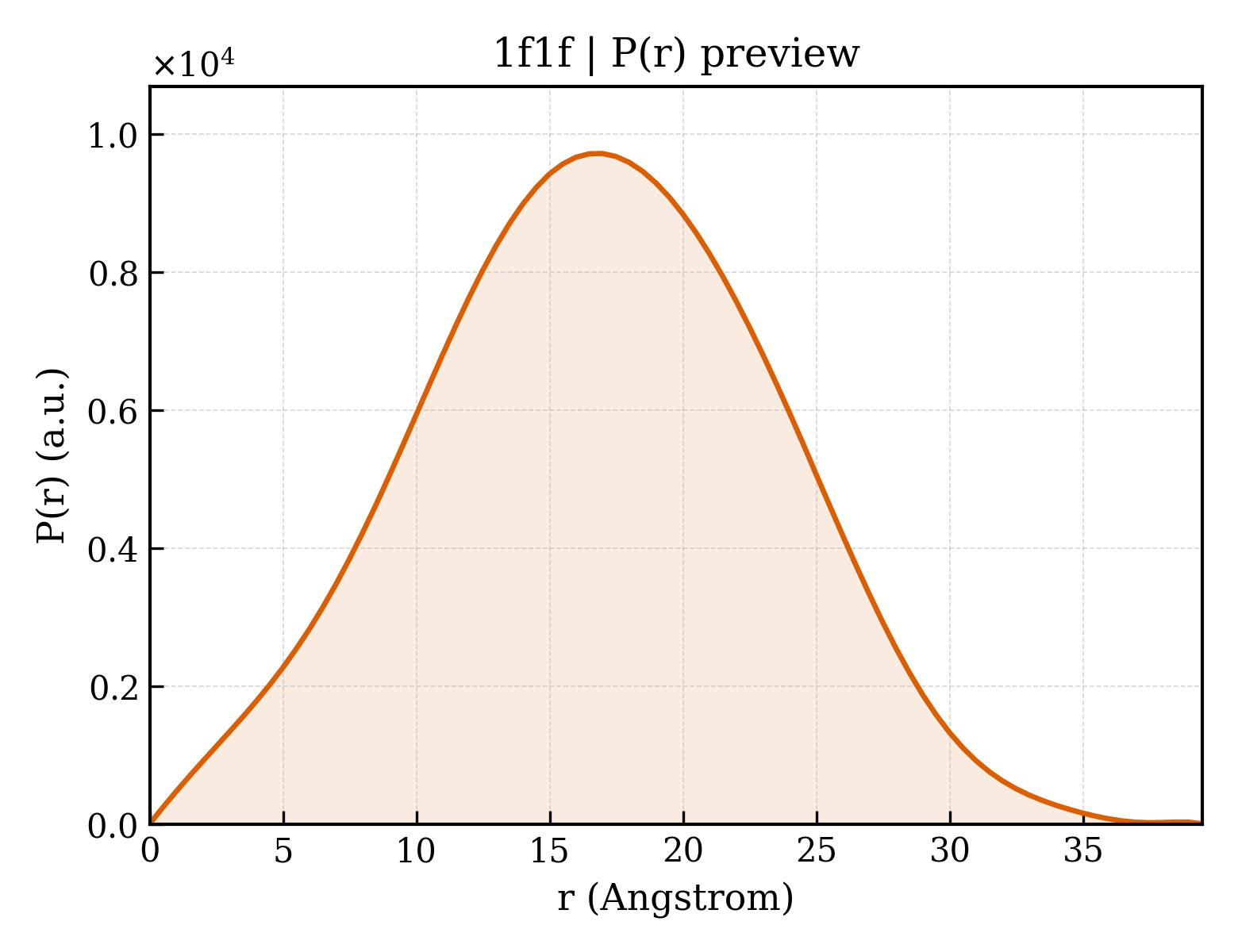

3. P(r) Analysis (GNOM)
| dmax | 39.5 Å |
| rg_real | 12.78 Å |
| rg_real_error | 0.17 Å |
| i0_real | 2.0870e+06 |
| i0_real_error | 1.9680e+04 |
| rg_reciprocal | 12.79 Å |
| i0_reciprocal | 2087000.0000 |
| total_estimate | 0.8931 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 17.0 Å |
| skewness | 0.021 |
| kurtosis | -0.374 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 489300.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.878; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.974; Smooth: 0.998 |
