1f1s

CRYSTAL STRUCTURE OF STREPTOCOCCUS AGALACTIAE HYALURONATE LYASE AT 2.1 ANGSTROM RESOLUTION.

Method: X-RAY DIFFRACTION D_max: 110.5 Å Quality: GOOD

SAXS Profile

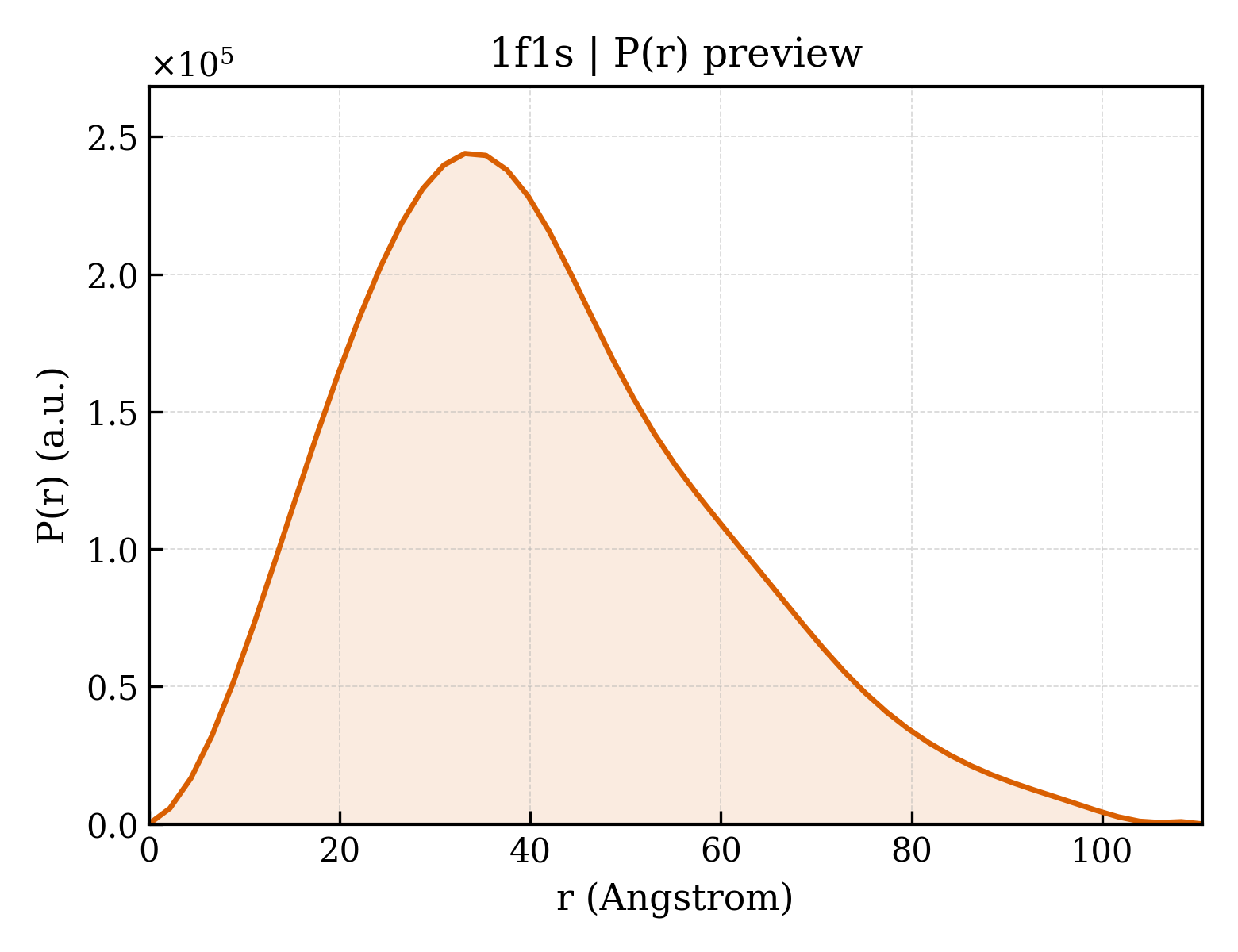

P(r) Distribution

▼

1. Structure Basics

entry_id	1f1s
deposition_date	2000-05-19
title	CRYSTAL STRUCTURE OF STREPTOCOCCUS AGALACTIAE HYALURONATE LYASE AT 2.1 ANGSTROM RESOLUTION.
keywords	;The structure consists of three distinct structural domains: two beta domains at two terminals and one alpha domain in the middle of the sequence., LYASE ;; LYASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	31.38 Å
rg_electron	31.20 Å
i0	136028000.00
molecular_weight	92387.0 kDa
excluded_volume	115360 Å³
envelope_volume	141550 Å³
shell_volume	38783 Å³
envelope_diameter	116.6 Å
shell_rg	37.23 Å
envelope_rg	31.41 Å
shape_rg	31.18 Å
total_rg	31.76 Å
total_atoms	6513
n_residues	814
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	110.5 Å
rg_real	31.57 Å
rg_real_error	1.00 Å
i0_real	1.3600e+08
i0_real_error	2.3780e+06
rg_reciprocal	31.49 Å
i0_reciprocal	136000000.0000
total_estimate	0.8389
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	33.1 Å
skewness	0.564
kurtosis	-0.029
angular_range	— – 0.2500 Å⁻¹
current_alpha	0.0000
highest_alpha	22030000.0000
n_real_points	51
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.685; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.960; Smooth: 0.887

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	HYALURONATE LYASE
formula_weight	92510.3 kDa
ec_number	4.2.2.1
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	7051

SEHPQPVTTQIEKSVNTALNKNYVFNKADYQYTLTNPSLGKIVGGILYPNATGSTTVKISDKSGKIIKEVPLSVTASTEDNFTKLLDKWNDVTIGNYVYDTNDSNMQKLNQKLDETNAKNIEAIKLDSNRTFLWKDLDNLNNSAQLTATYRRLEDLAKQITNPHSTIYKNEKAIRTVKESLAWLHQNFYNVNKDIEGSANWWDFEIGVPRSITGTLSLMNNYFTDAEIKTYTDPIEHFVPDAEYFRKTLVNPFKALGGNLVDMGRVKIIEGLLRKDNTIIEKTSHSLKNLFTTATKAEGFYADGSYIDHTNVAYTGAYGNVLIDGLTQLLPIIQETDYKISNQELDMVYKWINQSFLPLIVKGELMDMSRGRSISREAASSHAAAVEVLRGFLRLANMSNEERNLDLKSTIKTIITSNKFYNVFNNLKSYSDIANMNKLLNDSTVATKPLKSNLSTFNSMDRLAYYNAKKDFGFALSLHSKRTLNYEGMNDENTRGWYTGDGMFYIYNSDQSHYSNHFWPTVNPYKMAGTTEKDAKREDTTKEFMSKHSKDAKEKTGQVTGTSDFVGSVKLNDHFALAAMDFTNWDRTLTAQKGWVILNDKIVFLGSNIKNTNGIGNVSTTIDQRKDDSKTPYTTYVNGKTIDLKQASSQQFTDTKSVFLESKEPGRNIGYIFFKNSTIDIERKEQTGTWNSINRTSKNTSIVSNPFITISQKHDNKGDSYGYMMVPNIDRTSFDKLANSKEVELLENSSKQQVIYDKNSQTWAVIKHDNQESLINNQFKMNKAGLYLVQKVGNDYQNVYYQPQTMTKTDQLAI

Source

organism	Streptococcus agalactiae
ncbi_taxonomy_id	1311
host_organism	Escherichia coli

Entity 2 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	538

▶

6. Citations (1)

▶

length_a	51.265 Å
length_b	156.765 Å
length_c	237.429 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	C 2 2 21
int_tables_number	20
crystal_system	—

resolution	2.100 Å
resolution_low	20.000 Å
r_factor	—
r_work	0.1908
r_free	0.2530

fit	/app/data/saxs_computation/f1/1f1s/1f1s.fit
pddf	/app/data/pr_computation/f1/1f1s/1f1s.pr.out
profile	/app/data/saxs_computation/f1/1f1s/1f1s.dat
