1f21
DIVALENT METAL COFACTOR BINDING IN THE KINETIC FOLDING TRAJECTORY OF E. COLI RIBONUCLEASE HI

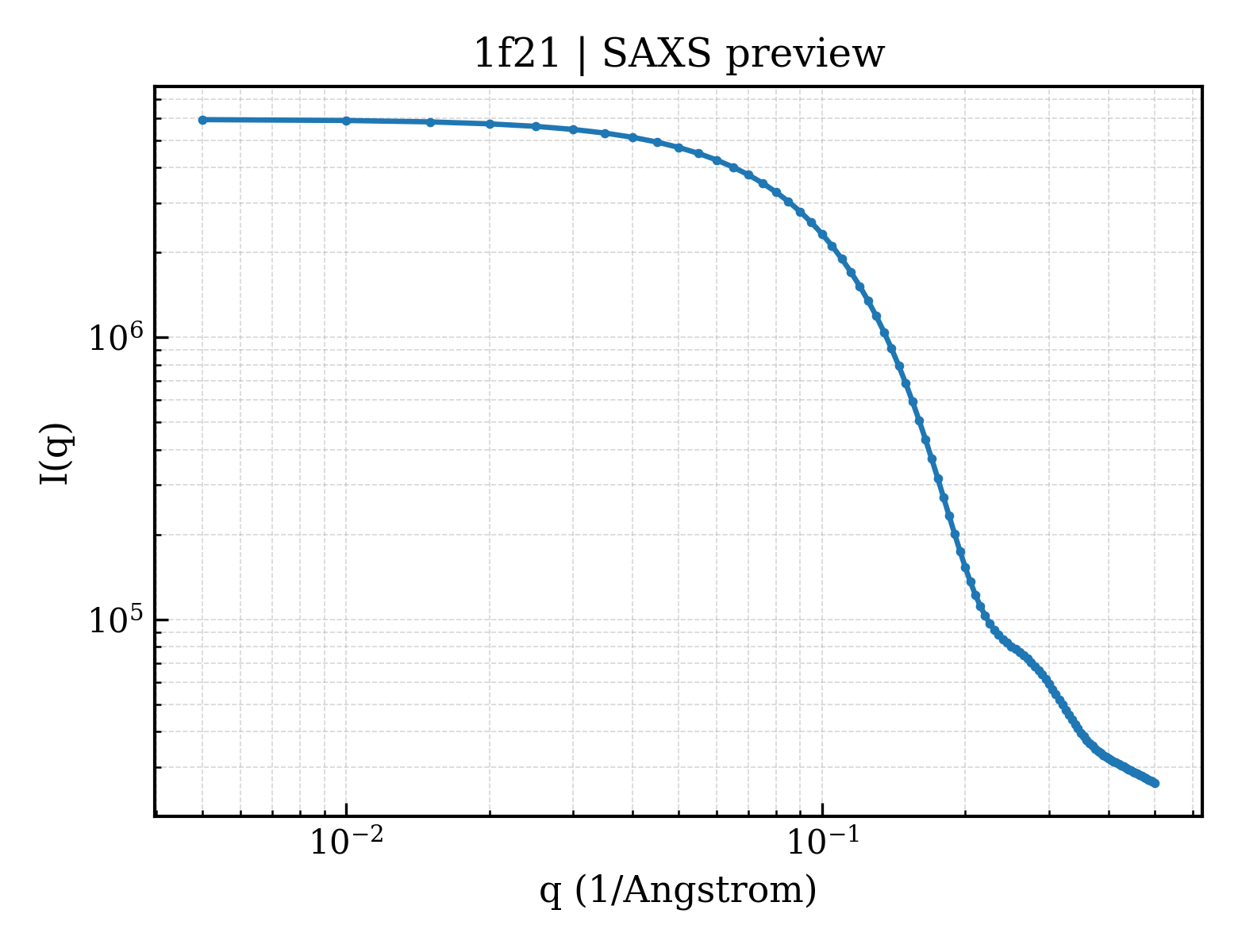

SAXS Profile

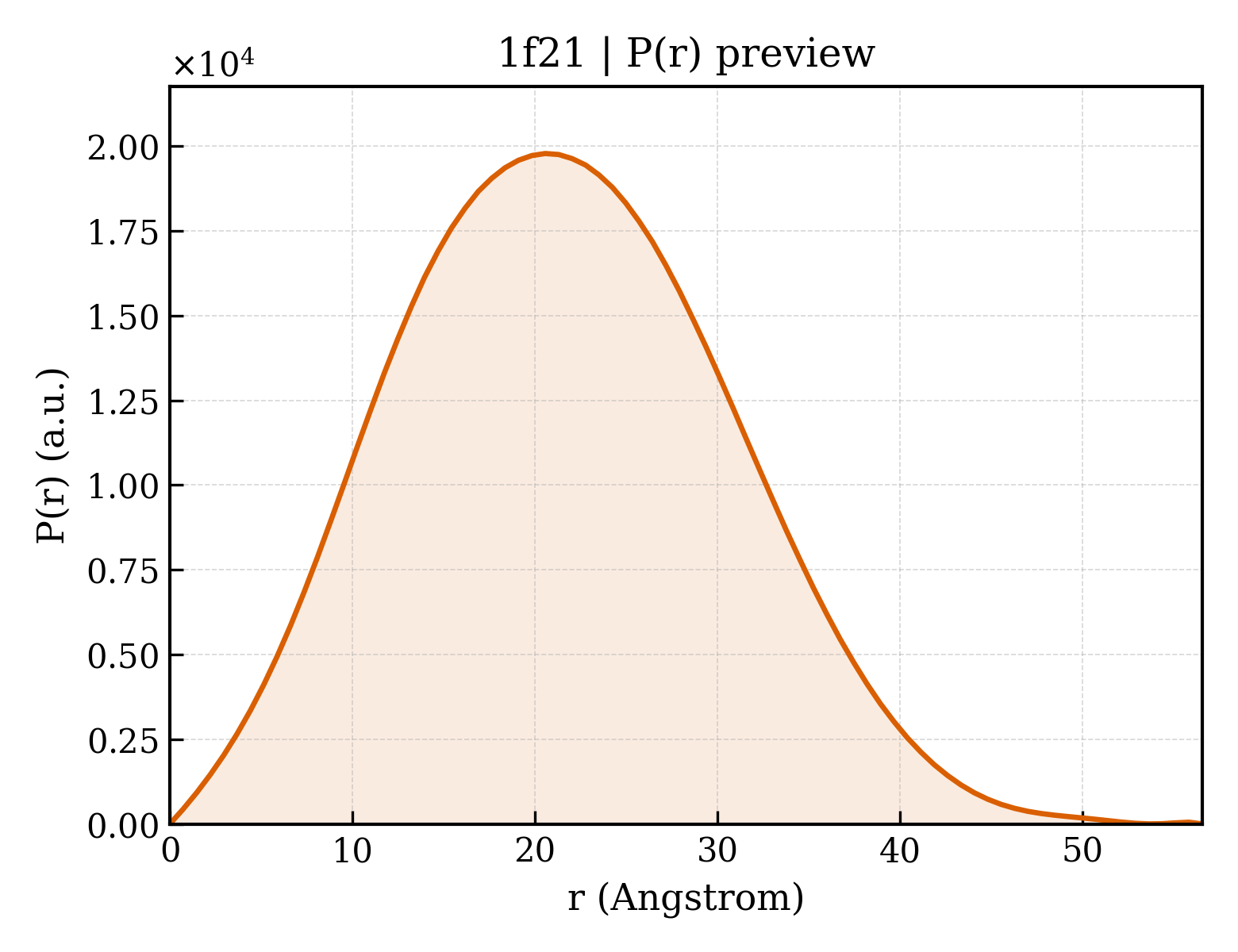

P(r) Distribution
1. Structure Basics
| entry_id | 1f21 |
| deposition_date | 2000-05-22 |
| title | DIVALENT METAL COFACTOR BINDING IN THE KINETIC FOLDING TRAJECTORY OF E. COLI RIBONUCLEASE HI |
| keywords | RNase H, nuclease, RNase H*, ribnuclease H, metal-binding protein, protein folding, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.61 Å |
| rg_electron | 15.43 Å |
| i0 | 5929370.00 |
| molecular_weight | 17142.0 kDa |
| excluded_volume | 21284 ų |
| envelope_volume | 24801 ų |
| shell_volume | 13680 ų |
| envelope_diameter | 55.7 Å |
| shell_rg | 21.15 Å |
| envelope_rg | 15.91 Å |
| shape_rg | 15.40 Å |
| total_rg | 16.58 Å |
| total_atoms | 1211 |
| n_residues | 152 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 56.5 Å |
| rg_real | 16.52 Å |
| rg_real_error | 0.31 Å |
| i0_real | 5.9290e+06 |
| i0_real_error | 6.0480e+04 |
| rg_reciprocal | 16.53 Å |
| i0_reciprocal | 5929000.0000 |
| total_estimate | 0.8763 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 20.6 Å |
| skewness | 0.206 |
| kurtosis | -0.342 |
| angular_range | — – 0.4800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1275000.0000 |
| n_real_points | 78 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.804; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.980 |
