SAXSdb — 1f3a

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GLUTATHIONE S-TRANSFERASE YA CHAIN

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	GLUTATHIONE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GSTA1_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–222； UniProt 1–222 Author chain B； PDBConstruct 1–222； UniProt 1–222

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1f3a
Deposition date deposition_date	2000-06-01
Structure title title	CRYSTAL STRUCTURE OF MGSTA1-1 IN COMPLEX WITH GSH
Keywords keywords	Glutathione S-Transferase, Glutathione, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1f3a__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

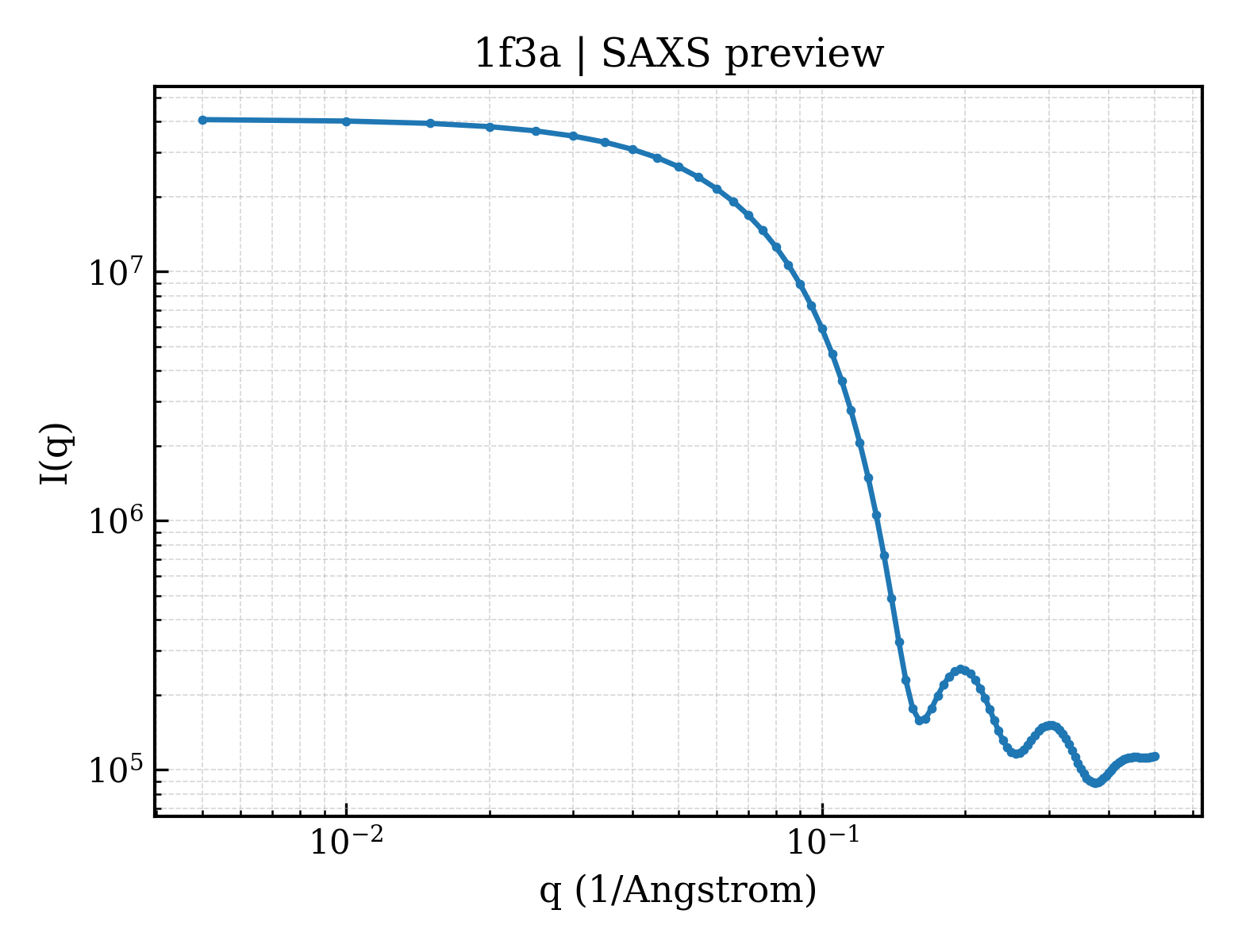

1f3a__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

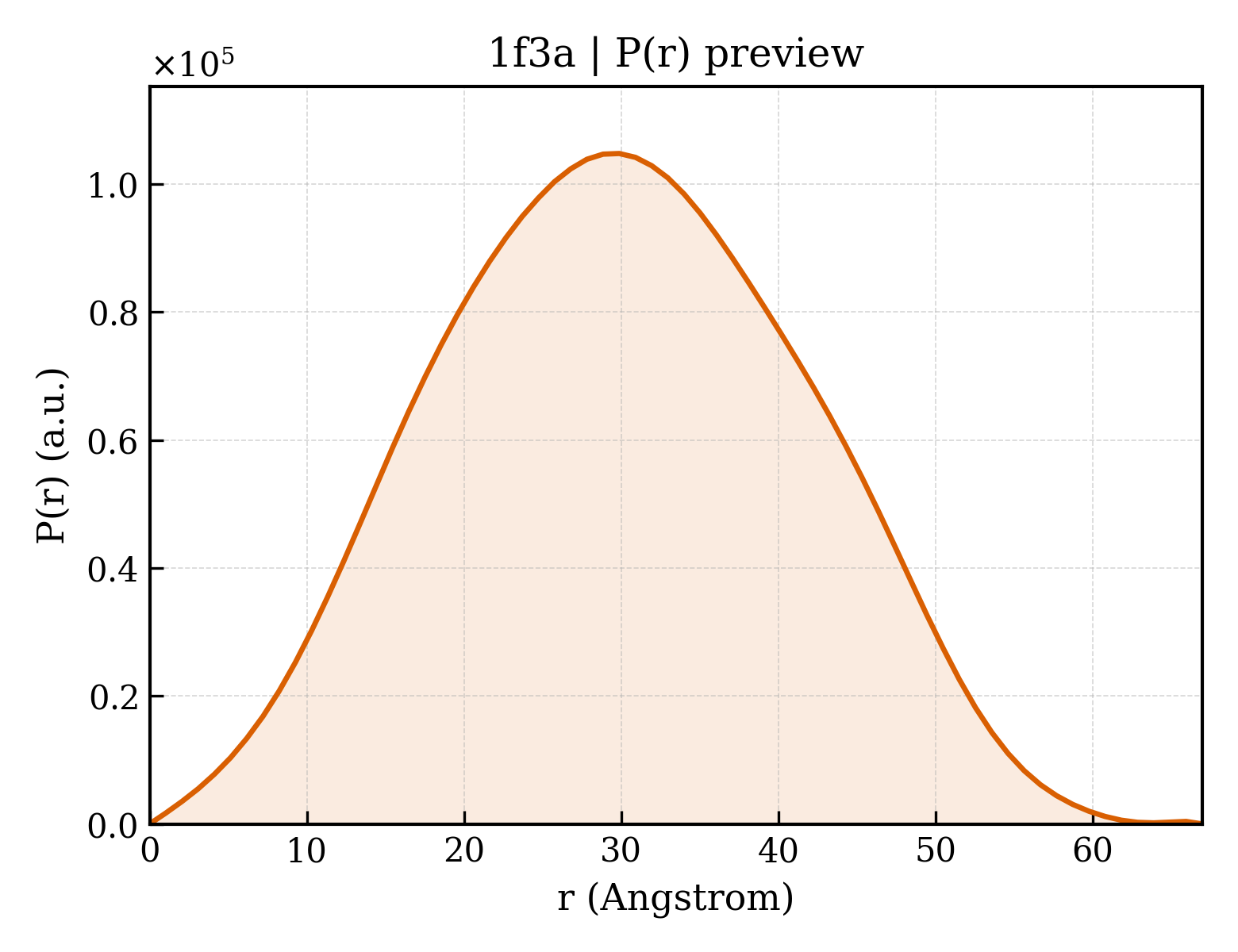

1f3a__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.87 Å
Rg (electron density)	21.74 Å
Total Rg	22.67 Å
Atom count	3599
Residues	442
Excluded volume	65046 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1f3a__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	GLUTATHIONE S-TRANSFERASE YA CHAIN
Molecular weight formula_weight	25514.8 kDa
EC 编号 ec_number	2.5.1.18
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4049

AGKPVLHYFNARGRMECIRWLLAAAGVEFEEKFIQSPEDLEKLKKDGNLMFDQVPMVEIDGMKLAQTRAILNYIATKYDLYGKDMKERALIDMYSEGILDLTEMIGQLVLCPPDQREAKTALAKDRTKNRYLPAFEKVLKSHGQDYLVGNRLTRVDIHLLEVLLYVEEFDASLLTPFPLLKAFKSRISSLPNVKKFLQPGSQRKPPMDAKQIQEARKAFKIQ

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	GLUTATHIONE
Molecular weight formula_weight	307.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	450

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1f3aa1
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.1 — Glutathione S-transferase (GST), C-terminal domain

Domain ID domain_id	d1f3aa2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.5 — Glutathione S-transferase (GST), N-terminal domain

Domain ID domain_id	d1f3ab1
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.1 — Glutathione S-transferase (GST), C-terminal domain

Domain ID domain_id	d1f3ab2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.5 — Glutathione S-transferase (GST), N-terminal domain

CATH v4.4 (4 domains)

Domain ID domain_id	1f3aA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	1f3aA02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1f3aB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	1f3aB02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	99.303 Å
Unit-cell length b length_b	93.637 Å
Unit-cell length c length_c	52.217 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	91.80 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.1910
R_work r_work	0.1910
R_free r_free	0.2480
