1f54
SOLUTION STRUCTURE OF THE APO N-TERMINAL DOMAIN OF YEAST CALMODULIN

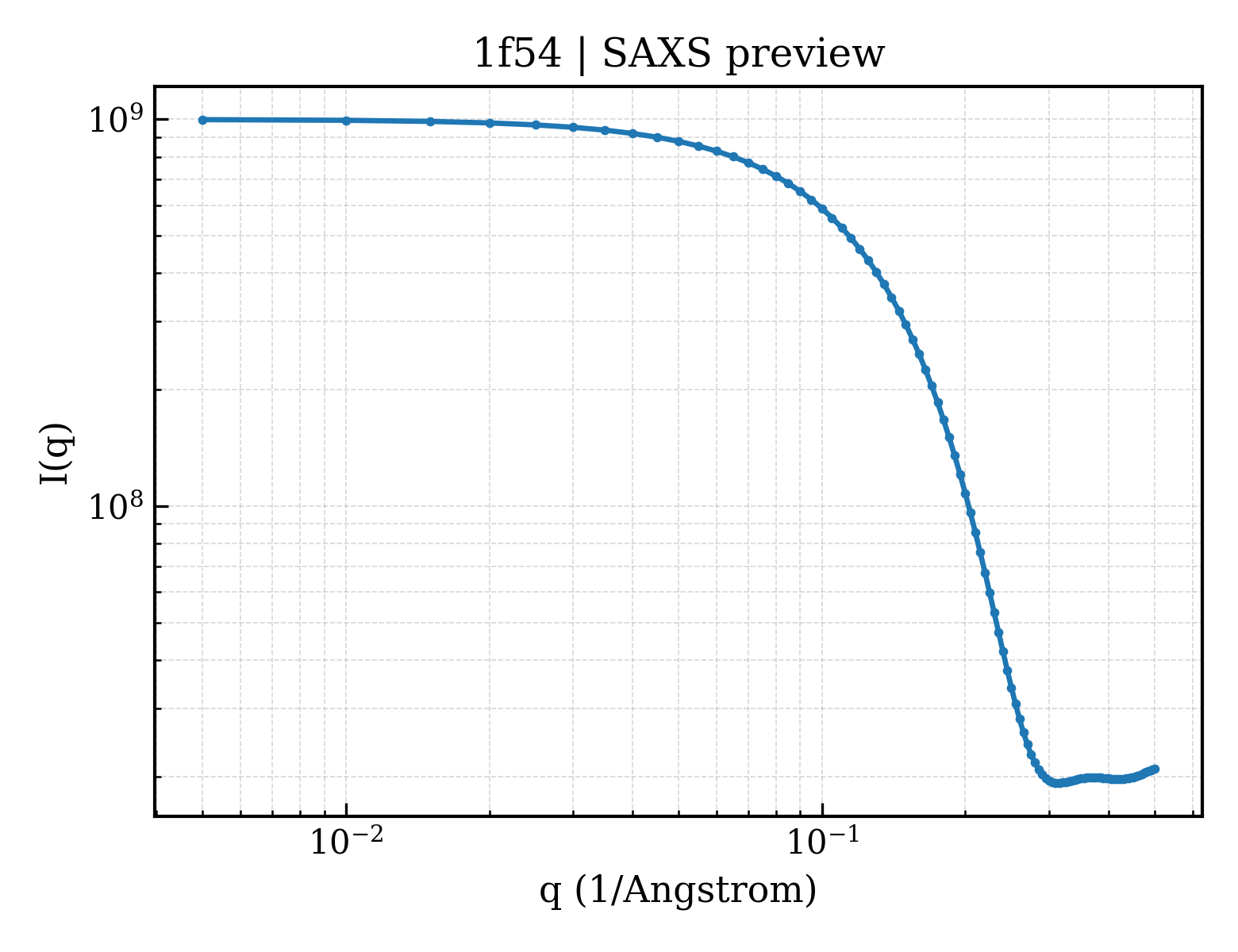

SAXS Profile

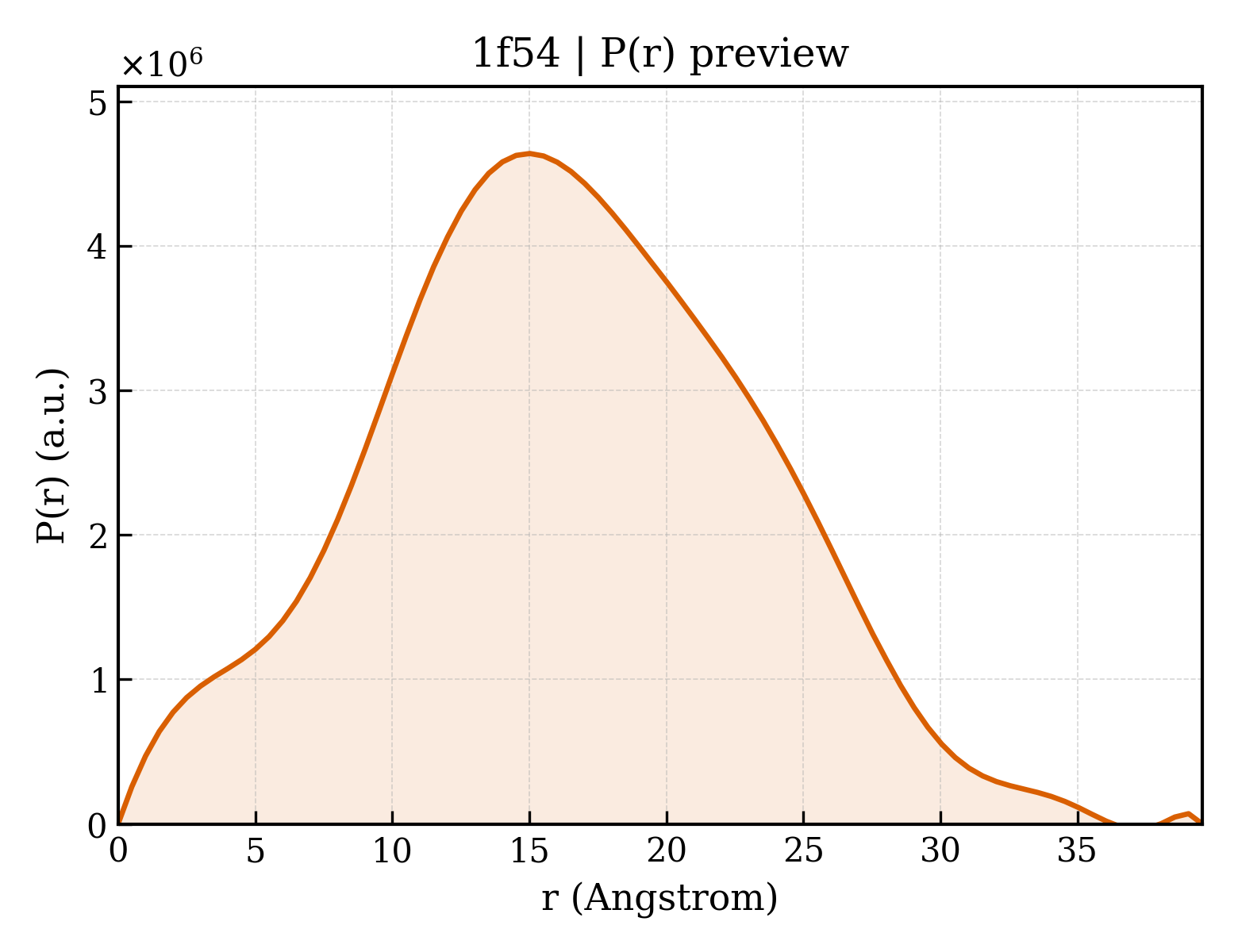

P(r) Distribution
1. Structure Basics
| entry_id | 1f54 |
| deposition_date | 2000-06-13 |
| title | SOLUTION STRUCTURE OF THE APO N-TERMINAL DOMAIN OF YEAST CALMODULIN |
| keywords | EF-hand, helix-loop-helix, TRANSPORT PROTEIN; TRANSPORT PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.56 Å |
| rg_electron | 11.96 Å |
| i0 | 999469000.00 |
| molecular_weight | 255910.0 kDa |
| excluded_volume | 314610 ų |
| envelope_volume | 19560 ų |
| shell_volume | 12029 ų |
| envelope_diameter | 45.4 Å |
| shell_rg | 19.67 Å |
| envelope_rg | 14.22 Å |
| shape_rg | 11.95 Å |
| total_rg | 12.08 Å |
| total_atoms | 35070 |
| n_residues | 2310 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 39.5 Å |
| rg_real | 12.49 Å |
| rg_real_error | 0.24 Å |
| i0_real | 9.9950e+08 |
| i0_real_error | 1.1210e+07 |
| rg_reciprocal | 12.49 Å |
| i0_reciprocal | 999500000.0000 |
| total_estimate | 0.8040 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.0 Å |
| skewness | 0.072 |
| kurtosis | -0.340 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 89750.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.820; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.000 |
