1f8s

CRYSTAL STRUCTURE OF L-AMINO ACID OXIDASE FROM CALLOSELASMA RHODOSTOMA, COMPLEXED WITH THREE MOLECULES OF O-AMINOBENZOATE.

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

L-AMINO ACID OXIDASE

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-AMINOBENZOIC ACID × 6 FLAVIN-ADENINE DINUCLEOTIDE × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-AMINOBENZOIC ACID × 6 FLAVIN-ADENINE DINUCLEOTIDE × 2 water × 2	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 2	2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-AMINOBENZOIC ACID × 6 FLAVIN-ADENINE DINUCLEOTIDE × 2 water × 2	Consistent with protein count
4	Protein homooligomer	Homooligomer	Protein 2	2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-AMINOBENZOIC ACID × 6 FLAVIN-ADENINE DINUCLEOTIDE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	OXLA_AGKRH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–498； UniProt 19–516 Author chain B； PDBConstruct 1–498； UniProt 19–516 Author chain C； PDBConstruct 1–498； UniProt 19–516 Author chain D； PDBConstruct 1–498； UniProt 19–516 Author chain E； PDBConstruct 1–498； UniProt 19–516 Author chain F； PDBConstruct 1–498； UniProt 19–516 Author chain G； PDBConstruct 1–498； UniProt 19–516 Author chain H； PDBConstruct 1–498； UniProt 19–516

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1f8s
Deposition date deposition_date	2000-07-04
Structure title title	CRYSTAL STRUCTURE OF L-AMINO ACID OXIDASE FROM CALLOSELASMA RHODOSTOMA, COMPLEXED WITH THREE MOLECULES OF O-AMINOBENZOATE.
Keywords keywords	;FLAVOENZYME, OXIDASE, ENANTIOMERIC SPECIFICITY, o-AMINOBENZOATE, ACTIVE SITE FUNNEL, HELICAL DOMAIN, FAD-BINDING DOMAIN, OXIDOREDUCTASE ;; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1f8s__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

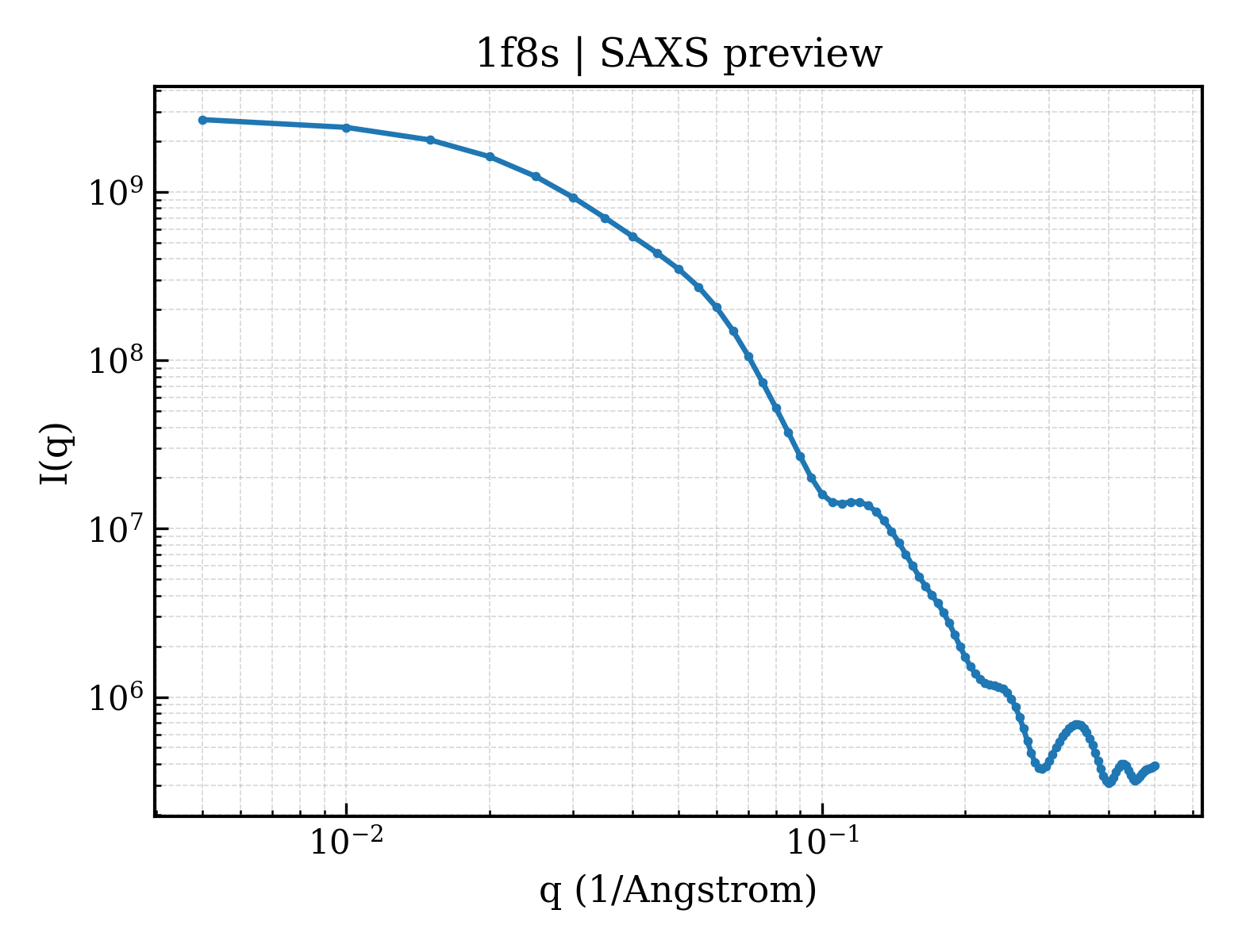

1f8s__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

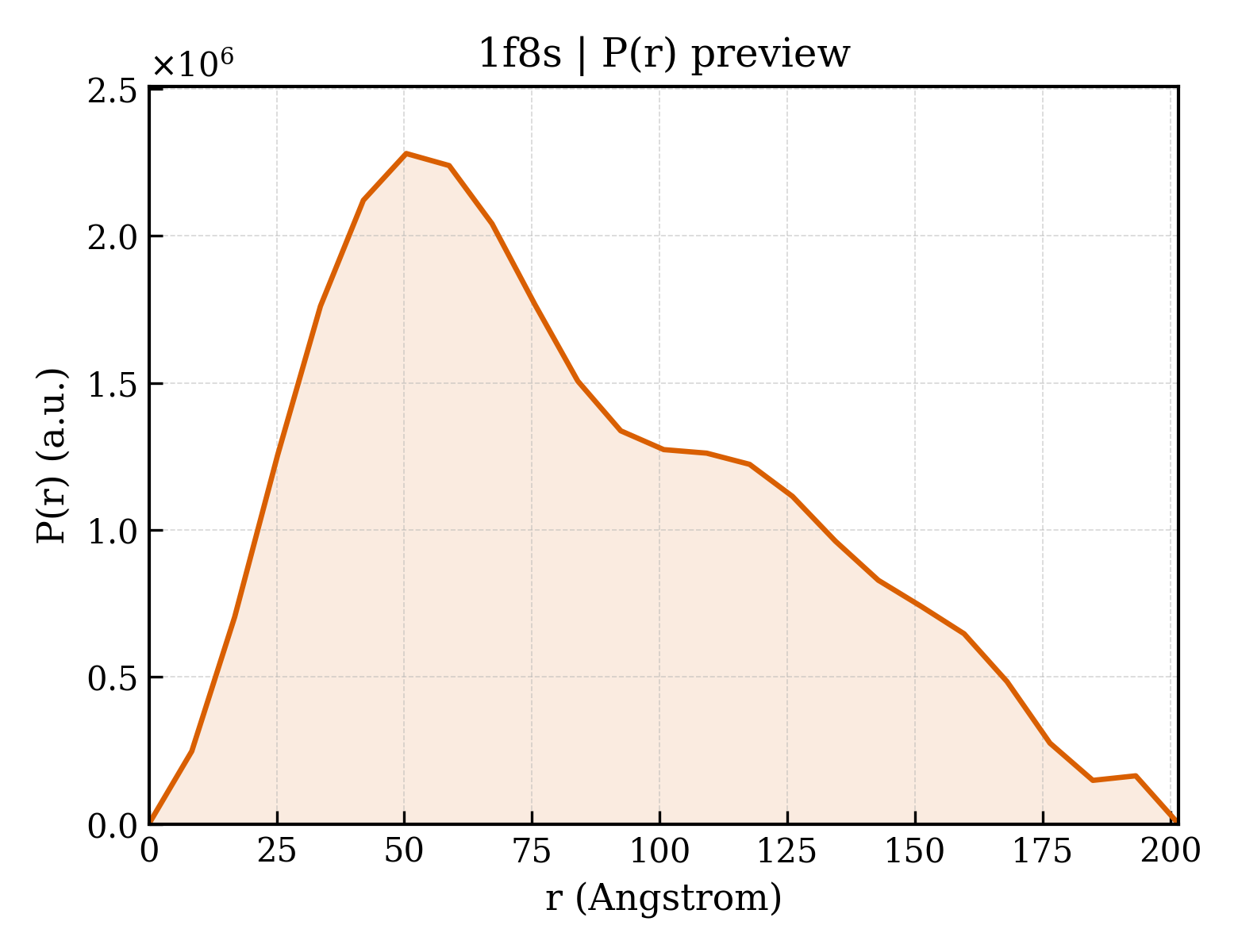

1f8s__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.44 Å
Rg (electron density)	28.25 Å
Total Rg	29.19 Å
Atom count	7890
Residues	964
Excluded volume	139840 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1f8s__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1f8s__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1f8s__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1f8s__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	L-AMINO ACID OXIDASE
Molecular weight formula_weight	56299.3 kDa
EC 编号 ec_number	1.4.3.2
Source method src_method	nat
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	34018

ADDRNPLAECFQENDYEEFLEIARNGLKATSNPKHVVIVGAGMAGLSAAYVLAGAGHQVTVLEASERPGGRVRTYRNEEAGWYANLGPMRLPEKHRIVREYIRKFDLRLNEFSQENDNAWYFIKNIRKKVGEVKKDPGLLKYPVKPSEAGKSAGQLYEESLGKVVEELKRTNCSYILNKYDTYSTKEYLIKEGDLSPGAVDMIGDLLNEDSGYYVSFIESLKHDDIFAYEKRFDEIVDGMDKLPTAMYRDIQDKVHFNAQVIKIQQNDQKVTVVYETLSKETPSVTADYVIVCTTSRAVRLIKFNPPLLPKKAHALRSVHYRSGTKIFLTCTTKFWEDDGIHGGKSTTDLPSRFIYYPNHNFTNGVGVIIAYGIGDDANFFQALDFKDCADIVFNDLSLIHQLPKKDIQSFCYPSVIQKWSLDKYAMGGITTFTPYQFQHFSDPLTASQGRIYFAGEYTAQAHGWIDSTIKSGLRAARDVNLASENPSGIHLSNDNEL

Entity 2 Entity 2 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	8

Entity 3 Entity 3 non-polymer

Description description	2-AMINOBENZOIC ACID
Molecular weight formula_weight	137.1 kDa
Source method src_method	syn
Copy count entity_count	24

Entity 4 Entity 4 non-polymer

Description description	FLAVIN-ADENINE DINUCLEOTIDE
Molecular weight formula_weight	785.5 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	2378

▼

6. Fold Classification (SCOP + CATH) 40 domains

SCOP 2.08 (16 domains)

Domain ID domain_id	d1f8sa1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

Domain ID domain_id	d1f8sa2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.16 — FAD-linked reductases, C-terminal domain
Superfamily Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
Family Family family	d.16.1.5 — L-aminoacid/polyamine oxidase

Domain ID domain_id	d1f8sb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

Domain ID domain_id	d1f8sb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.16 — FAD-linked reductases, C-terminal domain
Superfamily Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
Family Family family	d.16.1.5 — L-aminoacid/polyamine oxidase

Domain ID domain_id	d1f8sc1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

Domain ID domain_id	d1f8sc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.16 — FAD-linked reductases, C-terminal domain
Superfamily Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
Family Family family	d.16.1.5 — L-aminoacid/polyamine oxidase

Domain ID domain_id	d1f8sd1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

Domain ID domain_id	d1f8sd2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.16 — FAD-linked reductases, C-terminal domain
Superfamily Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
Family Family family	d.16.1.5 — L-aminoacid/polyamine oxidase

Domain ID domain_id	d1f8se1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

Domain ID domain_id	d1f8se2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.16 — FAD-linked reductases, C-terminal domain
Superfamily Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
Family Family family	d.16.1.5 — L-aminoacid/polyamine oxidase

Domain ID domain_id	d1f8sf1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

Domain ID domain_id	d1f8sf2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.16 — FAD-linked reductases, C-terminal domain
Superfamily Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
Family Family family	d.16.1.5 — L-aminoacid/polyamine oxidase

Domain ID domain_id	d1f8sg1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

Domain ID domain_id	d1f8sg2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.16 — FAD-linked reductases, C-terminal domain
Superfamily Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
Family Family family	d.16.1.5 — L-aminoacid/polyamine oxidase

Domain ID domain_id	d1f8sh1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

Domain ID domain_id	d1f8sh2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.16 — FAD-linked reductases, C-terminal domain
Superfamily Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
Family Family family	d.16.1.5 — L-aminoacid/polyamine oxidase

CATH v4.4 (24 domains)

Domain ID domain_id	1f8sA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	660 — Polyamine Oxidase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1f8sA02
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1f8sA03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	405 — Guanine Nucleotide Dissociation Inhibitor; domain 1
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 1

Domain ID domain_id	1f8sB01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	660 — Polyamine Oxidase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1f8sB02
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1f8sB03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	405 — Guanine Nucleotide Dissociation Inhibitor; domain 1
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 1

Domain ID domain_id	1f8sC01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	660 — Polyamine Oxidase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1f8sC02
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1f8sC03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	405 — Guanine Nucleotide Dissociation Inhibitor; domain 1
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 1

Domain ID domain_id	1f8sD01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	660 — Polyamine Oxidase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1f8sD02
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1f8sD03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	405 — Guanine Nucleotide Dissociation Inhibitor; domain 1
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 1

Domain ID domain_id	1f8sE01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	660 — Polyamine Oxidase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1f8sE02
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1f8sE03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	405 — Guanine Nucleotide Dissociation Inhibitor; domain 1
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 1

Domain ID domain_id	1f8sF01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	660 — Polyamine Oxidase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1f8sF02
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1f8sF03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	405 — Guanine Nucleotide Dissociation Inhibitor; domain 1
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 1

Domain ID domain_id	1f8sG01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	660 — Polyamine Oxidase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1f8sG02
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1f8sG03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	405 — Guanine Nucleotide Dissociation Inhibitor; domain 1
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 1

Domain ID domain_id	1f8sH01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	660 — Polyamine Oxidase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1f8sH02
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1f8sH03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	405 — Guanine Nucleotide Dissociation Inhibitor; domain 1
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 1

▶

Unit-cell length a length_a	77.553 Å
Unit-cell length b length_b	137.180 Å
Unit-cell length c length_c	212.634 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	105.63 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	500.000 Å
R factor r_factor	—
R_work r_work	0.2050
R_free r_free	0.2250

CRYSTAL STRUCTURE OF L-AMINO ACID OXIDASE FROM CALLOSELASMA RHODOSTOMA, COMPLEXED WITH THREE MOLECULES OF O-AMINOBENZOATE.

1. Protein Identity and Related Structures Protein Identity & Related Structures

L-AMINO ACID OXIDASE

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1f8s__assembly_1__model_1

1f8s__assembly_1__model_1 | I(q)

1f8s__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

6. Fold Classification (SCOP + CATH) 40 domains

SCOP 2.08 (16 domains)

CATH v4.4 (24 domains)

7. Citations (1)

CRYSTAL STRUCTURE OF L-AMINO ACID OXIDASE FROM CALLOSELASMA RHODOSTOMA, COMPLEXED WITH THREE MOLECULES OF O-AMINOBENZOATE.

1. Protein Identity and Related Structures Protein Identity & Related Structures

L-AMINO ACID OXIDASE

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1f8s__assembly_1__model_1

1f8s__assembly_1__model_1 | I(q)

1f8s__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

6. Fold Classification (SCOP + CATH) 40 domains

SCOP 2.08 (16 domains)

CATH v4.4 (24 domains)

7. Citations (1)
