SAXSdb — 1f99

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

R-PHYCOCYANIN

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	R-PHYCOCYANIN × 6 （P59859） PHYCOCYANOBILIN × 12 PHYCOERYTHROBILIN × 6 water × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PHCA_POLUR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–162； UniProt 1–162 Author chain K； PDBConstruct 1–162； UniProt 1–162 Author chain M； PDBConstruct 1–162； UniProt 1–162

R-PHYCOCYANIN

OrganismNot specified

UniProt P59859

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	R-PHYCOCYANIN × 6 （P59858） PHYCOCYANOBILIN × 12 PHYCOERYTHROBILIN × 6 water × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPCB_POLUR
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–172； UniProt 1–172 Author chain L； PDBConstruct 1–172； UniProt 1–172 Author chain N； PDBConstruct 1–172； UniProt 1–172

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1f99
Deposition date deposition_date	2000-07-09
Structure title title	CRYSTAL STRUCTURE OF R-PHYCOCYANIN FROM POLYSIPHONIA AT 2.4 A RESOLUTION
Keywords keywords	LIGHT HARVESTING PROTEIN, R-PHYCOCYANIN, photosynthesis, electron transport; PHOTOSYNTHESIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1f99__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1f99__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

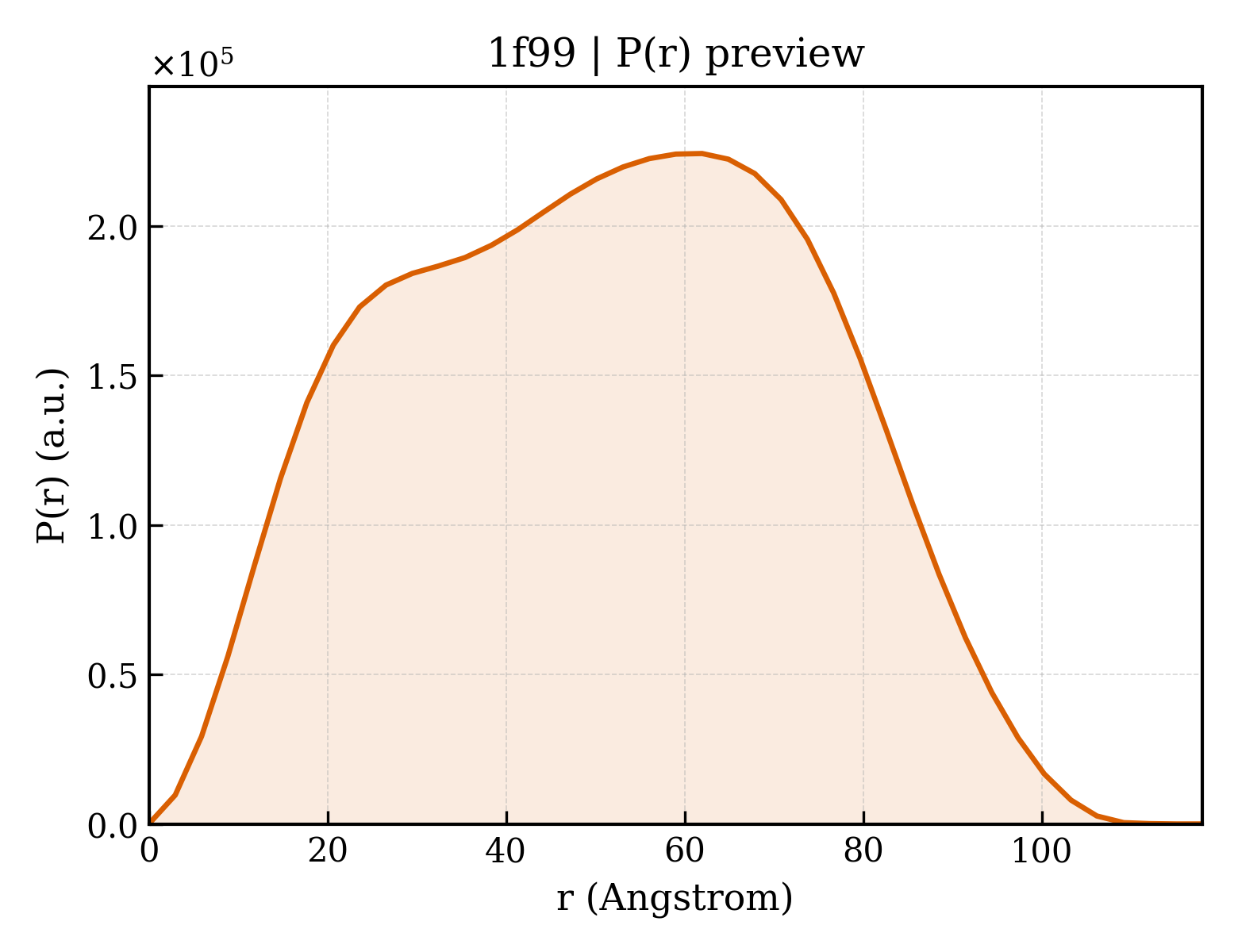

1f99__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	41.72 Å
Rg (electron density)	41.02 Å
Total Rg	41.40 Å
Atom count	15738
Residues	2004
Excluded volume	280450 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1f99__assembly_1__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	R-PHYCOCYANIN
Molecular weight formula_weight	17584.7 kDa
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,K,M
Atom count atom_count	8209

MKTPLTEAIAAADSQGRFLSNTELQVVNGRYNRATSSLEAAKALTANADRLISGAANAVYSKFPYTTQMPGPNYSSTAIGKAKCARDIGYYLRMVTYCLVVGGTGPMDDYLVAGLEEINRTFELSPSWYIEALKYIKNNHGLSGDVANEANTYIDYAINTLS

Entity 2 Entity 2 polymer

Description description	R-PHYCOCYANIN
Molecular weight formula_weight	18015.5 kDa
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,L,N

MLDAFAKVVAQADARGEFLSNTQIDALLAIVSEGNKRLDVVNKITNNASAIVTNAARALFAEQPQLISPGGNAYTSRRMAACLRDMEIVLRYVSYAMIAGDASVLDDRCLNGLRETYQALGTPGASVAVAIQKMKDAALALVNDTTGTPAGDCASLVAEIATYFDRAAAAVA

Entity 3 Entity 3 non-polymer

Description description	PHYCOCYANOBILIN
Molecular weight formula_weight	588.7 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 non-polymer

Description description	PHYCOERYTHROBILIN
Molecular weight formula_weight	588.7 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	340

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1f99a_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1f99b_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1f99k_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1f99l_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1f99m_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

Domain ID domain_id	d1f99n_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.3 — Phycocyanin-like phycobilisome proteins

CATH v4.4 (6 domains)

Domain ID domain_id	1f99A00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1f99B00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1f99K00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1f99L00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1f99M00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

Domain ID domain_id	1f99N00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	20 — Phycocyanins

▶

Unit-cell length a length_a	135.100 Å
Unit-cell length b length_b	135.100 Å
Unit-cell length c length_c	210.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.1890
R_work r_work	0.1890
R_free r_free	0.2390

CRYSTAL STRUCTURE OF R-PHYCOCYANIN FROM POLYSIPHONIA AT 2.4 A RESOLUTION
